HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
خانه محصولاتکامیون باکس یخچال دار

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck
SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

تصویر بزرگ :  SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: ISO, CCC,SGS,BV
Model Number: CLW5084cb

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل: 30-35 روز پس از دریافت سپرده
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
محدوده دما: -18 درجه تا -5 درجه مواد وانت: الیاف شیشه
Insulating Layer: 80mm Polyurethane Foam Usage: Vegetable, Meat, Ice Cream, Fish Frozentransport
Truck Refrigeration Unit: SA Brand Thermo King, Carrier, Chinese Brand زمان تحویل: 25 روز
گارانتی: 1 سال لوگو: طبق درخواست مشتری
برجسته کردن:

SINOTRUK HOWO Fruit Transport Truck,Thermo King Refrigerator Fruit Transport Truck,SINOTRUK HOWO Meat Transport Truck

,

Thermo King Refrigerator Fruit Transport Truck

,

SINOTRUK HOWO Meat Transport Truck

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck



Product Description



1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.





Product Specification

Condition

New condition/Left hand drive/4x2/with A/C

Chassis

Brand

HOWO

Curb weight(kg)

2740 kg

Payload(kg)

5000kg

Wheelbase(mm)

3360 mm

Dimensions(mm)

5995*2500*3250 mm for 5Tons

6980X2500X3250 mm for 7Tons

Front/Rear axle loading(kg)

2400/4200 kg for 5Tons;

Front/Rear overhang(mm)

1160/1545 mm

Wheel track (front/rear) (mm)

1605/1555 mm

Approach/Departure angle(°)

18/18

Max. driving speed(km/h)

90 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Hydraulic oil brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

6pcs with one spare tire

Specifications

7.00R16 for 5Tons;

Transmission

Manual type, WLY6T46,6 Forwards and 1 reverse

Engine

Brand

Yunnei Engine

Model

YN4102QBZL

Fuel type

Diesel

Displacement(ml)

3760ml

Power(kw)

85 kw

Horsepower(HP)

116 HP

Maximum torque(N.m)

220 N.m

Maximum torque speed(rpm)

1700 rpm

Minimum fuel consumption under full load

224g/kW.h

Cylinder number

4 pcs

Emission standard

Euro III

Upper Refrigerated Box

Box of

1. Box Size of 5Tons: 4100*1740*1750 mm;

2. Box Material: glass epoxy in the surface; Foam in the middle .

3.Thickness of side ,top ,front ,rear 80mm;

4.Inside bottom: Aluminum pattern plate

Refrigerating System

1. Working temperature range:-18-0

2. Refrigerating unit brand and model:

USA brand Thermo King KV300 for 5Tons;

Remarks

Color is optional

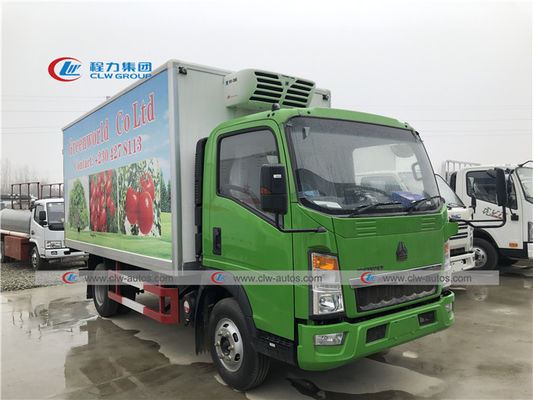

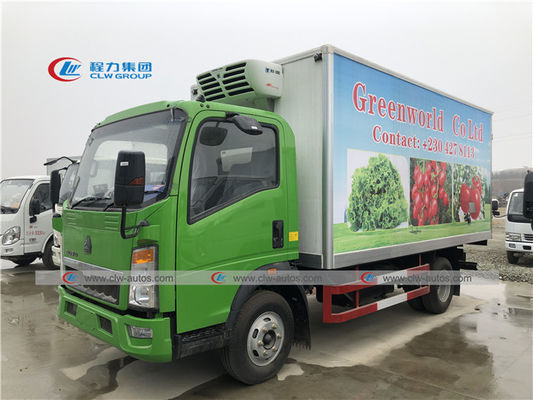

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck 0SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck 1SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck 2

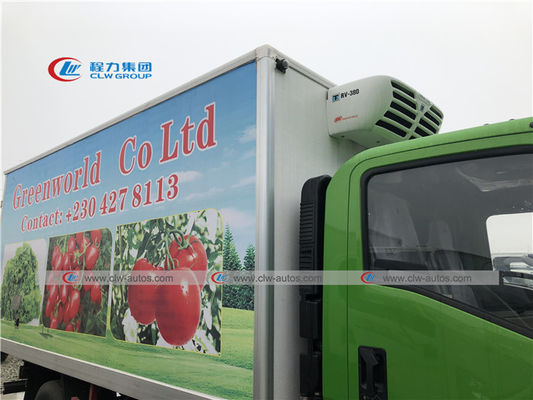

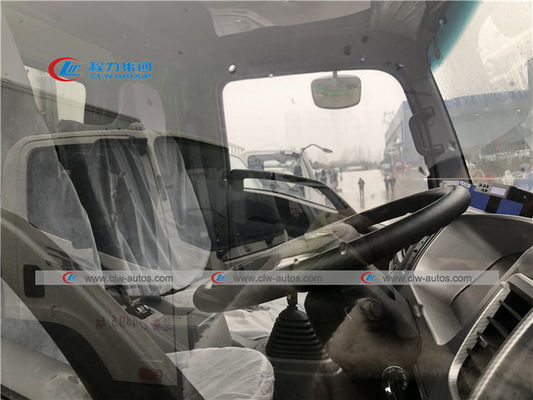

Details for refrigerated van truck



SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck 3



Optional parts





SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck 4



Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Product Show
