HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
خانه محصولاتکامیون باکس یخچال دار

Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

تصویر بزرگ :  Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: ISO, CCC, SGS, BV, ASME
شماره مدل: CLW5056A

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: برهنه، موم شده، کشتی فله، Ro-Ro
زمان تحویل: 30-35 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
مواد وانت: صفحه رنگی داخل، FRP خارج از ون، فوم پلی اورتان وسط ضخامت خارجی وانت: 1.2mm 1.5mm 1.8mm 2.0mm
ضخامت بین بستر ون: 80mm 100mm 120mm ضخامت داخلی وان: 1.2mm 1.5mm 1.8mm 2.0mm
وزن بارگیری: 6-8 تن مدل یخچال: Thermo King، Carrier، Hanxue، Huatai، Hana
برند شاسی: ایسوزو، دانگ فنگ، فوتون، هوو و غیره مدل محرک: 4x2/6x4/8x4; طبق اندازه ساختار فوق العاده
پایه چرخ: 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm Logo and Painting: As per customer's requsts
زمان تحویل: 30-35 روز کاری گارانتی: 1 سال
برجسته کردن:

Petrol Refrigerated Van Truck,1T Refrigerated Van Truck,Ratio Foton Refrigerated Box Truck

,

1T Refrigerated Van Truck

,

Ratio Foton Refrigerated Box Truck

High Quality Price Ratio Foton Mini 1ton Petrol Seafood and Fish Delivery Refrigerator Van Truck




Product Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 0


Product Specification

General Technical Parameters
Overall Dimension5200*2300*2450(mm)Gross Vehicle Weight3300(Kg)
Curb Weight2300(Kg)Loading Weight1000(Kg)
Chassis Specification
Chassis parametersChassis BrandFoton
CabinSingle, Left Hand Driving, with A/C
EngineModel4 Cylinders
Power112HP
Emission standardEURO 5
Displacement2.999L
Fuel typePetrol
Gearbox5 Forward & 1 Reverse Gear
Front and Rear Axle load2T/3T
Wheel base2600(mm)
Overhang( Front/Rear)1130/1505(mm)
Angle(Approach/departure)20/16(°)
Brake SystemAir brake
Steering GearPower Assistant
Tire6 Pieces with 1 Spare Tire
Maximum speed105(km/h)
Superstructure
VanBox size4100*2300*1800(mm)
MaterialFiberglass
Insulating Layer10cm Polyurethane Foam

Truck refrigeration unit

BrandFamous Chinese Brand
ModelBL300
Applicable temperature (ºC)-15~0
RemarksPart Optional: Ventilation slot
Hook
External power supply
Side door

Reference Photos

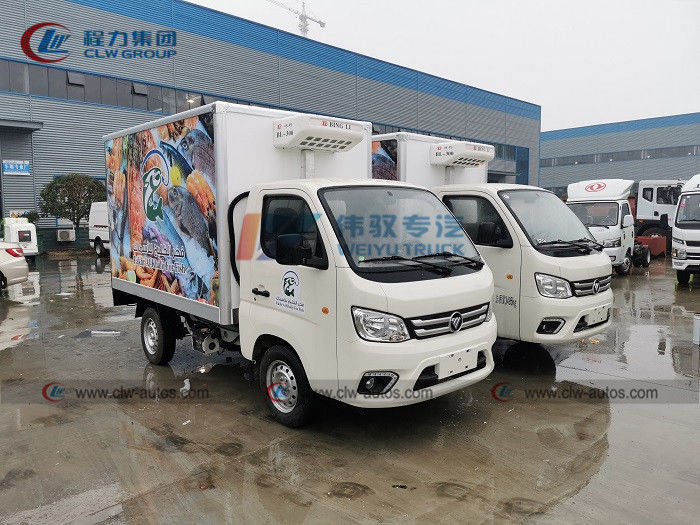

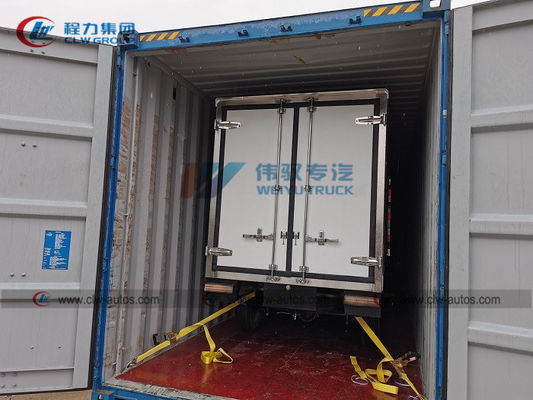

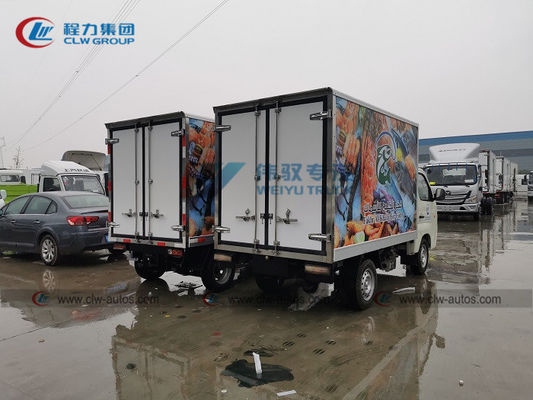

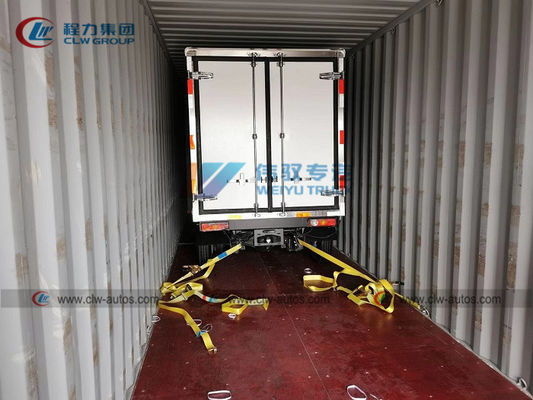

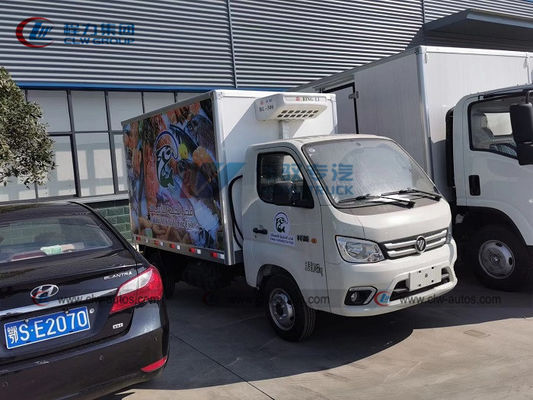

Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 1
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 2
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 3
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 4
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 5

Optional Parts
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 6

Different Capacities of Refrigerator Truck
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 7

Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ

Q1: What loading weight refrigerated truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
