HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
خانه محصولاتجرثقیل تلسکوپی سوار بر کامیون

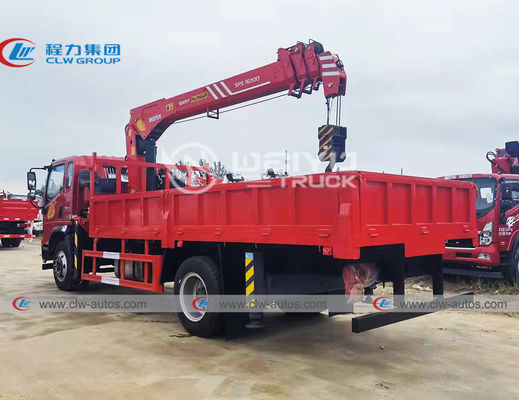

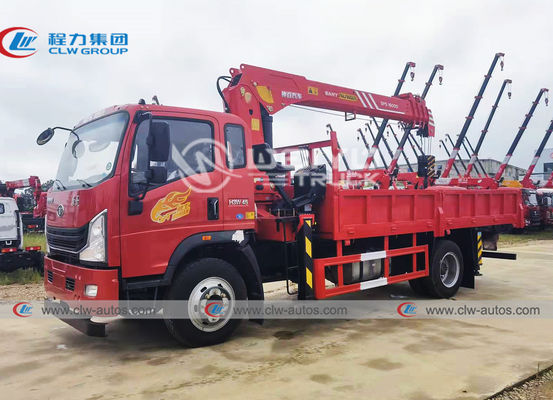

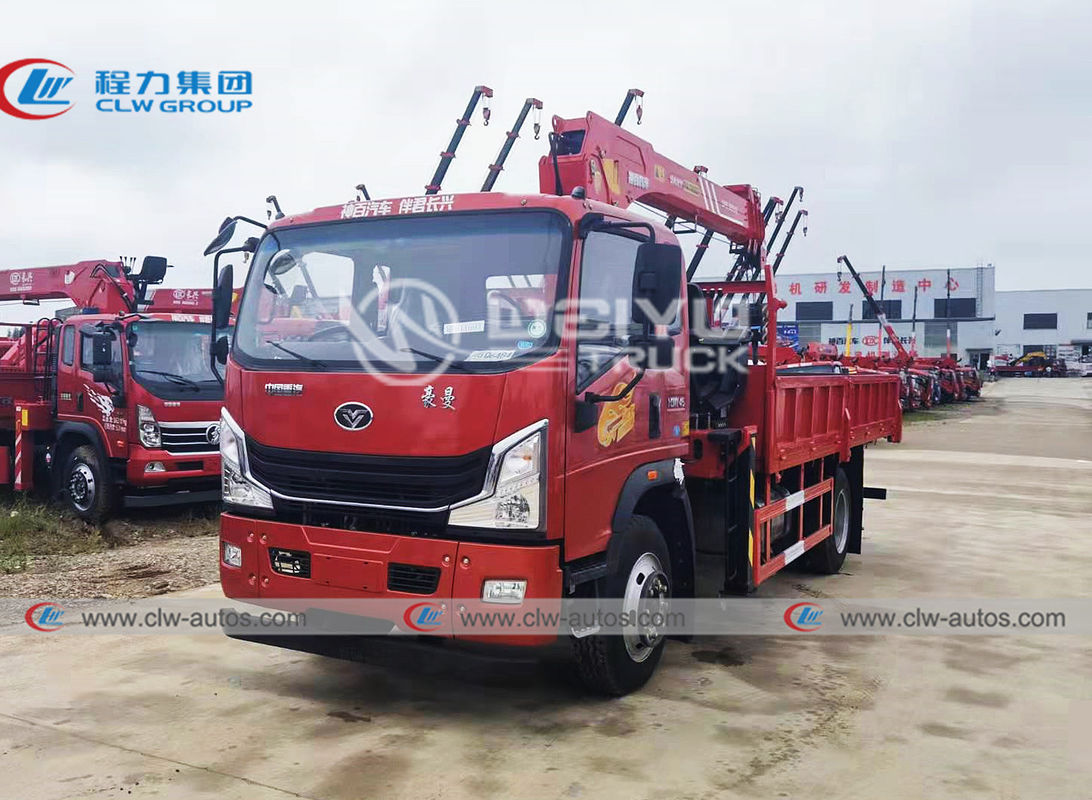

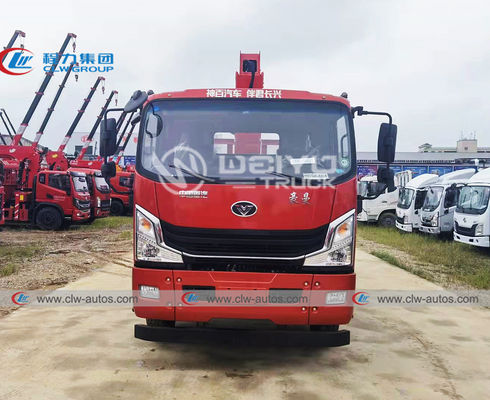

Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons

Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons
Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons

تصویر بزرگ :  Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: ISO, CCC
Model Number: CLW527UD

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: بسته برهنه با کشتی فله ارسال می شود
زمان تحویل: 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت: L/C، T/T، D/P، T/T، Western Union، MoneyGram، D/A
قابلیت ارائه: 300 واحد در ماه
توضیحات محصول جزئیات
برند کامیون: اختیاری Crane Brand: XCMG,SANY, PALFINGER,CLW For Option
نوع جرثقیل: کامیون جرثقیل تلسکوپی / بند انگشتی Loading Capacity: 5tons/6tons Cargo Truck Mounted Crane
موتور: 190 اسب بخار مدل رانندگی: LHD، RHD
Max. Crane Capacity: 6tons 7tons Cargo Truck Mounted Crane محور: 2
حداکثر ارتفاع بلند کردن: 27.2 متر برنامه: حمل و نقل بیل مکانیکی و سایر ماشین آلات
برجسته کردن:

7Tons Truck Mounted Telescopic Crane,SANYI Truck Mounted Telescopic Crane

,

SANYI Truck Mounted Telescopic Crane

Sinotruk Homan SANYI 5,6,7 Tons Truck Mounted Telescopic Crane

Product description

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.



---- Advanced development means make sure that the design is very reliable.



---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space



---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



Specification



Sinotruk Homan 6-wheel Truck with 6Tons SANY Crane
General Chassis brand Homan
Overall Dimension 7750 * 2490 * 3550 mm
GVW 14060kg
Cab Cabin type Half of row cabin,3 persons with one sleeper
Air conditioner Optional
Engine Engine Model WEICHAI
Engine Power 190HP (140KW)
Displacement 4088 ml
Emission standard Euro 4
Chassis Wheelbase 4200 mm
Driving Type 4X2,LHD&RHD
Max.speed 89km/h
Gear box FAST 8-peed forward and 1 reverse
Tire 8.25R20,6 pcs with one spare
Superstructure Cargo Box Dimension 4720*2300*550 mm
Crane Type Telescopic boom crane
Crane brand SANY
Max Lifting Capacity 6300 kg
Slewing Angle 360° All rotation
Crane Weight 3000 kg
Installation Space 400 mm
Control panel English or Your language
Optional

1-knuckle boom crane/folding arm crane;

2-Hydraulic tipper box;

3-Customized box thickness;

4-Remote control box



Our Factory

Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons 0

Sinotruk Homan SANYI Truck Mounted Telescopic Crane 5 6 7 Tons 1

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
