Japanese Isuzu Left-Hand Drive Fvz 6*4 10tons Knuckle Arm Straight Telescopic Boom Crane Truck
Product Description
1. Truck mounted crane(also called Truck with Crane, Truck Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
2. Truck mounted crane can be divided into various types as follows:
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Truck mounted crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Truck mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons 50tons 60tons 80tons; 100tons 120tons 150tons Truck mounted crane;
4) According to crane type,there are telescopic and knuckle Truck mounted crane.
Feature
- Crane: Palfinger Brand
- Landing leg: Hydraulic control, top quality, easy for operation.
- Storage box: High quality carbon steel Q235
- Truck chassis: China famous brand
Product Specification
| Condition |
New condition/Left hand drive/6X4 |
| Chassis |
Brand |
ISUZU |
| Curb weight(kg) |
8590 kg |
| Wheelbase(mm) |
4600+1350 mm |
| Dimensions(mm) |
10200*2500*3850 mm |
| Overhang (front/rear) (mm) |
1500/2250 mm |
| Approach/Departure angle(°) |
14/12 |
| Axle Load(kg) |
9000/13000/13000 kg |
| Max. driving speed(km/h) |
80 km/h |
| Clutch |
Reinforced diaphragm clutch |
| Brakes |
Hydraulic oil brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Number |
6pcs with one spare tire |
| Specifications |
11.00R20 |
| Transmission |
9 Forwards and 2 Reverses |
| Cabin |
It can accommodate three people, With Air conditioner |
| Engine |
Brand |
ISUZU |
| Displacement(ml) |
7800 |
| Power(kw)/Horsepower/(HP) |
300 HP |
| Emission standard |
Euro V |
| Crane |
Boom Type |
Straight type |
| Material |
Carbon Steel |
| Brand |
Palfinger |
| Max. Lifting Weight(tons) |
16 tons |
| Extendable boom section |
5 |
| Working Platform |
360°turning(left or right), H-shape legs 360° |

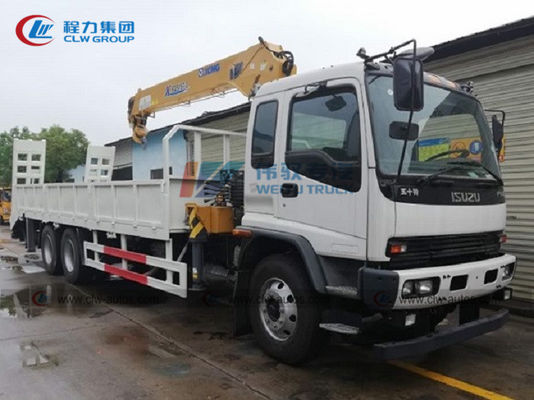

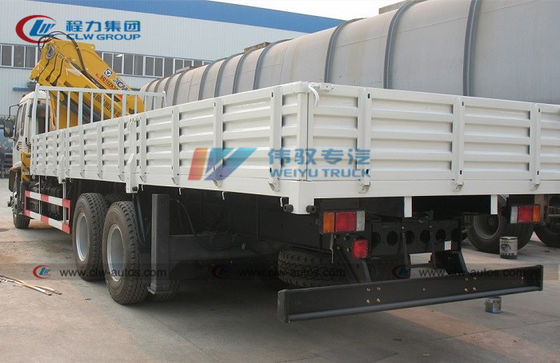

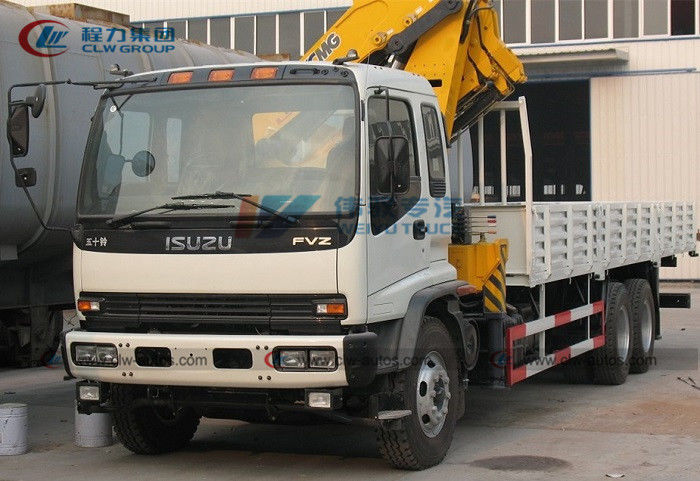

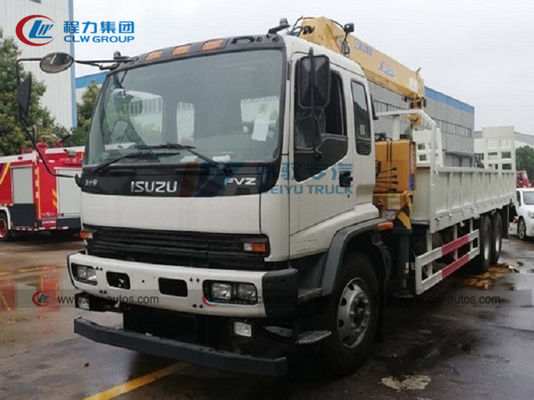

Reference Photos
We supply package solution for crane trucks, and provide lots of crane brands for your choice
Working Situation
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
