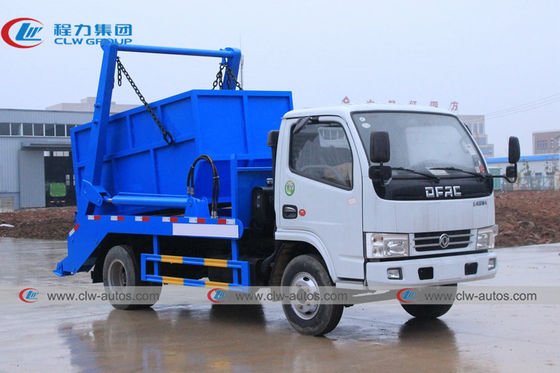

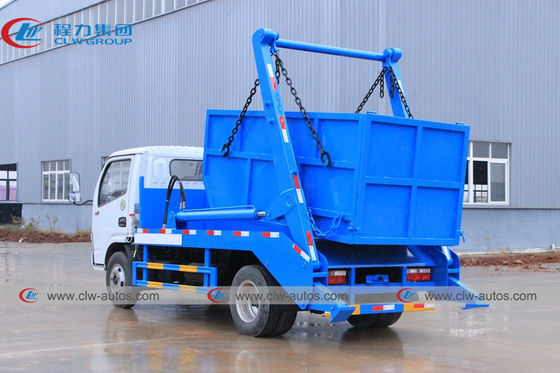

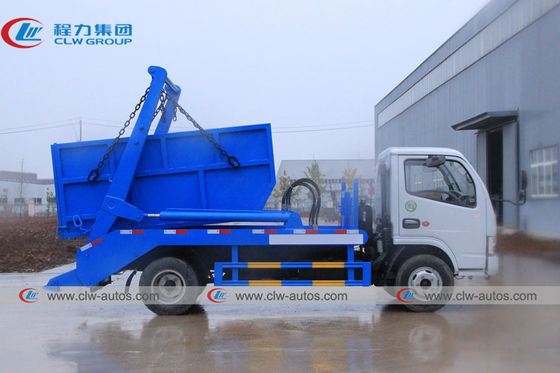

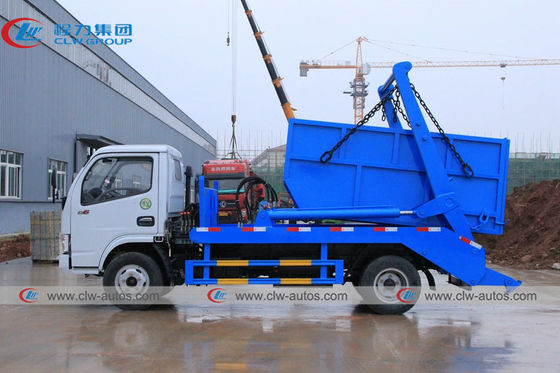

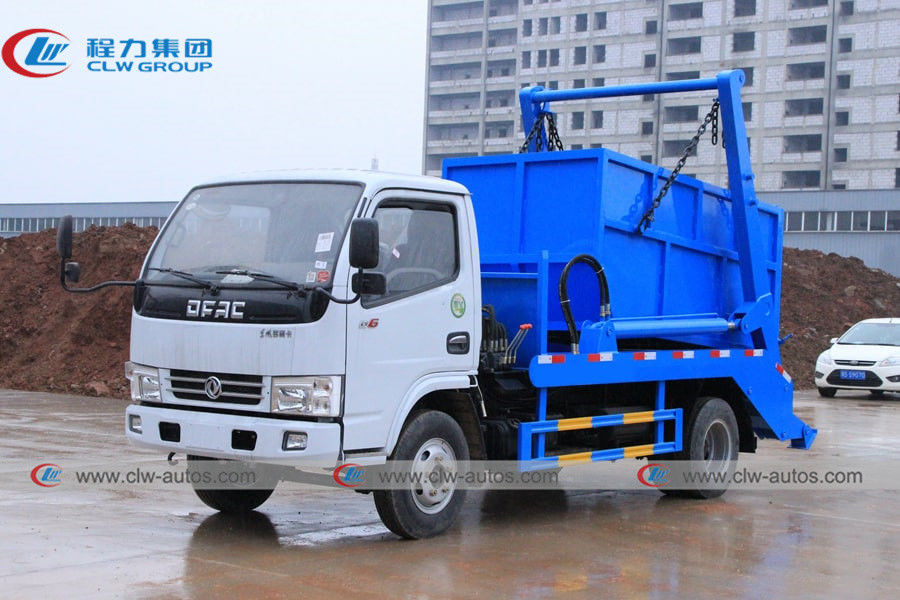

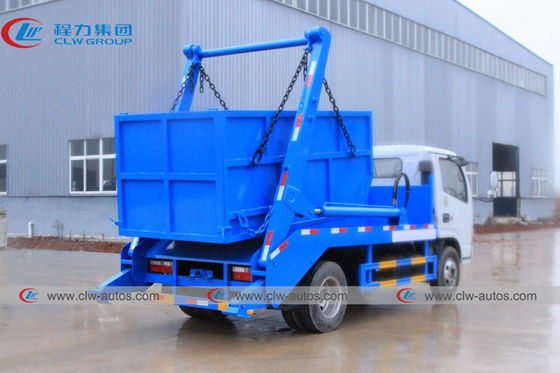

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain

تصویر بزرگ : Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC ISO
Model Number:	CLW5717

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	15840~24520 usd/unit
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Driving model:	LHD,Left Hand Drive,RHD,Right hand drive Skip Loader Garbage Truck	Chassis Brand:	HOWO, Dongfeng, Foton, Shacman,ISUZU Skip Loader Garbage Truck
Fuel Type:	Diesel engine Skip Loader Garbage Truck	Material:	carbon steel Skip Loader Garbage Truck
Volume:	4000~5000L,4m3 5m3 swing arm Garbage Truck	خدمات پس از فروش ارائه شده است:	پشتیبانی شخص ثالث در خارج از کشور در دسترس است، پشتیبانی آنلاین، پشتیبانی فنی ویدیویی، قطعات یدکی را
Truck type:	roll arm garbage truck,swing arm garbage truck,Skip Loader Garbage Truck	نام:	کامیون زباله‌بر با بارگیر قلابی
Loading Capacity:	8tons, 10tons, 9tons, 8t, 9t, 10t Skip Loader Garbage Truck	Wheel Base:	4200mm Skip Loader Garbage Truck
horsepower:	170hp 190hp Skip Loader Garbage Truck	Type:	Compactor, Rear Loader, Roll Off, carriage removable garbage truck, Rolling Cover Type
Drive wheel:	4x2, 6x4, others
برجسته کردن:	Self Loading Swing Arm Garbage Truck,Dongfeng Swing Arm Garbage Truck,4x2 Waste Removal Trucks , Dongfeng Swing Arm Garbage Truck , 4x2 Waste Removal Trucks

Dongfeng 4x2 4cbm Self Loading Swing Arm with Hanging Chain Garbage Truck

Description

Product Description
1. Swing Arm Garbage Truck ( garbage collecting truck, garbage transport truck), mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines and apply to transport household waste in residential area.

2. According to loading and unloading type, it is divided into the following categories:
1) dump garbage truck,
2) hook arm garbage truck,
3) compactor garbage truck,
4) bswing arm garbage truck,
5) self-loading garbage truck,
6) sealed type garbage truck.

Specification

Brand	Dongfeng Dolika
Engine Power & Transmission	Engine Model	YC4D140-20
	Engine Brand	Yuchai Diesel Engine Co., Ltd
	Fuel Type	Diesel
	Displacement / Power	4212ml / 103kw, 140HP
	Engine Type	Turbocharged inner cooled, water cooling, four cylinder inline.direct injection
	Rated Speed	2500rpm
	Max Torque	420N.m
	Max torque(N.m/rpm)	1600-1900rpm
	Emission Stand	Europe III
	Fuel tank capacity (L)	200
	Number of speeds,	6 Forward, 1 Reverse
Chassis	Chassis Type	EQ1080SJ8BDC
	Dimension (LxWxH)	5950x 2500 x 2900mm
	Chassis Weight(kg)	4100
	Wheelbase (mm)	3308
	Drive Type	4X2
	No. of Axles	2
	Cab seats	3 + 1 berth
	Max Speed(km/h)	90
	Tire	7.50R16 Radial tyre
	Tire No.'s	6+1 spare
	Track width F/R (mm)	1740/1610
	Chassis load (kg)	3310 / 4695
	Front/Rear suspension	1130/1810
	Appr/Dep Angle (°)	20/14
	Service brake type	Compressed air brake
	Parking brake type	Spring energy, compressed air operating on rear wheels
	Aic Condition	Yes
Weight & Dimension (With van box)	Gross Vehicle Weight(kg)	7100
	Curb Weight(kg)	4710
	Rated Weight / load(kg)	5200
	Wheelbase(mm)	4200
	Front/Rear suspension	1130/1770
	Appr/Dep Angle (°)	20/13
	Ground Clearance (mm)	>=220
	Overall Dimension(mm)	6700×2150×2950
	(length ×width×height )	6700×2150×2950
Upper Structure Configuration	Skip loader dimension(mm)	3170x1650x1250, the shape can be adjusted as per special request
	(length ×width×height at side)
	Skip loader Capacity	4 ton, 5 cbm
	Material of skip loader	Q235B high quality carbon stell
	Thickness of skip loader	Bottom 4mm, side 3mm
	Oil cylinder	Hydraulic oil cylinder, 2 sets
	Loading medium	House hold waste (not including construction waste)
Production lead time	30-45 days
Remark	1. With power assisted steering, A/C, spare tyre, hydrlic telescopic jack, wheel brace etc tools. 2. If with Euro IV emission standard engine of YC4S150-48 150HP, the price need to upcharge usd2700/set.

Truck diagram

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 0

Truck drawing

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 1

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 2

Working show

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 3

Factory overview

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 4

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 5

Overseas exhibition and local visit

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 6

Customer Visiting

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 7

Other trucks we can supply

Dongfeng Self Loading Swing Arm Garbage Truck 4x2 4cbm With Hanging Chain 8

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
