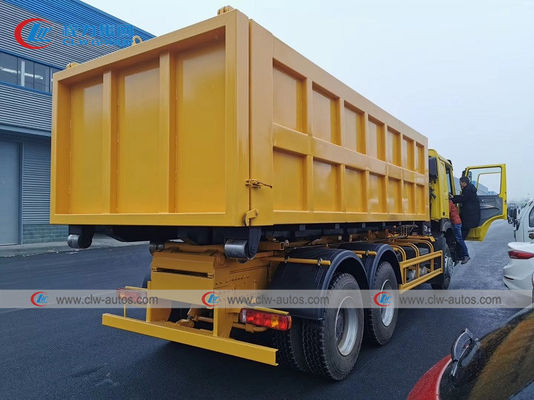

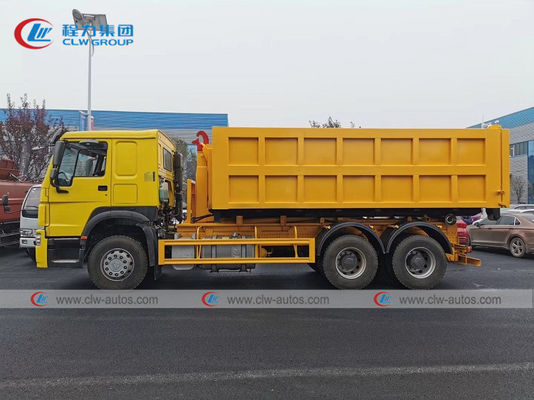

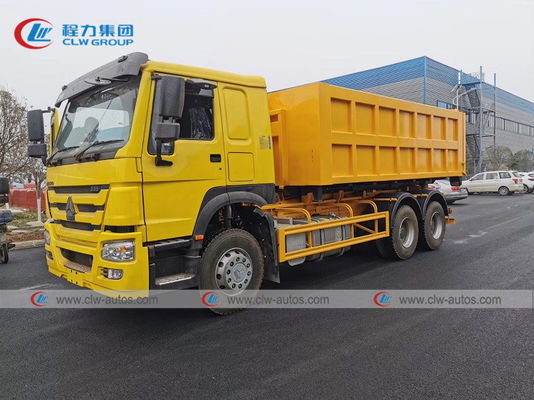

RHD Carbon Steel Q235 20cbm/20m3 339HP Detachable Body Truck Waste Bin Truck

تصویر بزرگ : RHD Carbon Steel Q235 20cbm/20m3 339HP Detachable Body Truck Waste Bin Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, BV, SGS
Model Number:	CLW5201PRYDC

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	SINOTRUK HOWO، دانگ فنگ، فوتون، ایسوزو و غیره	اندازه جعبه زباله:	20CBM
Loading Capacity:	18tons,18mt,20T,20mt,20tonns	ضخامت جعبه:	سمت 4 میلی متر، پایین 5 میلی متر، کربن فولاد Q235B
مواد محافظ:	فولاد کربن Q235A	نوع زباله:	بالابر و بارگیری سیلندر هیدرولیک
راه کنترل:	شیر کنترل هیدرولیک سه طرفه	رنگ:	سفارشی
گارانتی:	1 سال
برجسته کردن:	20m3 Waste Bin Truck,339HP Waste Bin Truck,20cbm Waste Bin Truck , 339HP Waste Bin Truck , 20cbm Waste Bin Truck

RHD Carbon Steel Q235 20cbm/20m3 Detachable Body Truck

Product Description

*Top 500 Private enterprises in China

*National standard steel customization

*Optional shapes of waste bins

*Light weight and easy maintenance

*Reliable product quality, low failure rate and low operating costs

Product Specification

Truck model	ZZ1257N4347P1
Drive style	Right hand drive
Drive model	8x4
Dimensions(LxWxH)	8915x2496x3050 MM
Cargo body	20 cbm
Loading weight	20tonns
Engine	D10.34-40, 339hp
Emission standard	EURO 4
Front axle	HF7, 7tons loading capacity
Rear axle	HC18, 18tons loading capacity
Transmission	HW9726, 10 forward & 2 reverse.
Steering system	hydraulic steering with power assistance
Tires	11.00R20 16PR, 10+1spare

Upperstructure Specification
Garbage Hopper	Dimension	5600×2300×1500mm
	Standard Configuration	With one garbage bin, with hydraulic rear outrigger
	Volume	Ground type, 18CBM or 20cbm
	Loading Capacity	16tons or 18Tons
	Thickness	5mm, Carbon Steel Q235B

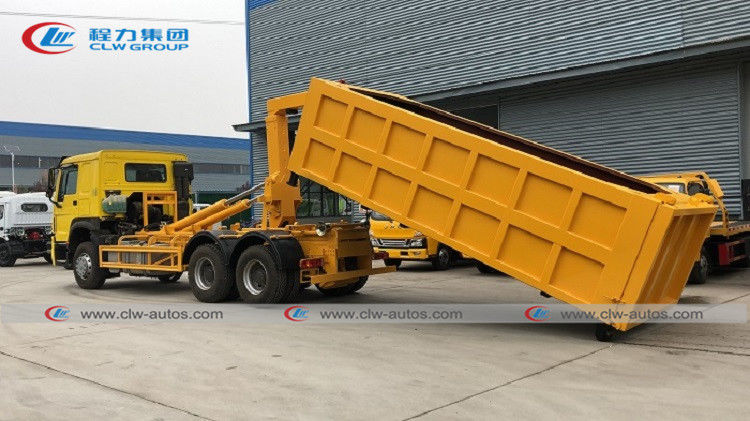

Dump type	Hydraulic cylinder lifting and self-loading
Dump angle	≥45°
Hydraulic system pressure	≤16Mpa
Protective Material	Q235A Carbon Steel
Controlling Way	Three-way hydraulic control valve
Other Configuration	Reinforced hydraulic swept-body system, with Double hydraulic cylinder Swing Arm, Chain. Hydraulic multi-way valve control.
Options	Electronically controlled valve, trash bin type, trash bin quantity, etc.

Main Structure and Diagram

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage Truck?
A: China GB local standard.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
