HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
خانه محصولاتکامیون های دفع زباله

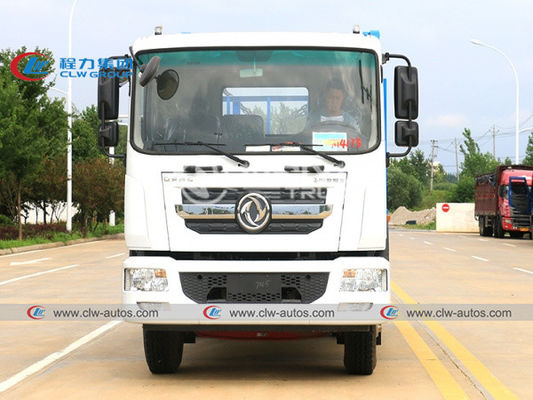

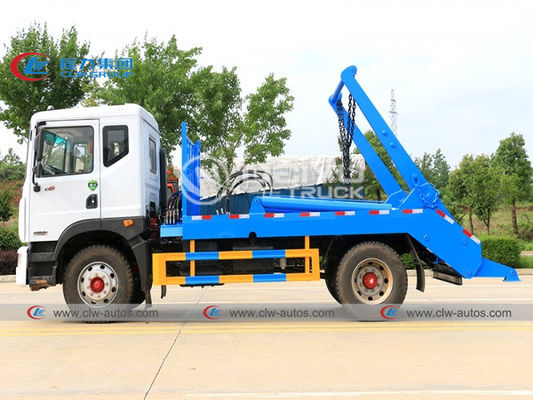

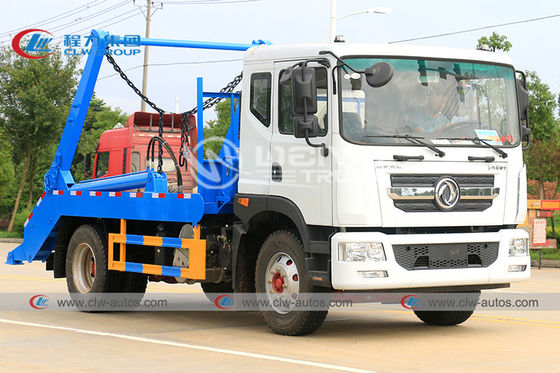

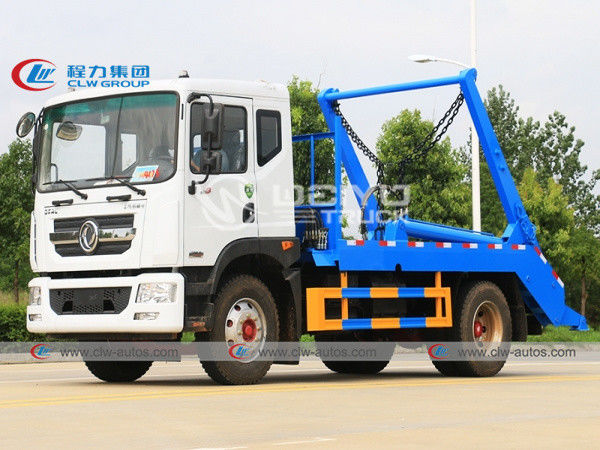

8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle

8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle
8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle 8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle 8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle 8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle

تصویر بزرگ :  8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: CCC, ISO, BV, SGS
Model Number: CLW5517DY

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: بسته برهنه با موم
زمان تحویل: 30-35 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
برند شاسی: دانگ فنگ، فوتون، ایسوزو، سینوتروک و غیره اندازه قیف: 8cbm، نوع زمین
ظرفیت بارگیری: 8ton ضخامت هپر: 5 میلی متر، کربن فولاد Q235B
مواد محافظ: فولاد کربن Q235A مقدار قیف: طبق درخواست مشتری
نوع زباله: بالابر و بارگیری سیلندر هیدرولیک راه کنترل: شیر کنترل هیدرولیک سه طرفه
رنگ و لوگو: طبق درخواست مشتری گارانتی: 1 سال
برجسته کردن:

160HP LHD Swing Arm Garbage Truck,8cbm Swing Arm Garbage Truck

,

8cbm Swing Arm Garbage Truck

8cbm 10cbm 160HP LHD Swingh Arm Garbage Truck Refuse Rubbish Collection Vehicle
Product Description

  • Swing arm mechanism: It is composed of steel plates and welded in a box-shaped structure.
  • Hopper: open and sealed. (boat-shaped bucket, square bucket, sealing bucket)
  • Hydraulic operating system: power take-off, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank, etc.
  • Self-unloading function, hydraulic operation
  • The bucket is separated from the car body, which can realize the joint operation of one truck and multiple buckets.
  • Short-distance transportation, such as the cleaning of urban garbage etc.
Cabin Driving type 4*2 LHD
Single row cab,safety belts,with A/C
Carriage Dimensions 7020*2462*2690 mm
Wheel Base 3950mm
GVW 10920kg
Front/rear track 1900/1800
Front/rear suspension 1250/1820
Engine Brand Cummins
Model EQB160-20
Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Displacement 5880L
Horse Power 160HP
Emission standard Euro 2
Max Speed 90 km/h
Tire 9.00-20 Nylon tire
Transmission HW 5880 transmission ,10 forward and 2 reverse
Oil Tank Square type-300L Aluminum alloy fuel tank
Lifting System Hyva
Brake System Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake
Electrics Operating voltage:24V,negative grounded
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light
Superstructure Hopper Capacity 8cbm
Hopper Material Carbon steel






Main Structure and Details
8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle 0

Main Parts
8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle 1


Our Factory

8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle 2

8cbm 10cbm 160HP LHD Swing Arm Garbage Truck Refuse Rubbish Collection Vehicle 3



FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.



Q2: What is your production standard of garbage truck products?

A: China GB local standard.



Q3: Can we adopts International brand fuel pump for garbage truck?

A: Sure, we already cooperated with many international brand supplier.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
