Euro3 4*2 10cbm 10m3 Refuse Skip Loader Truck Rear Load Garbage Trucks

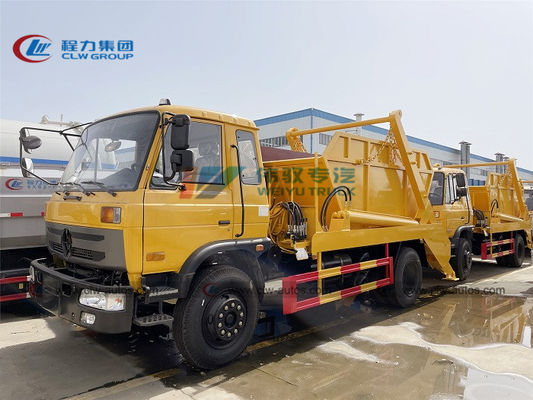

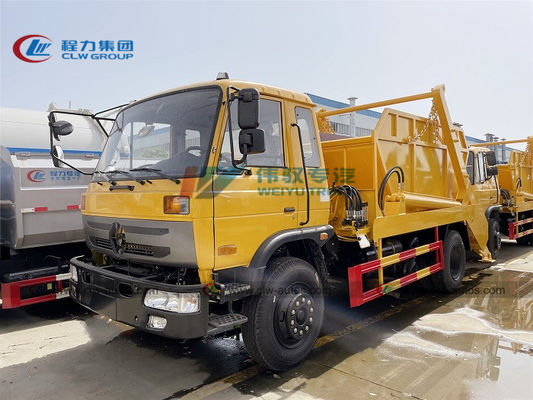

تصویر بزرگ : Euro3 4*2 10cbm 10m3 Refuse Skip Loader Truck Rear Load Garbage Trucks

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
Model Number:	CLW536YD

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم، کشتی فله، رو-رو
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	300 واحد

مخاطب

توضیحات محصول جزئیات

Truck chassis:	Dongfeng,HOWO,SHACMAN,JAC,JMC,ISUZU,FOTON	مواد:	کربن فولاد Q235B
ضخامت:	سمت 3 میلی متر، دکمه 4 میلی متر	Garabge container Size:	10cbm,10m3,10000liters
اسب بخار:	140 اسب بخار	Engine:	Diesel Engine, Cummins brand
Warranty:	one year for major parts	Spare parts:	factpry price whenever needed
فیلم عملیات:	بله	Live operation guidance:	yes
کتابچه راهنمای کاربر:	بله	رنگ و لوگو:	آرم سفارشی
خدمات:	خدمات پس از فروش طولانی مدت
برجسته کردن:	10m3 Refuse Skip Loader Truck,Euro3 Refuse Skip Loader Truck,10cbm Rear Load Garbage Trucks , Euro3 Refuse Skip Loader Truck , 10cbm Rear Load Garbage Trucks

***Euro3 4*2 10cbm/10m3 Skip Loader Refuse Truck Rear Load Garbage Trucks***

Product Description

Swing arm mechanism: It is composed of steel plates and welded in a box-shaped structure.
Hopper: open and sealed. (boat-shaped bucket, square bucket, sealing bucket)
Hydraulic operating system: power take-off, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank, etc.
Self-unloading function, hydraulic operation
The bucket is separated from the car body, which can realize the joint operation of one truck and multiple buckets.
Short-distance transportation, such as the cleaning of urban garbage etc.

Drive type	4*2, New condition, LHD&RHD
Vehicle Main Dimensions	(L x W x H)mm		7060×2140×2350
	Wheel base (mm)		4200
	Track front/rear mm		1110/1750
	F/R Axle-Load		3220/5200 kg,
	Approach/departure angle		18/14
	Curb weight		3015 kg
	GVW		8420kg
Max. driving speed(km/h)			90
Engine	Brand		Yuchai,Brand,Diesel ENGINE
	Model		YC4E140-31
	Type	4 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling;
	Horse Power(HP)		140
	Emission standard		Euro3
Gearbox	8 forwards& 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	7.50-16,8.25-16 Nylon tyre, 7 pc including 1 spare tire
Steering Gear	power steering, hydraulic steering with power assistance
Upper Body
Garbage Box Material	Carbon Steel Q235
Garbage Box Volume	10 CBM
Remarks	1. Color is optional 2. Customized LOGO painting as per customer's request

Truck Diagram

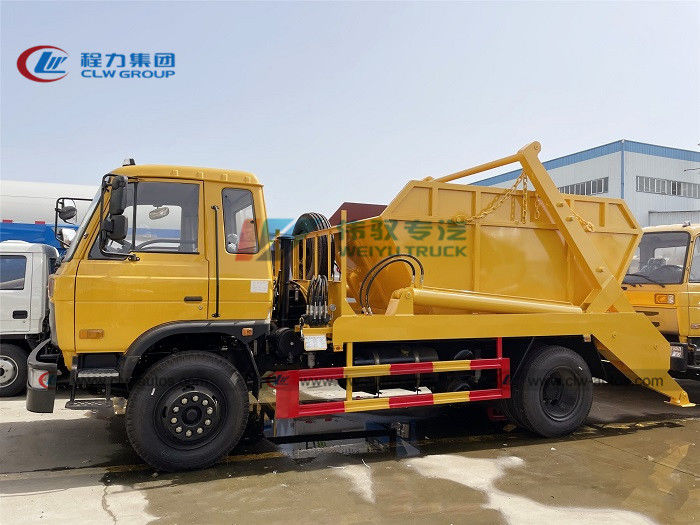

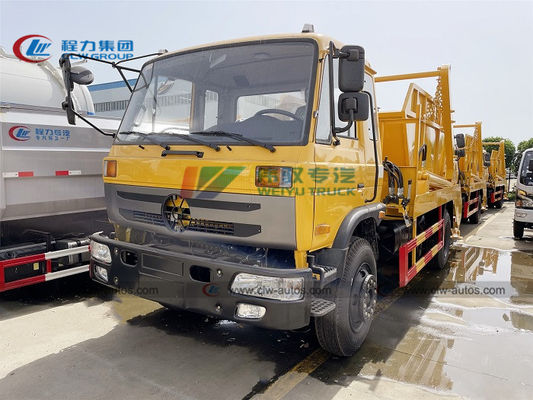

Truck details

Euro3 4*2 10cbm 10m3 Refuse Skip Loader Truck Rear Load Garbage Trucks 1

Our Factory

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty of garbage truck?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
