Foton 3-12cbm/3-12m3 Waste Removal Truck Hook Lift Garbage Truck

تصویر بزرگ : Foton 3-12cbm/3-12m3 Waste Removal Truck Hook Lift Garbage Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, BV, SGS
Model Number:	CLW53YRE

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، فوتون، ایسوزو، سینوتروک و غیره	Container Volume:	3-4cbm
ماده مخزن:	فولاد کربن Q235	ضخامت صفحه جانبی (میلی متر):	3
ضخامت پایین (میلی متر):	4	مدل کنترل:	کنترل هیدرولیکی
Control Panel:	Close to Cabin	Loading Time:	50-60s
زمان تخلیه:	40 تا 50 سال	راه کنترل:	شیر کنترل هیدرولیک سه طرفه
لوگو و نقاشی:	سفارشی	زمان تحویل:	30-35 روز کاری
گارانتی:	1 سال	Drive Model:	4X2 6 Wheels
برجسته کردن:	Hook Lift Garbage Truck,12m3 Waste Removal Truck , 12m3 Waste Removal Truck

Foton 3-12cbm/3-12m3 Waste Removal Truck Hook Lift Garbage Truck

Product Description

*Top 500 Private enterprises in China

*National standard steel customization

*Optional shapes of waste bins

*Light weight and easy maintenance

*Reliable product quality, low failure rate and low operating costs

Condition	New condition 4x2 RHD&LHD
Main details	Wheelbase(mm)		2600;2800;2850
	Front/Rear Axle loading(kg)		1330/2165
	Tare Weight(kg)		1580
	Wheel track (front/rear) (mm)		1345/1240
	Front/Rear overhang(mm)		1110/1488
	GVW(kg)		3495
	Approach/Departure angle(°)		18/20°
	Max. driving speed(km/h)		90
	Cab		2-3passangers,single row cab
	Starter		12V 2.8kw
	Clutch		Dry single plate
	Brakes		Hydraulic brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	6.00-14,6.00-15
Transmission	Manual type, 5 Forwards and 1 reverse
Cab	It can accommodate three people. With Air Conditioner
Engine	Brand		QUANCAI 4D22F
	Fuel type		Diesel
	Emission standard		Euro 3
Upper & Control System
Garbage box	Capacity(cbm)		3-4cbm
	Tank material		Q235 carbon steel
	Side plate thickness(mm)		3mm
	Bottom thickness(mm)		4mm
	pulley wheel quantity(pcs)		4 pcs
Control System	Control model		Hydraulic control
	Control panel		Close to Cabin

Main Structure and Details

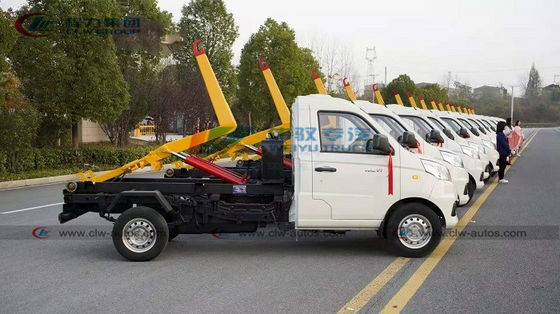

Foton 3-12cbm/3-12m3 Waste Removal Truck Hook Lift Garbage Truck 0

Main Parts

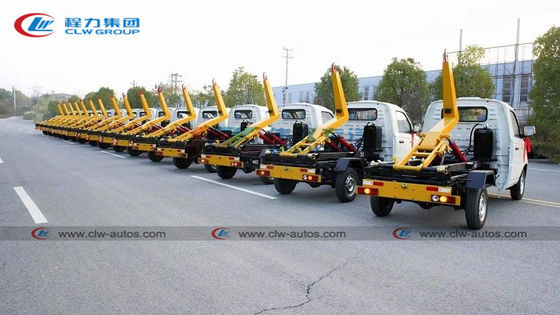

Foton 3-12cbm/3-12m3 Waste Removal Truck Hook Lift Garbage Truck 2

Our Factory

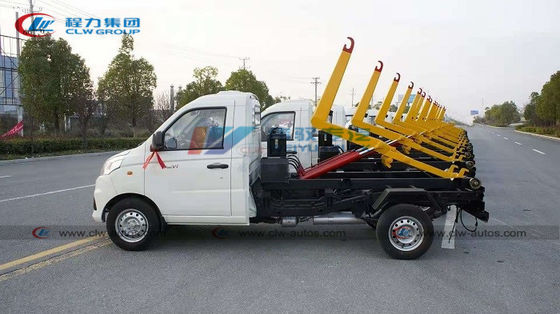

Foton 3-12cbm/3-12m3 Waste Removal Truck Hook Lift Garbage Truck 3

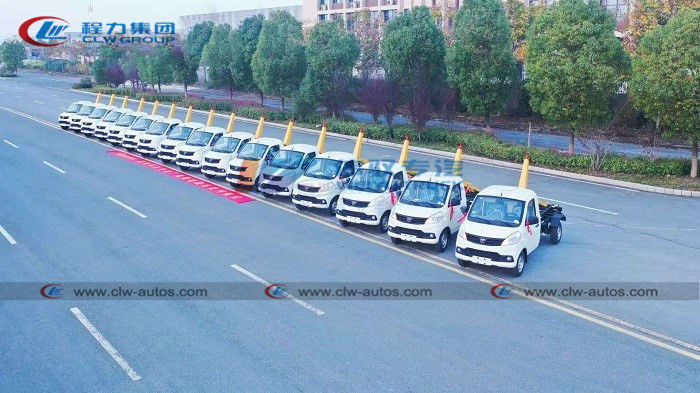

Foton 3-12cbm/3-12m3 Waste Removal Truck Hook Lift Garbage Truck 4

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different kinds and sizes garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM compactor garbage truck, hook lift garbage truck, swing arm garbage truck, hanging barrel garbage truck, etc. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage trucks?

A: China GB local standard.

Q3: Can we adopts International brand equipment or accessories for garbage truck?

A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
