Sinotruk Howo 4x2 8cbm Foam Tank Fire Engine Truck

تصویر بزرگ : Sinotruk Howo 4x2 8cbm Foam Tank Fire Engine Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,SGS,BV
شماره مدل:	CLW5649

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	US $41,098-47,540
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

شاسی کامیون:	دانگ فنگ، هوو، ISUZU، Shacman، CAMC، Foton	ظرفیت:	2 تن، 3 تن، 5 تن، 6 تن، 8 تن، 10 تن، 12 تن، 14 تن، 16 تن
تایپ کنید:	کامیون آتش نشانی مخزن آب، فوم، کامیون آتش نشانی پودر خشک، ماشین آتش نشانی نجات	پمپ آتش:	مارک چینی
دامنه مانیتور آتش:	≥55 متر	سرعت جریان مانیتور:	48 لیتر در ثانیه
سرعت جریان پمپ:	60 لیتر در ثانیه	فرمان:	LHD یا RHD
برجسته کردن:	8cbm Foam Tank Fire Engine Truck,Sinotruk Howo Fire Engine Truck,Howo 4x2 Fire Pumper Truck , Sinotruk Howo Fire Engine Truck , Howo 4x2 Fire Pumper Truck

Sinotruk howo 4x2 8cbm 8000liters foam tank fire fighting truck fire engine fire pumper truck fire fighter trucks

Product Description

1) HOWO 4X2 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.60 with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) Fire trucks are widely used in factory, terminal, oil&gas depot to insure emergency fire cases.

Specifications

Cabin	Driving type 4x2 LHD
	Double Row Cab with Air condition
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		8400×2500×3425
	Wheel base (mm)		4600
	Wheel track (front/rear) (mm)		2022/1830
Weight in KGS	Tare Weight		11000
	Payload		12000
	Front axles loading capacity		1x7000
	Rear axles loading capacity		1x16000
Max. driving speed(km/h)			102
Engine	Brand		SINOTRUK
	Model		WD615.87
	Type		4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled
	Horse Power(HP)		290 HP
	Emission standard		Euro 2
Gearbox	HW15710, 10 Forwards gear & 2 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	300
Tire	12R22.5 tubeless tyre, 7 pcs including one spare tire
Tank Capacity (L)	Foam: 8,000
Fire Pump	Flow	40L/s at Low Pressure 1.0 MPa
		20L/s at Middle Pressure 2.0 Mpa
Fire Monitor	Model	SP30
	Pressure	1.0-1.2 MPa
	Flow	30L/S
	Range	Water≥55m
		Foam≥40m
	Rotation angle	360° Horizontal
		-30°~80° Pitch Angle

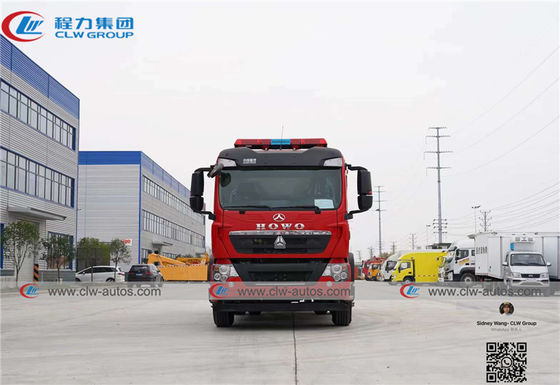

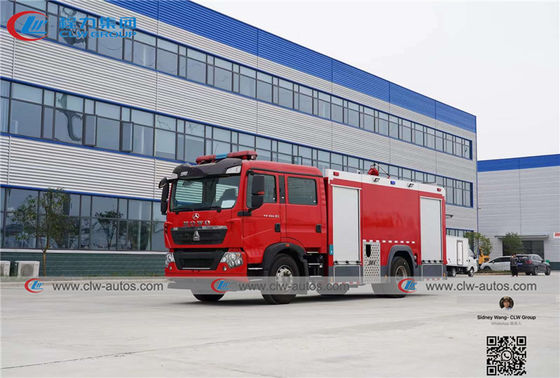

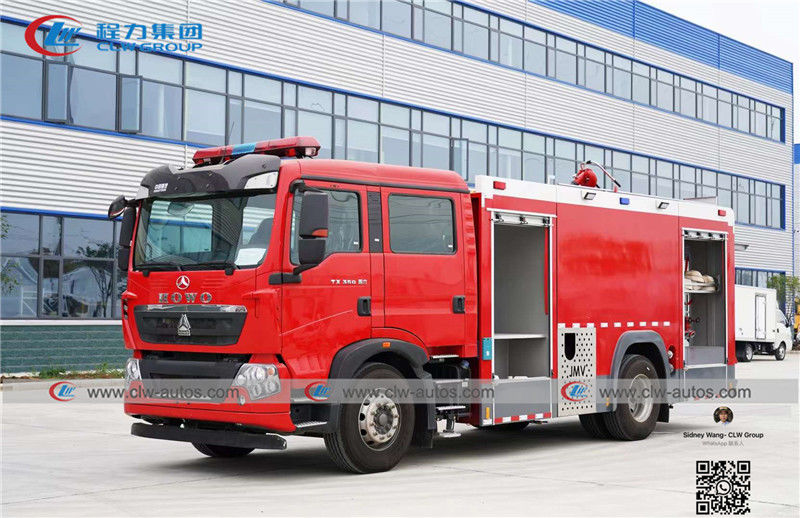

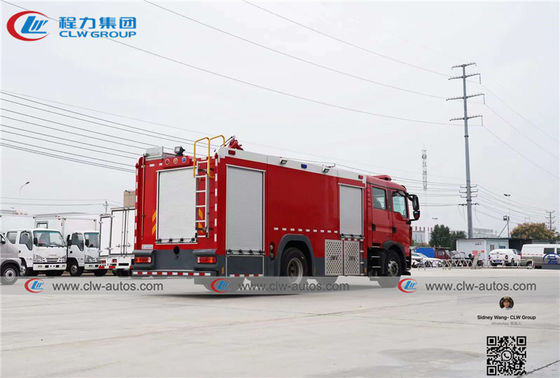

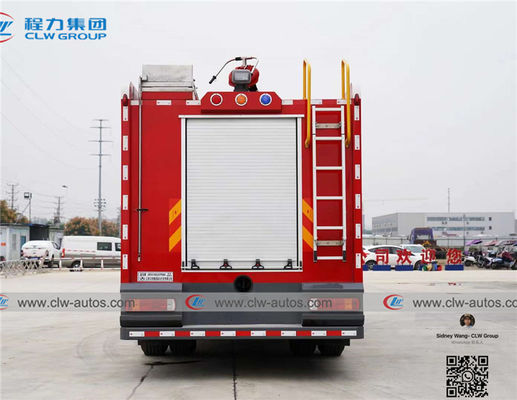

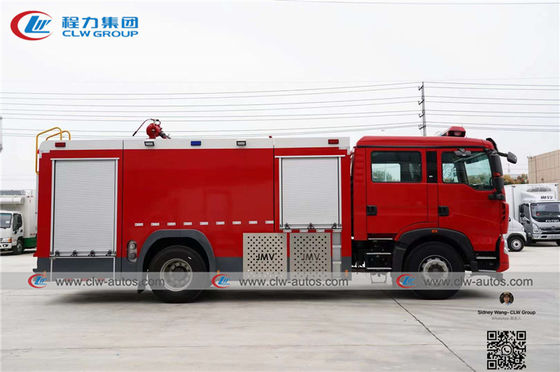

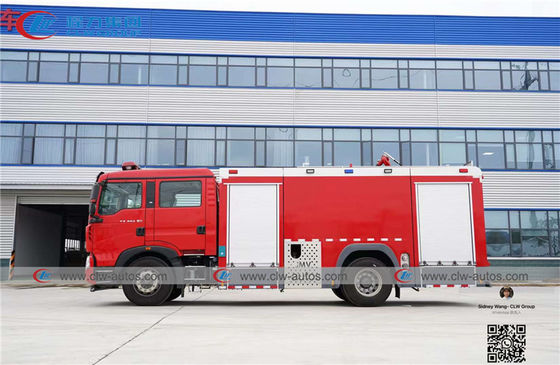

Reference photos

Sinotruk Howo 4x2 8cbm Foam Tank Fire Engine Truck 0

Sinotruk Howo 4x2 8cbm Foam Tank Fire Engine Truck 1

Fire fighting truck accessories

Sinotruk Howo 4x2 8cbm Foam Tank Fire Engine Truck 4

Successful cases

Fire truck workshop

Factory overview

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.

FAQ

Q1: What kinds of fire fighting truck I can order from your company?

A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied fire fighting trucks to any overseas companies?

A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
