14000Liters 14m3 8tons Dongfeng 4X2 Detachable Container Type hook lift arm garbage truck
Description:
A hooklift truck is a heavy-duty truck chassis that's been fitted with a hydraulic hooklift hoist. The hydraulic hoist system lets contractors, municipalities and other work vehicle users roll on and roll off different truck bodies or containers. ... Roll on a dump container.
1. Chassis: Sinotruk howo, dongfeng, isuzu, faw, jac, shacman, camc and so on.
2. Garbage Bin with different size options of hook lift garbage truck : 4cbm to 23cbm; Engine 266hp,290hp,336hp,371hp, Fast Gearbox 6Forward & 2Reverse;
3. Hydraulic Control Loading&Unloading System;
4. Different shapes of hook lift garbage truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;
6. Lifting oil cylinder of hook lift garbage truck :double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;
7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;
8. Best Choice for Garbage collection and transporation Inside City.
Specifications
| Cabin |
Dongfeng 153 cab with air conditioner, LHD drive |
| Overall dimensions(LxWxH) |
7100×2470×2900mm |
| Wheelbase |
4500mm |
| Tare Weight |
6595kg |
| Front axles loading capacity |
6000kg |
| Rear axles loading capacity |
9000kg |
| Engine |
B190 33(190HP), Euro II emission |
| Gear box |
6 speeds,6 forwards,1 reverse gear,manual operation |
| Steering |
hydraulic steering with power assistance |
| Clutch |
Reinforced clutch |
| Fuel tank |
200L |
| Tire |
10.00-20 tyre, 7pcs including one spare tire |
| Specialized Device |
Filler volume: 2CBM |
| Cycle Time of Filling: ≤20 S |
| Lifting Time of Filler: 10 S |
| Max.Compression Force: 25MPA |
| Garbage Box Standard confirguration |
| Garbage Box Material |
Carbon Steel Q235 |
| Thickness of box |
5mm |
| Garbage Box Volume |
14cbm/14000Liters/10tons |
| Container Roll on time(s) |
50-60 |
| Container Roll off time(s) |
40-50 |
| Hook arm garbage truck operating system: |
Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual multi-way reversing valve, balance valve, one-way hydraulic lock, etc., generated by the gearbox and power take-off. |
| Garbage bin: |
Divided into pit-type swing arm bins, ground-type swing arm bins
(trapezoidal bucket, square bucket, sealed bucket)
|
| Especially suitable for: |
Short-distance transportation, sanitation department cleaning, transportation, etc. |

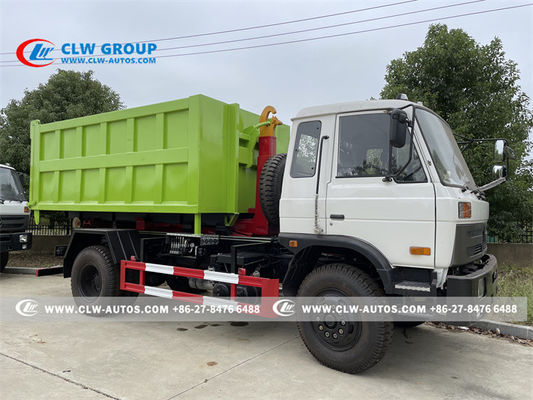

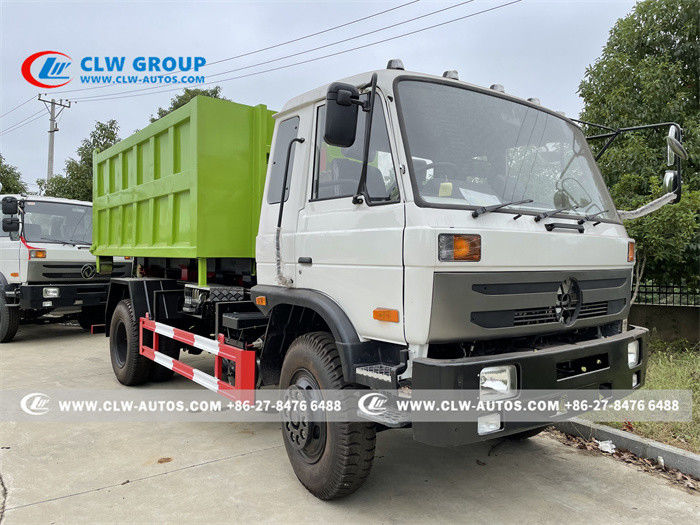

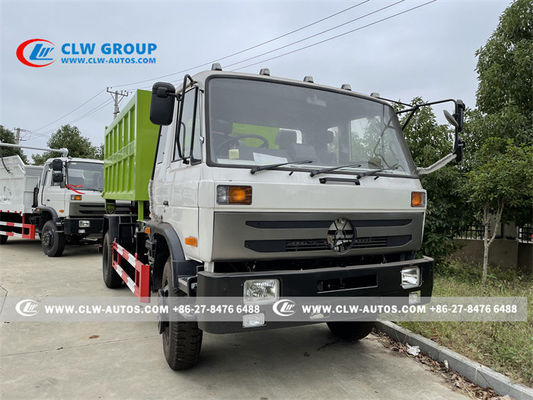

Reference Photos
Main Structure and Diagram
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 23CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage Truck?
A: China GB local standard.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
