Foton 8x4 9.6m Long Distance Food Transportation Refrigerated Box Truck

تصویر بزرگ : Foton 8x4 9.6m Long Distance Food Transportation Refrigerated Box Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	ISO, CCC, SGS, BV, ASME
شماره مدل:	CLW5056A

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، Ro-Ro
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، هوو، فوتون، ایسوزو، جی ام سی و غیره	مواد وانت:	صفحه رنگی داخل، FRP خارج از ون، فوم پلی اورتان وسط
ضخامت خارجی وانت:	1.2mm 1.5mm 1.8mm 2.0mm	ضخامت بین بستر ون:	80mm 100mm 120mm
ضخامت داخلی وان:	1.2mm 1.5mm 1.8mm 2.0mm	وزن بارگیری:	3-5 تن
مدل یخچال:	Thermo King، Carrier، Hanxue، Huatai، Bingli	برند شاسی:	ایسوزو، دانگ فنگ، فوتون، هوو و غیره
مدل محرک:	4x2/6x4/8x4; طبق اندازه ساختار فوق العاده	پایه چرخ:	3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm
لوگو و نقاشی:	به عنوان درخواست مشتری	زمان تحویل:	30-35 روز کاری
گارانتی:	1 سال
برجسته کردن:	9.6m Refrigerated Box Truck,Foton 8x4 Refrigerated Box Truck,Foton Freezer Box Truck , Foton 8x4 Refrigerated Box Truck , Foton Freezer Box Truck

**Foton 8*4 9.6m Long Distance Food Transportation Freezer Refrigerator Truck**

Product Description

1. Insulation materials are imported grade insulation board.
2. The refrigeration unit has well-known domestic and imported unit selection, and the temperature can meet the requirements of deep cooling.
3. Sinotruk ,Dongfeng ,Shacman ,JAC,FOTON ,I-SUZU and any other chassis brand can be selected.
4. The entire vehicle is manufactured using the latest international technology and new technology, and it has good insulation property.

Product Specification

Item No.	Parameters
Overall Dimension	1100026003990(mm)
Gross Vehicle Weight	31000kg
Curb Weight	13200kg
Wheel Base	1800+5000mm
Gearbox	8 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Engine
Engine horsepower	430HP EURO 2or3
Displacement	12L (Diesel)
Max Driving Speed	98 km/h
Cabin	2or3 Passengers
Tire	11.00R20, 10pcs + 1 spare tire
Carriage Body
Size:	960024502500(mm)
Body Material	Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation.
Refrigerator	High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree.

Reference Photos

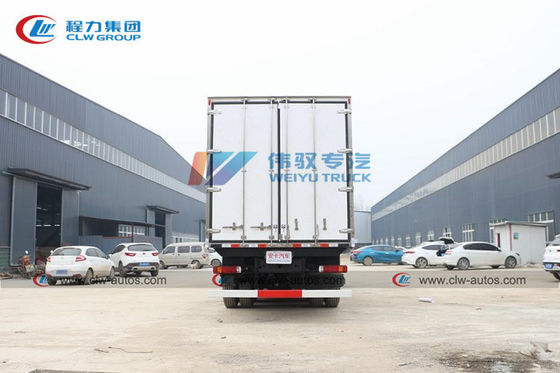

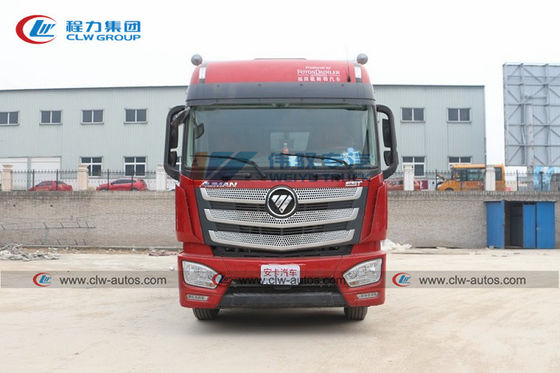

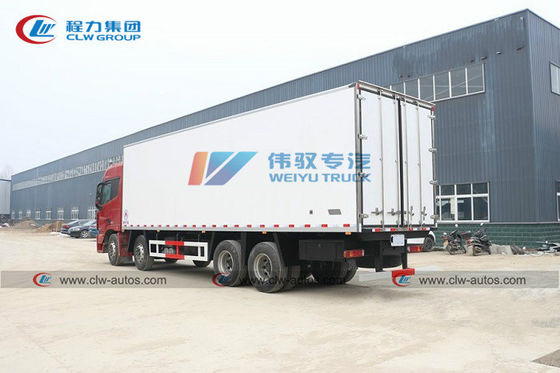

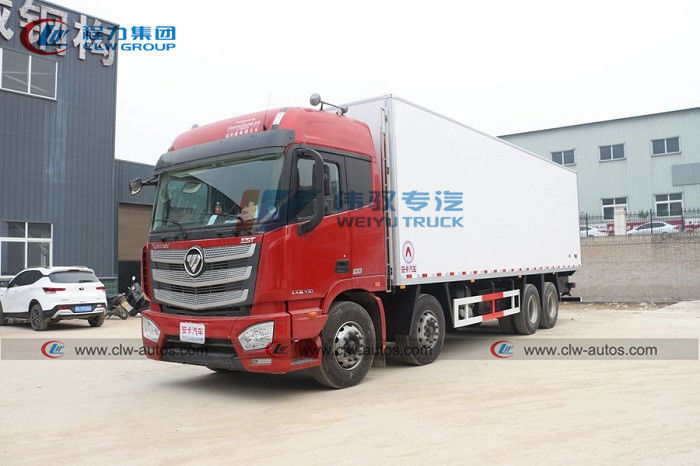

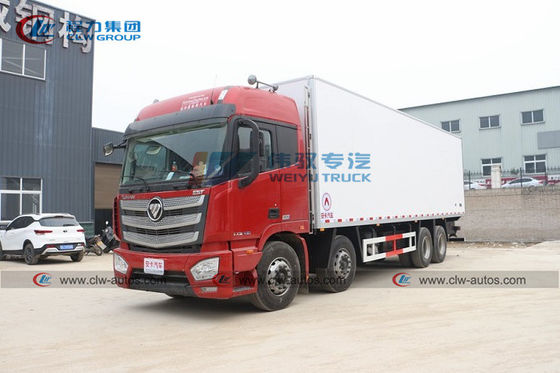

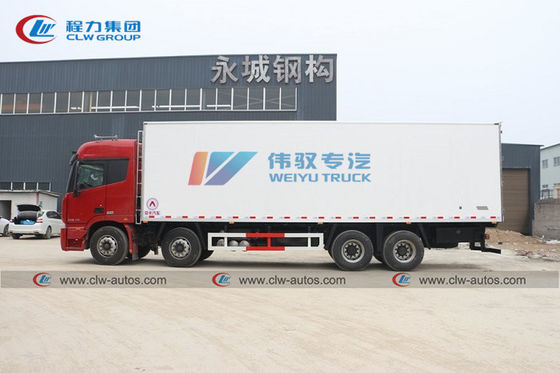

Foton 8x4 9.6m Long Distance Food Transportation Refrigerated Box Truck 0

Foton 8x4 9.6m Long Distance Food Transportation Refrigerated Box Truck 1

Foton 8x4 9.6m Long Distance Food Transportation Refrigerated Box Truck 2

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
