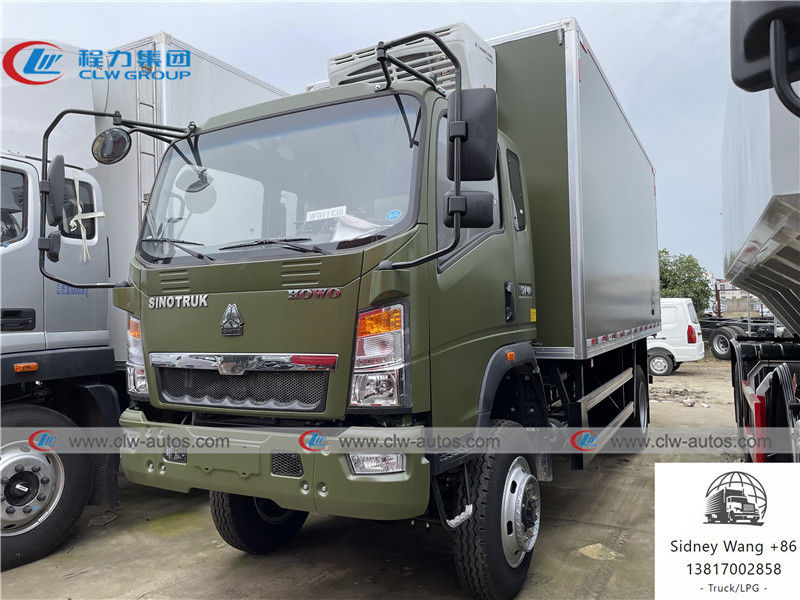

10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer

10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer

10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer
10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer

تصویر بزرگ :  10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: ISO, CCC, SGS, BV, ASME
شماره مدل: CLW5136

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: برهنه، موم شده، کشتی فله، Ro-Ro
زمان تحویل: 25-30 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
برند شاسی: دانگ فنگ، هوو، فوتون، ایسوزو، جی ام سی و غیره مواد وانت: صفحه رنگی داخل، FRP خارج از ون، فوم پلی اورتان وسط
ضخامت خارجی وانت: 1.2mm 1.5mm 1.8mm 2.0mm ضخامت بین بستر ون: 80mm 100mm 120mm
ضخامت داخلی وان: 1.2mm 1.5mm 1.8mm 2.0mm وزن بارگیری: ۱۰ تا ۱۲ تن
مدل یخچال: Thermo King، Carrier، Hanxue، Huatai، Bingli برند شاسی: ایسوزو، دانگ فنگ، فوتون، هوو و غیره
مدل محرک: 4x2/6x4/8x4; طبق اندازه ساختار فوق العاده پایه چرخ: 3300mm 3800mm 4500mm 4700mm 5200mm; 4300+1350mm; 1350mm+4300+1350mm
زمان تحویل: 25-30 روز کاری لوگو و نقاشی: به عنوان درخواست مشتری
گارانتی: 1 سال
برجسته کردن:

SINOTRUK HOWO 4x4 Refrigerated Van Truck,12T Refrigerated Van Truck,10T Refrigerated Box Truck

,

12T Refrigerated Van Truck

,

10T Refrigerated Box Truck

10tons 12tons SINOTRUK HOWO 4x4 Refrigerated Van Truck with Carrier/ thermo king Freezer Unit

Product Description
Refrigerated truck is widely used to transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables, vaccine and drug transporter (vaccine truck), etc


Our refrigerated trucks collected special imported thermal insulation material. The water absorption rate of the insulation board is ≤ 1. The heat conduction coefficient is ≤ 0.028 W/mk, and the compressive acuity ≥ 150 kpa with density 30 ~ 45 kg/m3, using the most advanced fifth-generation closed polyurethane plate bonding structure. The load plate surface materials are optional, such as reinforced fiber glass, stainless steel, aluminum alloy, choi steel, etc.

The body box after molding has advantage of light quality, high coefficient of heat preservation, strong impact resistance, no leakage and good corrosion resistance against the atmosphere, water, acid, alkali, salt and other medias.

Product specifications

Item unit parameter
Vehicle model   HOWO 4x4 left hand drive offroad Refrigerated Van Truck
Chassis model   ZZ1187G521
Overall dimensions mm 8995×2600×3980
Body internal dimensions 6640×2440×2420
Actual load kg 10000-15000
Mass in working order Appro×7880
Wheel base mm 4500-5200
F/R track base 1940/1800
Approach/departure angle ° 19/10
Exhaust/kw ml/kw 4580/151 (210HP)
Max speed km/h 95
Fuel type Diesel Engine MC05.21-50
Number of axles 2 Axle load 6500/11500
Number of tires 6+1 Tire specification 10.00R20
Configuration

Refrigerator unit is Hanya, made in China, working temperature is minus 15 celsius degree.

The material of the van surface is FRP, 8 cm thick PU inside.

Introduction The van with light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts.
Production cycle 25-30 working days
Warranty 12 month,from the date of supply

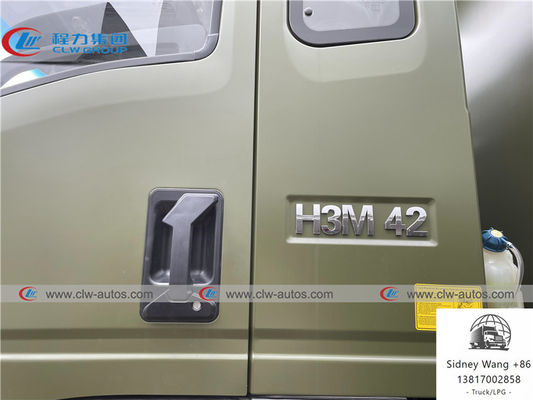

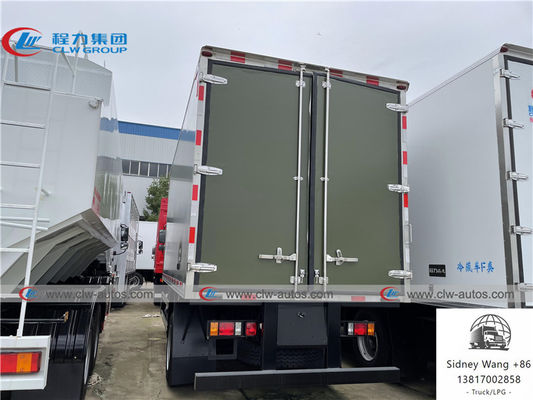

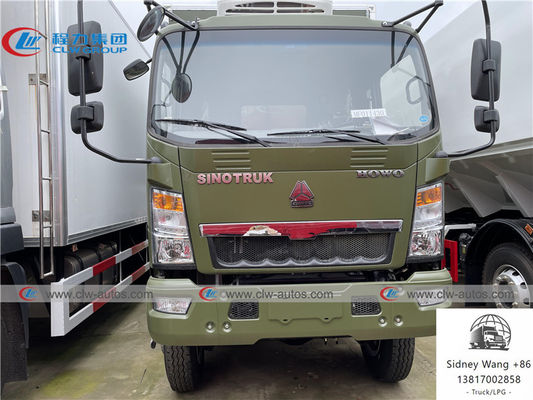

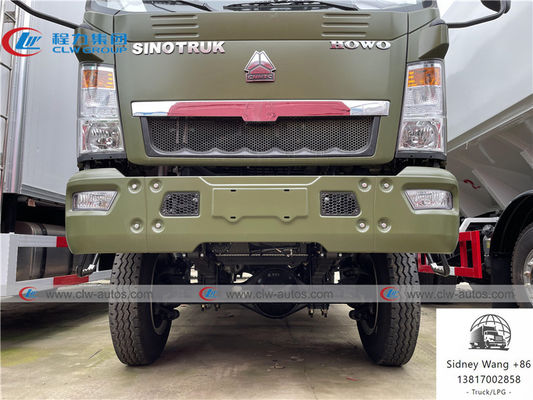

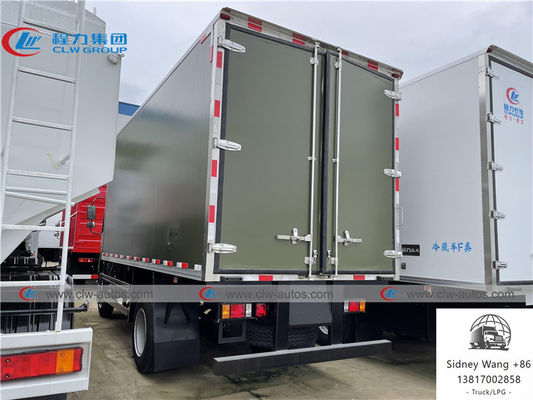

Product Show

10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 010T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 110T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 210T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 3



10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 4



Factory overview

10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 5

10T 12T SINOTRUK HOWO 4x4 Refrigerated Van Truck With Thermo King Freezer 6



Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
