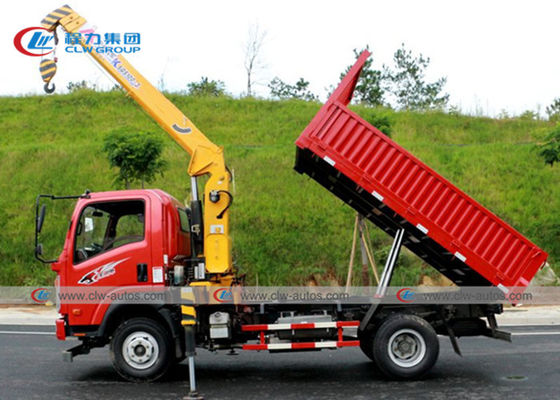

Sinotruk Wangpai 4x2 4T 5T Tipper Dumper Dump Truck with XCMG Straight Arm Crane
Description
Truck crane is one of our main products,which is also named hydraulic truck crane, crane, mobile crane, truck mounted crane, lorry truck, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane, derrick cargo truck and so on. We have straight arm and floding arm truck crane with different specifications, models and different loading capacity from 2T-25T. 16 ton truck mounted crane is Using well-known hydraulic pump system can achieve rapid take-off and landing, high efficiency, energy saving. It has a flexible, user-friendly, efficient work, safe, reliable and credible, and other advantages. It is widely used in city construction, coal mining engineering, gardens Greening for loading and unloading, installation of lifting operations and transporting the basic construction materials and so on.
Specification
|
item
|
value
|
|
Feature
|
TRUCK CRANE
|
|
Truck Length
|
9000mm
|
|
Truck Width
|
2500mm
|
|
Truck Height
|
3850mm
|
|
Wheel base
|
4400mm
|
|
Tyre
|
900R20
|
|
Bucket Length
|
5000mm
|
|
Bucket Width
|
2500mm
|
|
Bucket Height
|
600mm
|
|
Weight
|
14000kg
|
|
Max.drive speed
|
85km/h
|
|
Min. Curve rate
|
14m
|
|
Min.ground gap
|
360mm
|
|
Max. Lifting capacity
|
6300kg
|
|
Min. Work span
|
2500mm
|
1. Boom structure:It adopts Steel BS700 high-strength and high-toughness Mn-steel sheet, and the shape adopts 3-section U-shaped anti-folding boom. 2. Slewing mechanism High-precision internal gear turntable or external gear turntable, planetary reducer, full hydraulic rotary structure. 3. Outrigger design The high-strength composite leg box steel is made of 70 Mn-steel, and the side H-shaped double-section leg shape is matched with the rear outrigger. 4 sides are attached 4. Hydraulic system Adopt large flow gear pump, multi-way valve single link, power take-off

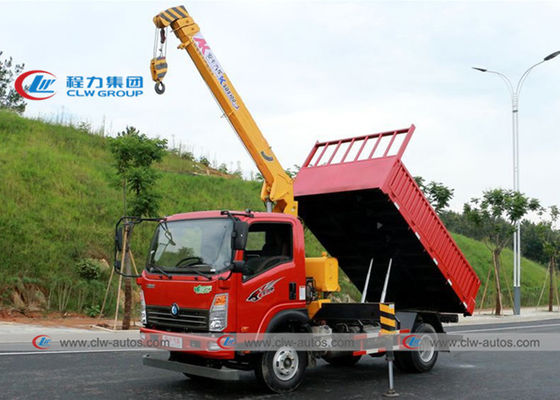

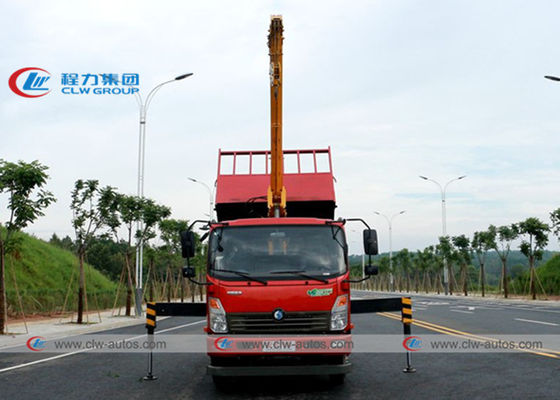

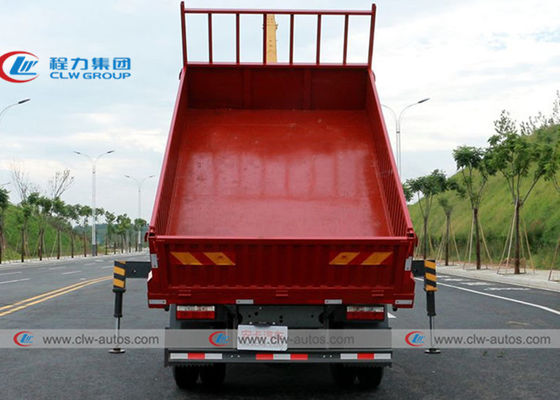

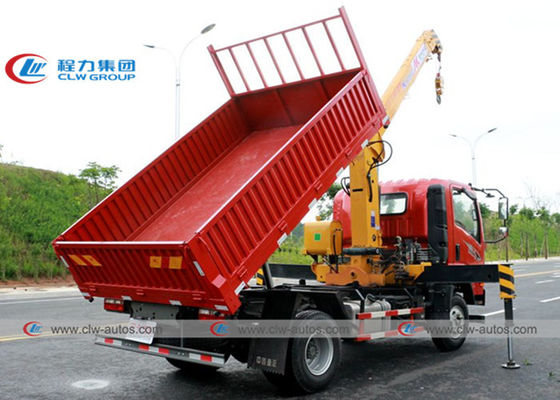

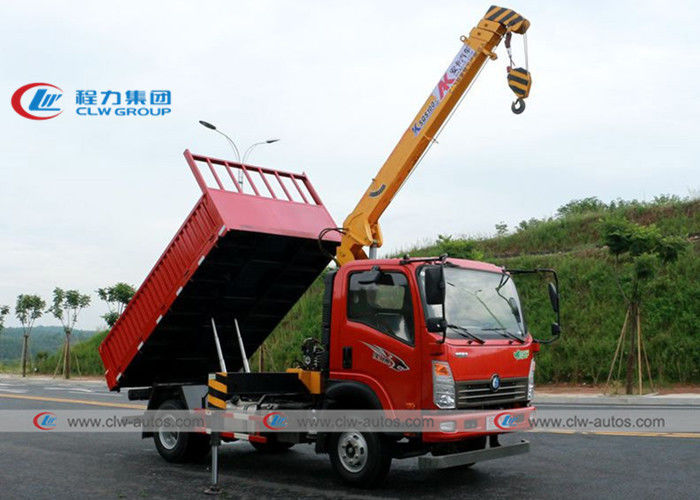

More Pictures of Small Tipper truck with crane:
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Delivery and Ship:
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
