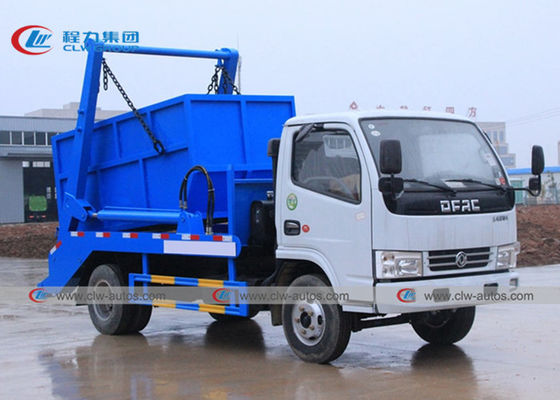

Dongfeng HOWO 4X2 4M3 5M3 Skip Loader Swing Arm Garbage Truck

تصویر بزرگ : Dongfeng HOWO 4X2 4M3 5M3 Skip Loader Swing Arm Garbage Truck

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210811

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
زمان تحویل:	30-35 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	فولاد کربن،	نام محصول:	بازوی چرخشی، لودر پرش با ظرف/سطل زباله
نوع درایو:	4X2 6WHEELS 6 WHEELER	مدل محرک:	فرمان چپ یا راست دست
ظرفیت بارگیری:	2 تن، 3 تن، 4 تن، 2 تن، 3 تن. 4T، 5T	برند کامیون:	Sinotruk HOWO، دانگ فنگ، shacman، FAW، FOTON، jac
نوع تاک:	کامیون جمع آوری زباله. کامیون تخلیه زباله	تجهیزات دیگر:	با سیستم هیراولیک
وضعیت:	برند دانگ فنگ/HOWO، کامیون کاملا نو
برجسته کردن:	4M3 Swing Arm Garbage Truck,Dongfeng 4X2 Swing Arm Garbage Truck,HOWO Skip Loader Garbage Truck , Dongfeng 4X2 Swing Arm Garbage Truck , HOWO Skip Loader Garbage Truck

Dongfeng/HOWO 4X2 4M3 5M3 Skip Loader Container Swing Arm Garbage Truck With Garbage Bin

Product Description

The swing arm container garbage truck can be used in urban erea and suburb.The container on the rear of the truck can be put down on the ground to gather garbage at a fixed location.when the container gathers full.the truck lift it on the flat bed on the rear of the truck.then dump the garbage in the garbage center.

Products Technical Specification
Chassis Brand	Dongfeng
Chassis Model	EQ1040TJ20D3
Fuel type	Diesel
Emission Standard	Euro 3
Cabin	Half row,with A/C
Whole Vehicle main dimensions (mm)	Overall dimensions (L×W×H)	599520002900
	Wheelbase	3300
	Front overhang	1250
	Rear overhang	1950
Weight(KG)	Gross weight	7365
	Cubic weight	3365
	Payload	4000
Max speed(km/h)	95
Engine	Model	CY4102
	Horse power	95HP
	Number of cylinders	6
	Displacement(ml)	3865
	Engine manufacture	Dongfeng Caoyang
Gear box	Manual/5 forward gears&1 reverse
Axle	Front axle payload	3.6ton
Axle	Rear axle playload	9 ton
Tyres	7.00-16
Upper description
Standard confirguration	Hydraulic system, lifting system, operating system ,oil tank, cabinet door pendulum, hanging barrels institutions etc.
	Volume	4CBM
	Box materials	Q235
	Thickness of box	5mm

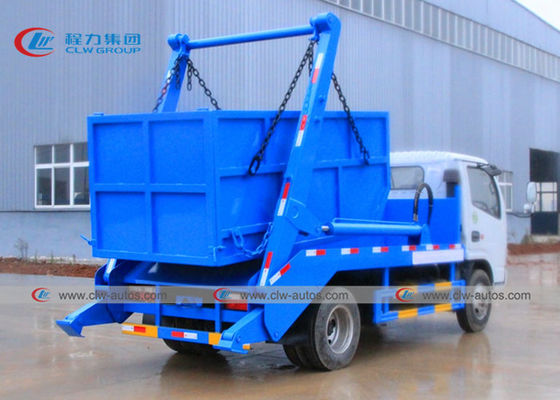

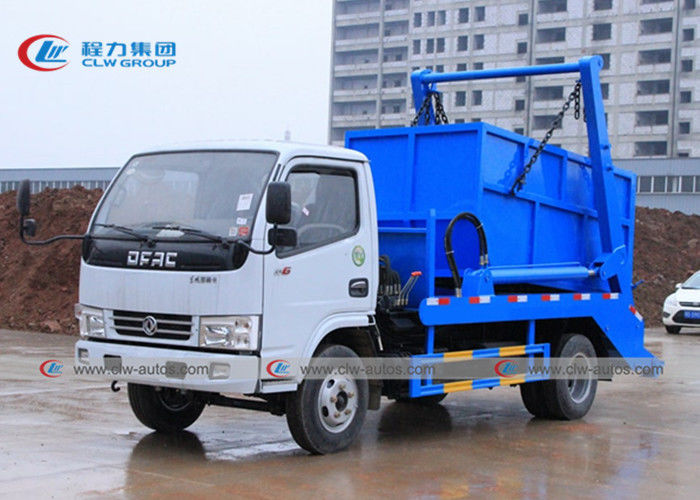

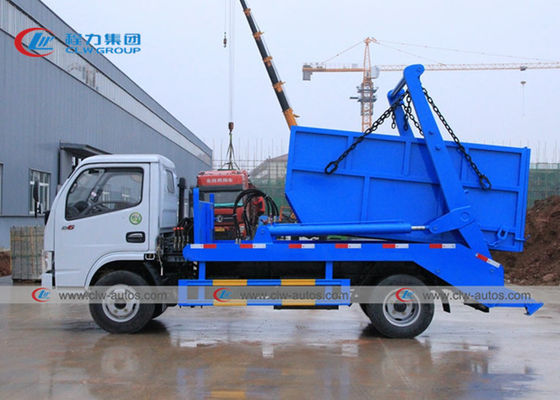

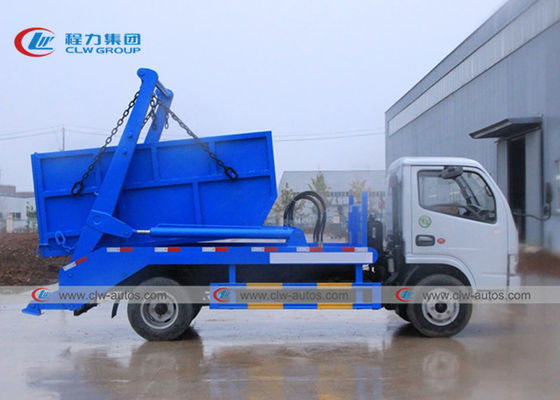

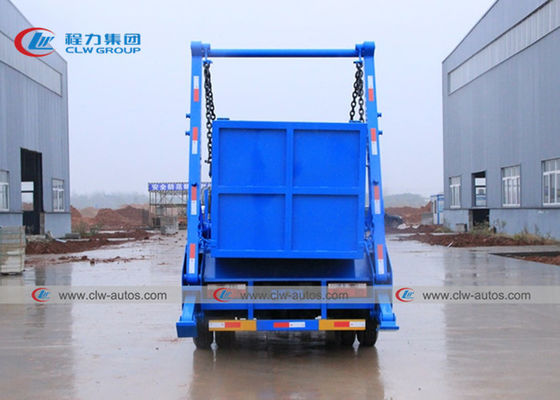

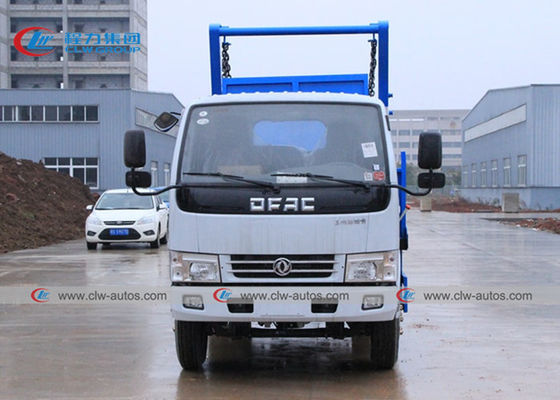

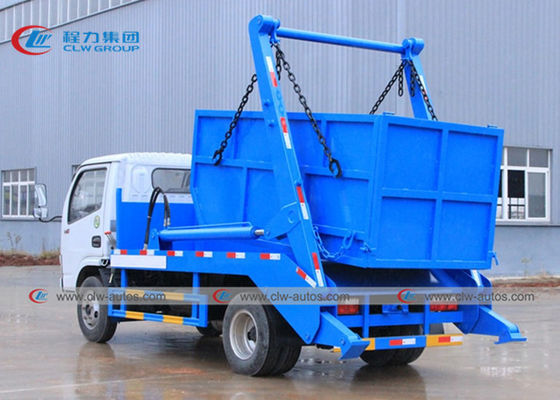

Dongfeng HOWO 4X2 4M3 5M3 Skip Loader Swing Arm Garbage Truck 0

Dongfeng HOWO 4X2 4M3 5M3 Skip Loader Swing Arm Garbage Truck 2

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
