Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck

Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck
Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck

تصویر بزرگ :  Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: CCC,SGS,BV
شماره مدل: CLW5987

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: US $31,520-36,500
جزئیات بسته بندی: برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل: 30 روز پس از دریافت سپرده
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
شاسی کامیون: دانگ فنگ، هوو، ISUZU، Shacman، CAMC، Foton اندازه کلی: 8250*2480*3310mm
ظرفیت مخزن: 11 تن / 11 CBM تایپ کنید: کامیون آتش نشانی مخزن آب، فوم، کامیون آتش نشانی پودر خشک، ماشین آتش نشانی نجات
صندلی های کابین: 2+3 پمپ آتش: مارک چینی
دامنه مانیتور آتش: ≥50 متر سرعت جریان مانیتور: 48 لیتر در ثانیه
سرعت جریان پمپ: 60 لیتر در ثانیه فرمان: LHD یا RHD
برجسته کردن:

11cbm Water Tank Fire Fighting Truck,Dongfeng 145 Fire Fighting Truck,Dongfeng 145 Fire Fighter Truck

,

Dongfeng 145 Fire Fighting Truck

,

Dongfeng 145 Fire Fighter Truck

Dongfeng 145 model 4x2 11000Liters 11cbm water tank forest protection fire engine Fire fighting Truck


Description


Fire fighting truck, which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire Fighting Trucks can be divided into several types:
1-- According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2-- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3-- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4-- According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-- There are also fire rescue truck with special purpose as follows,
-- Forest protection fire truck
-- Foam supply fire truck;
-- Compressed air supply fire fighting truck;
-- Water tower fire truck ;
-- Earthquake rescue fire truck



Specification

Overall Dimension(mm) 8250*2480*3310 Traction system 4*2, left hand drive
Gross weight(kg) 15550 Curb weight(kg) 8100
Wheel base (mm) 4500 mm Axle number 2
Front/Rear suspension(mm) 1430/2070 Front/Rear track base (mm) 1880/1860
Approaching/Departure Angle(°) 24/12(°) Rated load(kg) 2000
Cab Dual Cab, 2+3 seats, with air condition, alarm, lamp etc. Maximum speed(km/h) 90
Number of Tyres 6 (1 spare piece) Tyre type 10.00R20
Working Range Water ≥40 m Tank Capacity water tanker Foam Tanker Dry powder
      7000L
Transmission 5 forwarder,1 reverse gear,manual operation Horse Power 190 HP

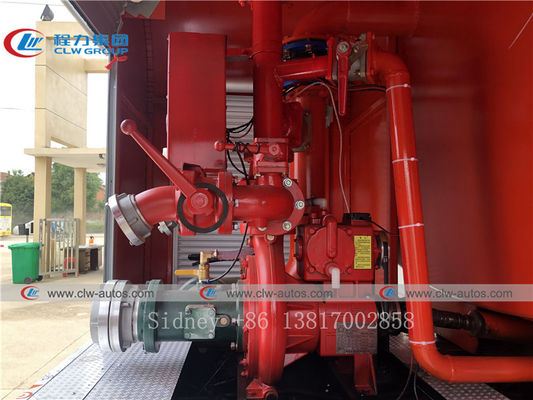

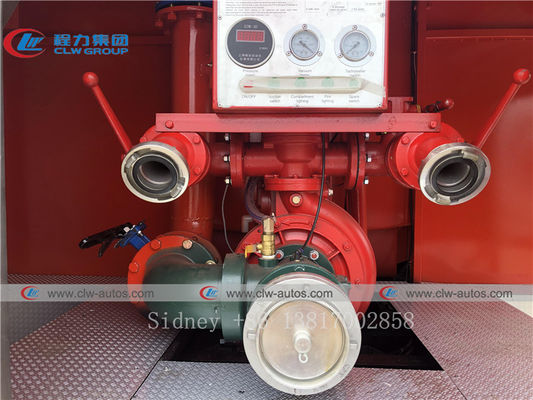

Fire Pump

1 Normal pressure fire pump Model number: BS40 flow rate:40L/S,

Pressure :1.0Mpa
2Middel and normal pressure fire pump Model number: CB20.10/10.20 Low-pressure flow:20L/S/1.0Mpa
Medium-pressures flow 10L/S/2.0Mpa
3Time of drawing water: ≤35s(When the suction height is 7m)

Fire Monitor Model PS20
Flow20 L/S
Pressure1.0~1.2MPa
Fire distance (water)Water ≥40m
Power take-off Electromagnetic valve control
  Adjustable water-cooled
  Splash oil lubrication
Other Equipment Light Bar, Remote control lamp, Flashing lights, Alarm,signs, etc.

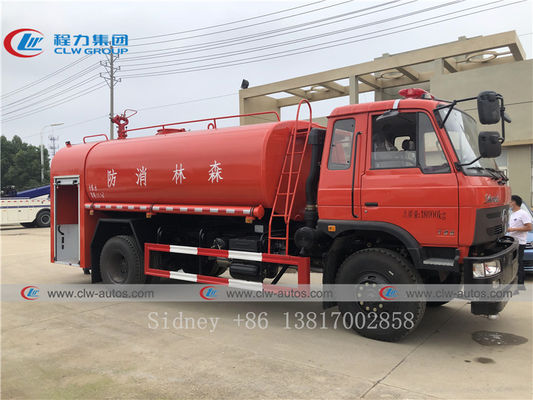

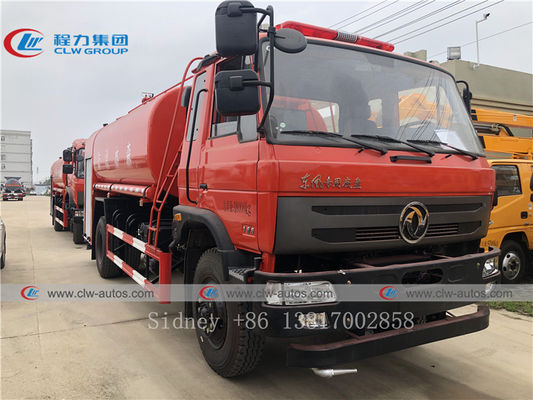

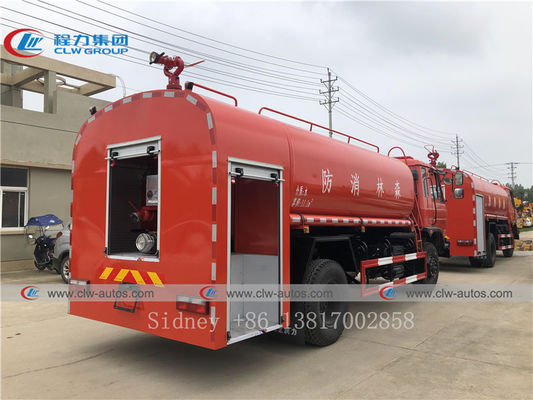

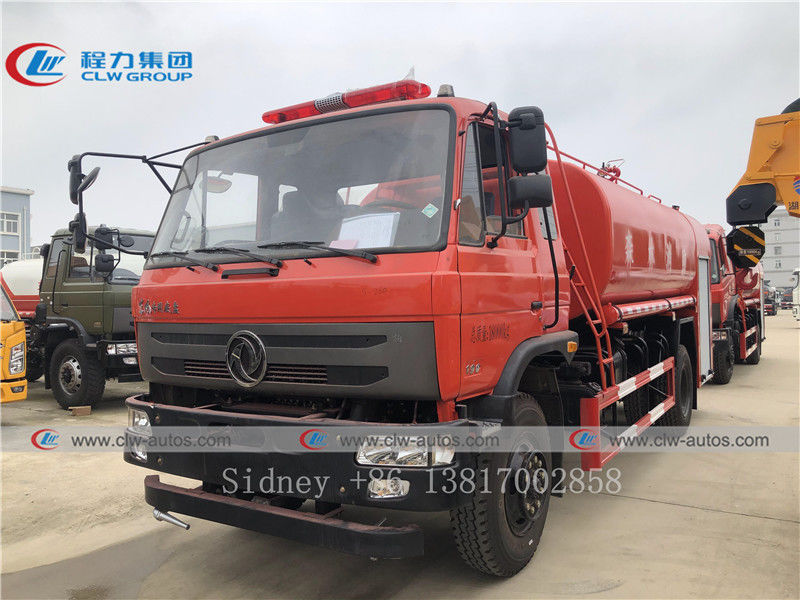

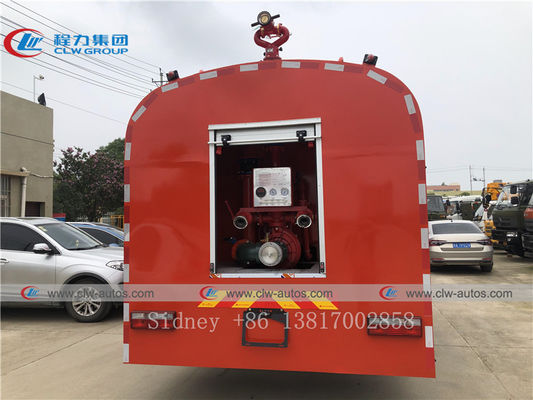

Products Show

Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 0Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 1

Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 2Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 3Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 4



Equipment of fire rescue fighter truck
Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 5

Production of fire rescue fighter truck

Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 6


Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 7

Factory overview
Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 8
Dongfeng 145 4x2 11cbm Water Tank Fire Fighting Truck 9

The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.


FAQ



Q1: What kinds of fire enigne truck  I can order from your company?


A: There are various sizes and types of fire enigne truck with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied fire enigne truck to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
