SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck

تصویر بزرگ : SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	BV, SGS, CCC
شماره مدل:	CLW5847

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	USD31500 - 42530
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، Ro-Ro
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

نام تجاری:	برندهای معروف چینی مانند Sinotruk Howo، CAMC، Shacman، Foton، North-benz، JAC، ISUZU و غیره.	ظرفیت بارگیری:	20 تن، 25 تن، 30 تن
نوع بلند کردن:	نوک جلو، نوک وسط	مارک سیلندر روغن:	برند بین المللی HYVA یا برند چینی
مواد دامپر:	کیفیت بالا Q345B	ضخامت دامپر:	پایین 8 میلی متر، سمت 6 میلی متر، یا به عنوان درخواست مشتری
رنگ:	سفید، قرمز، زرد، سبز یا به درخواست مشتری	گارانتی:	1 سال
برجسته کردن:	SINOTRUK HOWO Heavy Duty Dump Truck,25T Heavy Duty Dump Truck,20T Heavy Duty Tipper Truck , 25T Heavy Duty Dump Truck , 20T Heavy Duty Tipper Truck

SINOTRUK HOWO 6x4 290hp 20-25Ton Heavy Duty Mining Stone Sand Dump Tipper Truck DumpTruck for Construction Mining Transportation

Product Description
1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.

Product Specification

Vehicle Main Dimensions	Overall dimensions (L x W x H)(mm)	7934×2496×3370
	Wheel base (mm)	3225+1350
	Wheel track (front/rear) (mm)	2020/1800
	Approach/Departure angle(°)	19/24
Weight in KGS	Tare Weight	12460
	payload	28000
	Front axles loading capacity	1x9000
	Rear axles loading capacity	2x16000
Max. driving speed(km/h)		85
Engine	Brand	Sinotruk
	Model	WD615.87
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	290 @2200 rpm
	Emission standard	Euro II
Gearbox	HW15710, 10 Forwards gear & 1 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	400
Tire	12R22.5 tubeless tyre, Triangle Brand, 10+1 pcs
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Tipper body size	540023001500 mm, side is 6 mm, front and bottom 8 mm
Hydraulic system	Middle positioned

Product Show

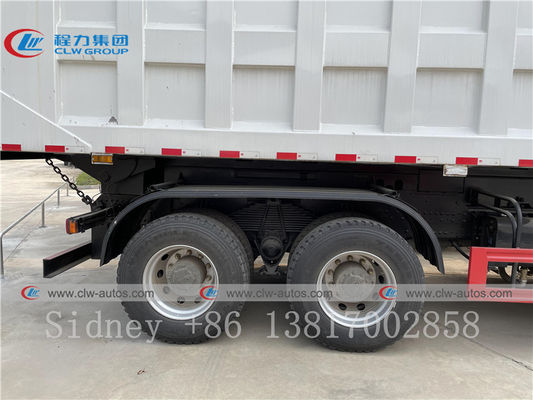

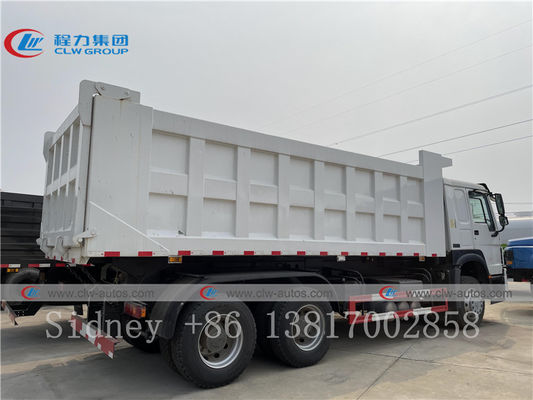

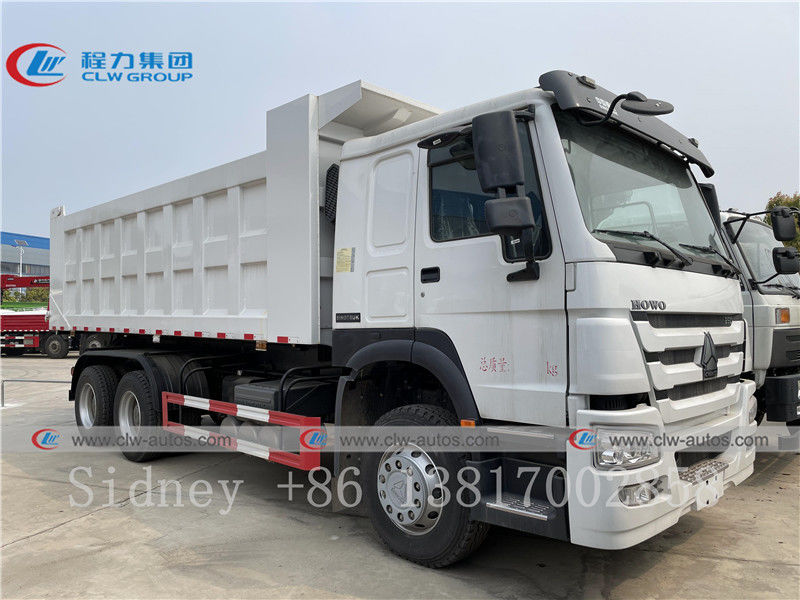

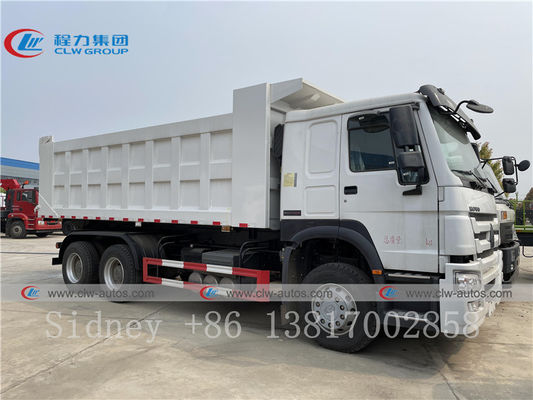

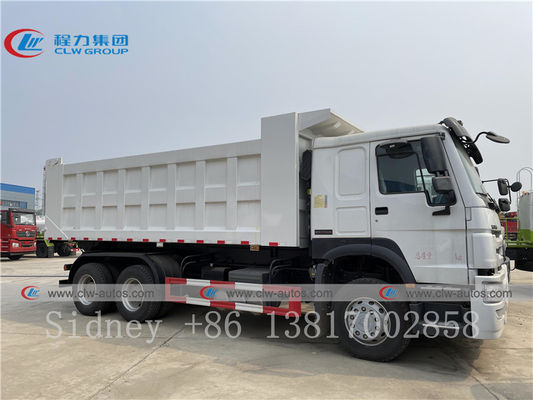

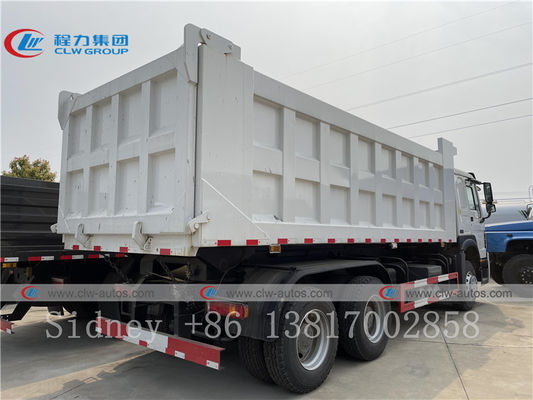

SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck 0

SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck 1

SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck 2

Related products

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.

FAQ
Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
