Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

تصویر بزرگ : Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	BV, SGS, CCC
شماره مدل:	CLW0571BP

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، Ro-Ro
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

نام تجاری:	برندهای معروف چینی مانند Sinotruk Howo، CAMC، Shacman، Foton، North-benz، JAC، ISUZU و غیره.	ظرفیت بارگیری:	30 تن، 40 تن، 50 تن
نوع بلند کردن:	نوک جلو، نوک وسط	مارک سیلندر روغن:	برند بین المللی HYVA یا برند چینی
مواد دامپر:	کیفیت بالا Q345B	ضخامت دامپر:	پایین 10 میلی متر، سمت 8 میلی متر، یا به عنوان درخواست مشتری
رنگ:	سفید، قرمز، زرد، سبز یا به درخواست مشتری	لوگو و نقاشی:	طبق درخواست مشتری
زمان تحویل:	30-35 روز کاری	گارانتی:	1 سال
برجسته کردن:	40T Tipper Dumper Truck,Sinotruk Howo 6x4 Tipper Dumper Truck,Howo 6x4 Heavy Duty Dump Truck , Sinotruk Howo 6x4 Tipper Dumper Truck , Howo 6x4 Heavy Duty Dump Truck

Brand New Sinotruk HOWO 40tons 6X4 Dump Truck Tipper Dumper Truck

Product Description

1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.

Product Specification

Cabin		HOWO 76 Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H) mm			886024963450
	Wheel base (mm)			3825+1350
	Wheel track (front/rear) (mm)			1500/1525
	Approach/Departure angle(°)			19/24
Weight in KGS	Tare Weight				12390kg
	Loading Capacity				40000kg
	Front axles loading capacity				HR9 1x9000kg
	Rear axles loading capacity				HC16 2x16000kg
Max. driving speed(km/h)						85
Engine			Brand				Sinotruk Howo
			Model				WD615.47
			Type				4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
			Horse Power(HP)				290HP
			Emission standard				Euro 2
Gearbox			HW19710, 10 forwards & 2 reverse
Clutch			Reinforced diaphragm clutch, diameter 430mm
Steering Gear			ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L)			300
Tire			12R22.5 tubeless tire,10 pieces with one spare
Brakes			Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

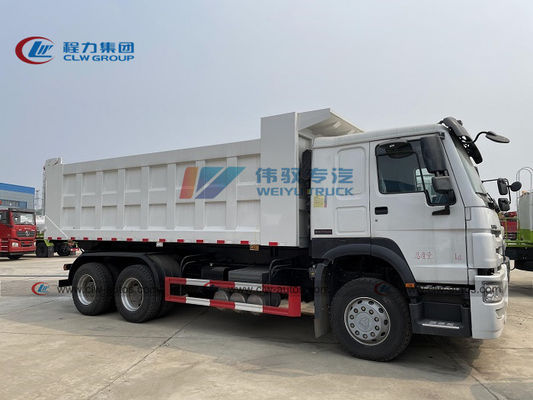

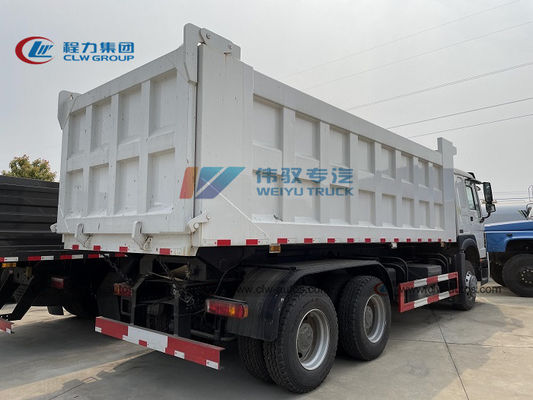

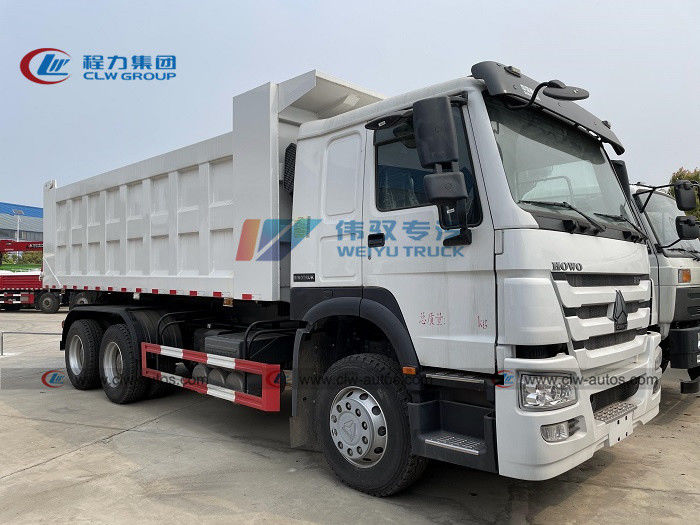

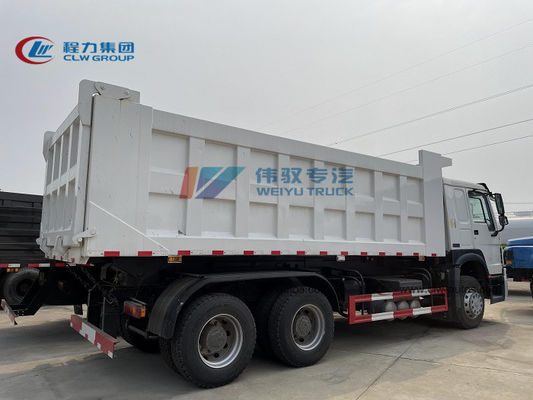

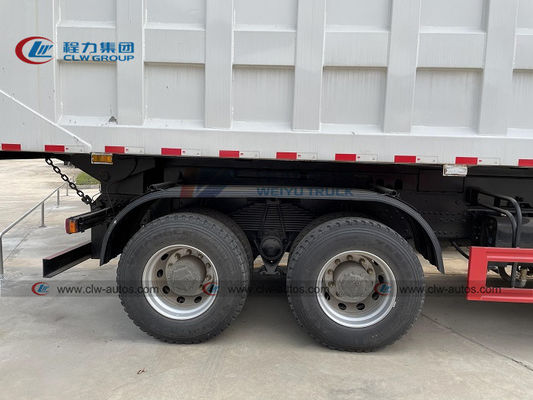

Reference Photos
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 1

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 2

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 3

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 4

Other Related Dump Trucks
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 5

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
