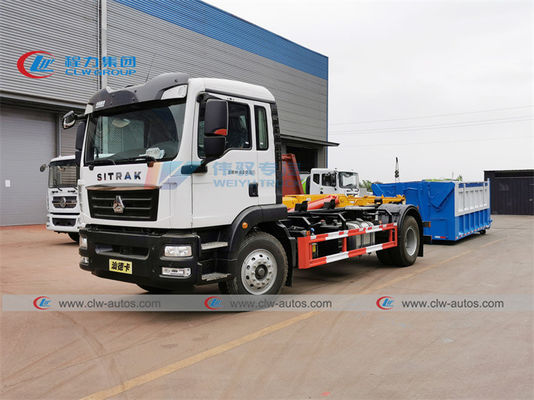

Pull Arm Construction Sinotruk SITRAK LHD trash transport truck

تصویر بزرگ : Pull Arm Construction Sinotruk SITRAK LHD trash transport truck

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW / Chengli
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW5080GB

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم، کشتی فله، رو-رو
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

ماده جعبه:	کربن فولاد Q235B	برند کامیون:	SINOTRUK SITRAK
موتور کامیون:	Sinotruk 290HP	جعبه دنده:	510 جلو و 2 عقب
لاستیک:	12R22.5، 315/80222.5	فرمان:	چپ دستی
ظرفیت قلاب بالابر:	15ton	طول جعبه:	4500 میلی متر
عرض جعبه:	2200 میلی متر	ارتفاع جعبه:	1200 میلی متر
راه تخلیه:	تخلیه عقب	راه های کنترل:	هیدرولیک
سیلندر هیدرولیک:	هیوا یا برند چینی	پمپ هیدروالیک:	برند ایتالیایی
دریچه هیدرولیک:	SIEMENS یا Zhongmei	ساق پا:	عقب نصب شده
برجسته کردن:	LHD Trash Transport Truck,Sinotruk SITRAK Trash Transport Truck,Sinotruk SITRAK Trash Pick Up Truck , Sinotruk SITRAK Trash Transport Truck , Sinotruk SITRAK Trash Pick Up Truck

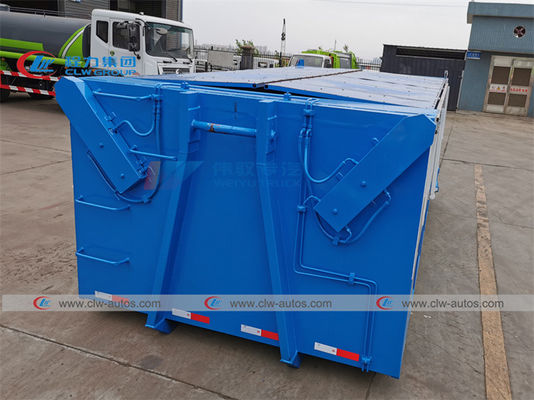

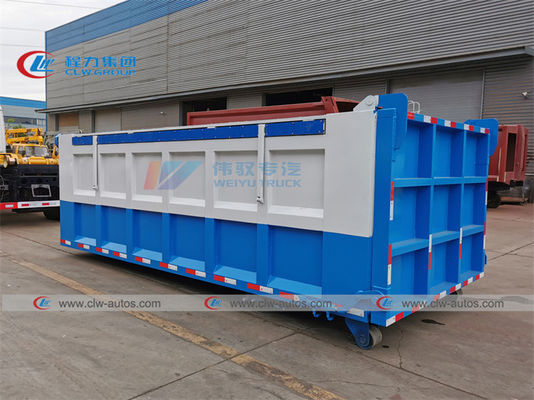

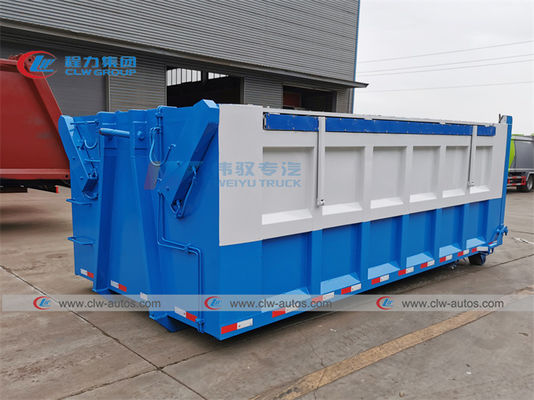

Pull arm construction garbage Trasnport truck for 15 ton Dumping Box with cover

Product Description

Equipped with 220 HP Or 245 horsepower engine, Vehicle model: HDW5188ZXXZ6,
G5-M cab, 8-speed gearbox,
4.5T front axle, 9T rear axle,
Double-layer frame (7+4/250),
Bosch steering gear, SBS (4-channel brake),
10.00R20 tires, 200L fuel tank,
Airbag seat, original air conditioning, cruise control, electric glass,
Adjustable multifunctional steering wheel, central control door lock + remote control key, etc.

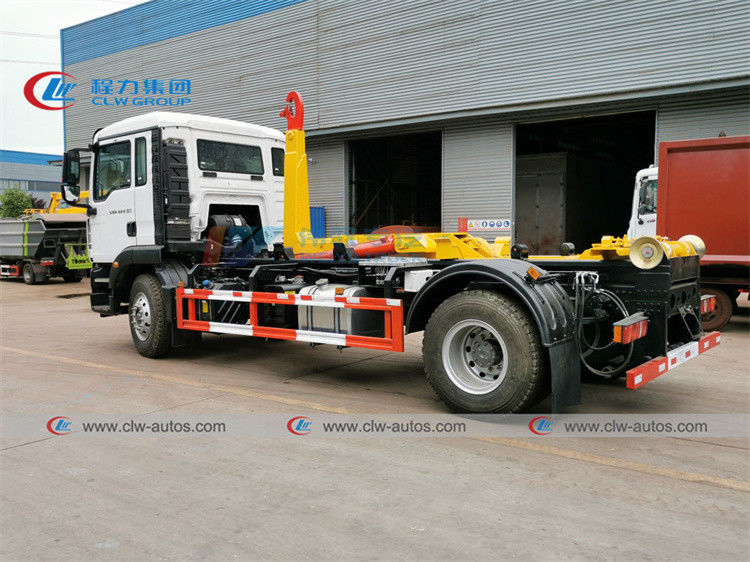

Hook arm upper mounting structure

1. Hydraulic system

2. High-strength alloy steel one-piece main hook arm

3. Reinforced hook

4. Reinforced sub-beam

5. Cast steel tailstock wheel

6. Explosion-proof oil pipe

7. Hydraulic cylinder

8. Locking mechanism

9. Electric control and hydraulic operating device

Others: 5000kg lifting capacity, can be equipped with 5-30 trash bins, fixed-point placement, circular transportation.

Hydraulically complete loading, unloading, locking, self-unloading and other operations.

Sinotruk 14Ton Construction Garbage Transport Truck
Brand	CLW Brand	Model No.	HDW5188ZXXZ6
Overall Weight(kg)	18000 kg	Tare Weight(kg)	8290
Loading Weight (Kg)	9,780	Overall Size (mm)	7570 x 2500 x 3855
Passenger Allowed (persons)	2,3	Approaching/Departure Angle (°)	16/19,16/21
Axle Loading Weight(kg)	6500/11500	Front/Rear overhang (mm)	1450/1420
Max Speed (km/h)	110	Remark	Design for garbage transport

Chassis Specification
Chassis No.	ZZ5186XXYK501GF1	Chassis Type	Special Chassis
Brand	Sinotruk	Wheel Base(mm)	4500mm
Axle Quantity	2	Tire Quantity	6
Tire Size:	295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR
Leaf Spring:	11/9+8	Front Wheel Track (mm):	1900
Fuel Type:	Diesel	Rear Wheel Track (mm):	1850
Engine Model	Manufacturer	Displacement(ml)	Power(Kw)
MC05H.20-60	Sinotruk	4910	147
MC05H.23-60	Sinotruk	4910	166
MC05H.25-60	Sinotruk	4910	180
MC07.25-60	Sinotruk	6870	188
MC07.27-60	Sinotruk	6870	202
MC07.29-60	Sinotruk	6870	213
MC07H.29-60	Sinotruk	7360	213
WP4.6NQ220E61	Weichai Power	4580	162
WP6H245E61	Weichai Power	6220	180
WP6H270E61	Weichai Power	6220	199
WP7.270E61	Weichai Power	7470	199
WP7.300E61	Weichai Power	7470	220

Product Photos

Structure of waste collection truck

1) Rolling polley:at two rear sides of garbage truck and adapts high tensile steel

2) Main arm hook

3) Knocking hook

4) Double oil cylinders

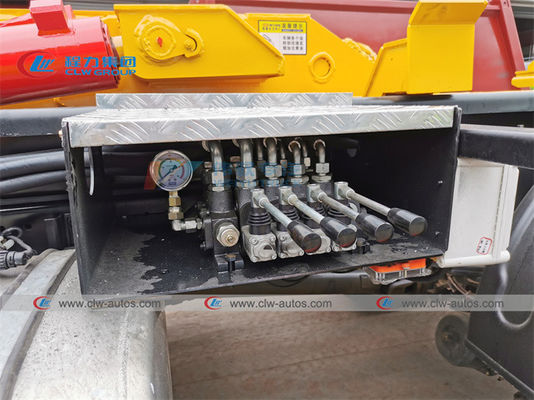

5) Multi-way valve system

6) One-key control in cabin and easy for operation

Pull Arm Construction Sinotruk SITRAK LHD trash transport truck 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of container hook lift truck I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied container hook lift truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered container hook lift trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
