3T Double Row Cabin Road Maintenance Dumper Truck

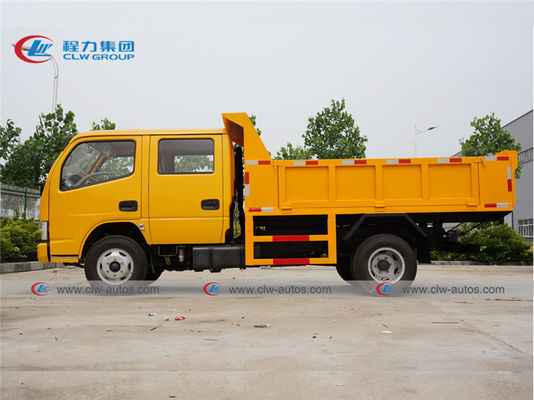

تصویر بزرگ : 3T Double Row Cabin Road Maintenance Dumper Truck

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW / Chengli
گواهی:	CCC,ISO,
شماره مدل:	CLW5044

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	20-30 روز
قابلیت ارائه:	600 واحد در ماه

مخاطب

توضیحات محصول جزئیات

کابین:	دو ردیف	مسافر:	5-6 نفر
جعبه دنده:	5 رو به جلو و 1 برعکس	محور:	2.3 تن جلو، 4.5 تن عقب
سیستم انعام دادن:	اوج متوسط یا اوج جلو	سیلندر نوک:	هیوا یا برند چینی
نوع جعبه:	شکل مربع یا گرد	اندازه جعبه:	400x2100x550 میلی متر
وزن بارگیری:	3ton
برجسته کردن:	3T Road Maintenance Dumper Truck,Double Row Cabin Dumper Truck,3T Tipper Truck , Double Row Cabin Dumper Truck , 3T Tipper Truck

Double Row Cabin Road Maintenace 3Ton Dump Truck with Auto Tipping

Product Description

Dongfeng Furica Dump Truck Series

Double-row cabin, seat 5 or 6 people
3300 wheelbase 3. Xichai 98 horsepower,
Wanliyang 5-speed with auxiliary gearbox,
Front axle 1.8T, rear axle 3.5T, 188*5 Girder,
7.00R16 steel wire tire,
Air brake, clutch assist, ABS,
Air conditioning, electric doors and windows, central locking.
Big box size: 3200*1880*400
Vehicle size: 5995*1980*2270
Total weight: 4495kg
Rated quality: 1495kg
Curb weight: 2675kg

Specification of Dumper Truck

Dimension(L×W ×H)(unloaded)(mm)		6300 x 2500 x 3300
Cargo body size (L×W×H)(mm)		4200 x 2100 x 550mm
Approaching angle/Departure angle(°)		19/26
Overhang(front/rear) (mm)		1500/1739
Wheel base (mm)		33000
Max speed(km/h)		75
Curb weight(kg)		(Kg)
Loading Weight(kg)		(Kg)
Engine	Model	CY4103
	Fuel type	Diesel
	Displacement (ml) Power(kw)	3450 88
	Emission	EURO 2
Fuel tanker capacity(L)		150
Transmission	Model	5 Forward & 1 Reverse
Brake system	Service brake	air brake
Brake system	Parking brak	spring energy, compressed air operating on rear wheels
Steering system	Model	Hydraulic
Front axle	Steering with double T-cross section beam
Rear axle	Cast axle housing, central double reduction with differential locks between axles and wheels
Tyre	7.00-16
Electrical system	Battery	12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V

Product Photos

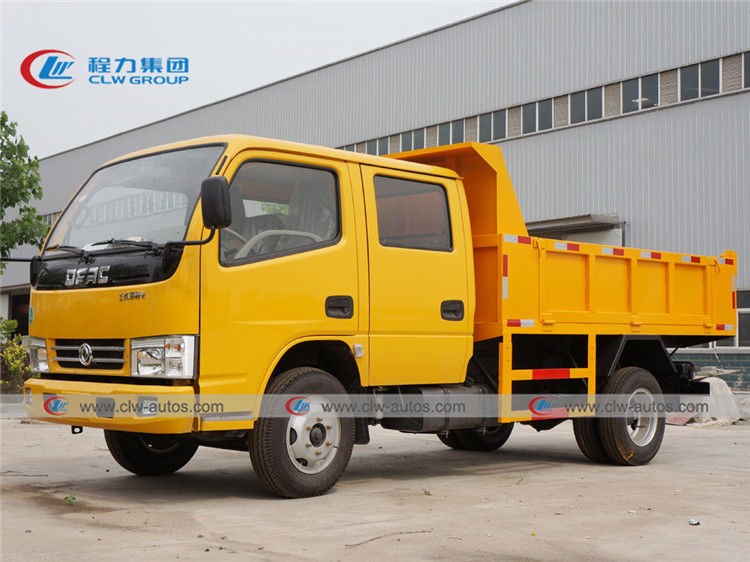

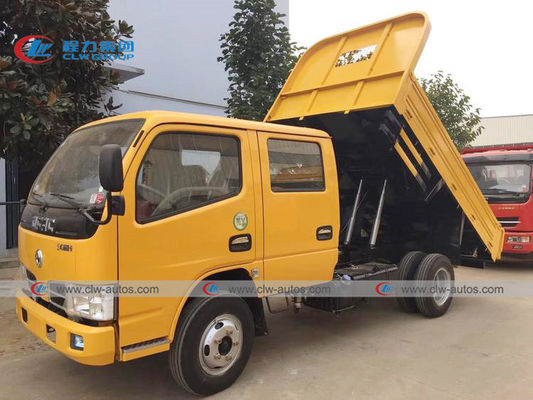

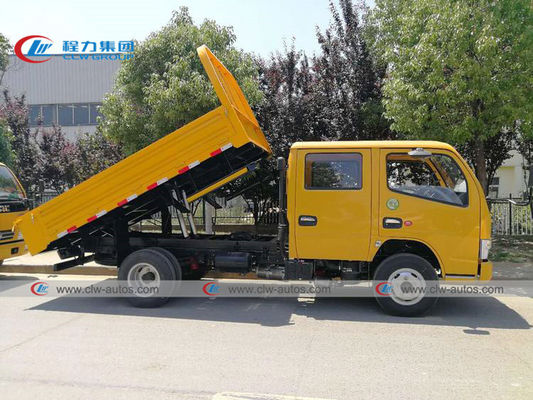

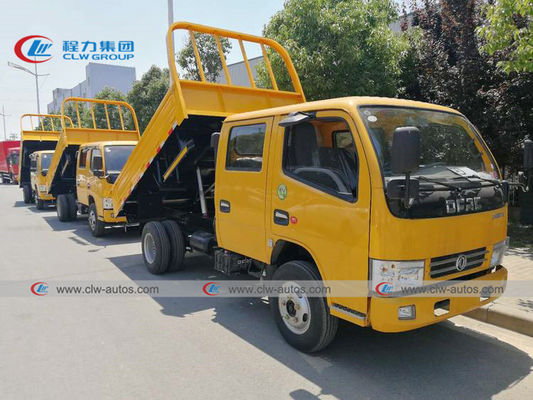

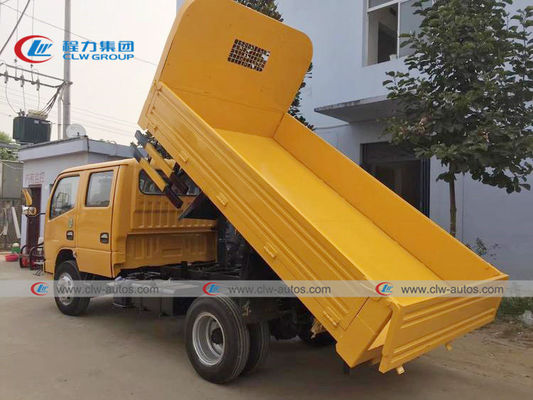

3T Double Row Cabin Road Maintenance Dumper Truck 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dump truck to any overseas companies?

A: Yes,with need of government project,we offered dump trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
