HOWO 6X4 336HP Heavy Duty Truck With 14t Straight Telescopic Arm Crane

تصویر بزرگ : HOWO 6X4 336HP Heavy Duty Truck With 14t Straight Telescopic Arm Crane

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, BV, SGS
شماره مدل:	CLW5532

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه بسته بندی شده با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

وضعیت:	جدید	برند شاسی:	Sinotruk Howo، Dongfeng، Foton، FAW، JAC، JMC، ISUZU و غیره.
مارک موتور:	WD615.69، 336 اسب بخار	جعبه دنده:	سریع، 10 به جلو و 2 معکوس
برند جرثقیل:	SANY، XCMG، CHENGLI، و غیره.	نوع بوم جرثقیل:	جرثقیل تلسکوپی مستقیم، جرثقیل بند انگشتی
حداکثر بار:	8 تن	نوع بوم:	بوم تلسکوپی 4 بازوی مستقیم
مواد محموله:	فولاد کربن Q235	ضخامت بار:	سمت 2 میلی متر، پایین 3 میلی متر
ویژگی:	جرثقیل کامیون	برنامه:	ساخت و ساز، جرثقیل کامیون
رنگ:	بستگی دارد	مبدا:	100% چین
گارانتی:	1 سال
برجسته کردن:	336HP Heavy Duty Truck,HOWO Heavy Duty Truck,6X4 HOWO Truck , HOWO Heavy Duty Truck , 6X4 HOWO Truck

Customized 6x4 Howo 336hp heavy duty Truck with 14ton Straight Telescopic Arm crane

Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Specification

Products Technical Specification
Chassis Brand		Sinotruk-HOWO
Chassis Model		ZZ1257
Fuel type		Diesel
Emission Standard		Euro 2
Cabin		HW76, with A/C, one bunk Left hand Drive
Whole Vehicle main dimensions (mm)	Overall dimensions (L×W×H)	1010025003710
	Cargo body size	60002300600
	Wheel base	4600+1350
	Front overhang	1500
	Rear overhang	2650
Weight data (kg)	G.V.W	25000
	Curb weight (chassis)	16100
	Max payload	15000 ~20000kg
Engine	Model	WD615.69
	Maximum power	247kw / 336hp
	Number of cylinders	6
	Displacement (L)	9.726
	Engine Manufacturer	CNHTC
Gear box	Model	HW19710
	Number of gears	10 forward gears & 2 reverse
Axle	Front / Rear Load capacity (ton)	HF7 / ST16
Suspension	Front / Rear	10- Leaf spring / 12 leaf spring
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Tyres & Quantity		12R22.5 & 10+1
Crane Description

Type		Straight arm crane Telescopic boom
Model		SQ14S
Max Lifting Capacity (kg)		14000
Maximum lift height (m)		17.8
Max Lifting Moment (t.m)		35
Recommend Power (kw)		32
Max Oil Flow of Hydraulic System (L/min)		63
Max Pressure of Hydraulic System (MPa)		26
Oil Tank Capacity (L)		160
Rotation Angle (°)		All Rotation
Crane Weight (kg)		4800
Installation Space (mm)		1300
Working radius (m)		2.5	5	8	11	13.2	15.8
Lifting capacity (kg)		14000	6000	3500	2300	1800	1200

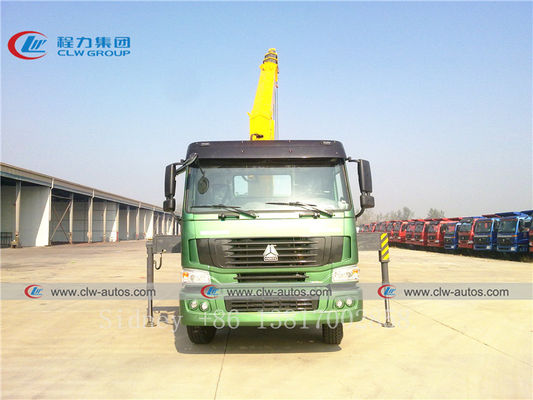

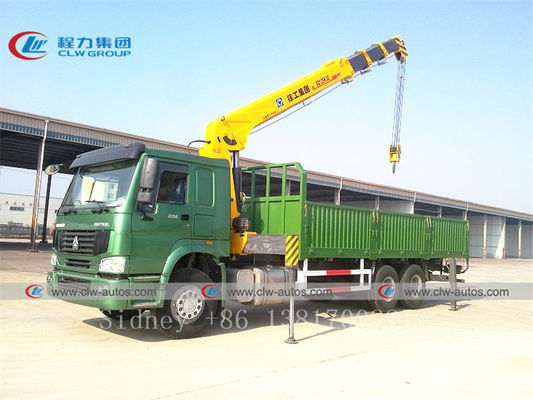

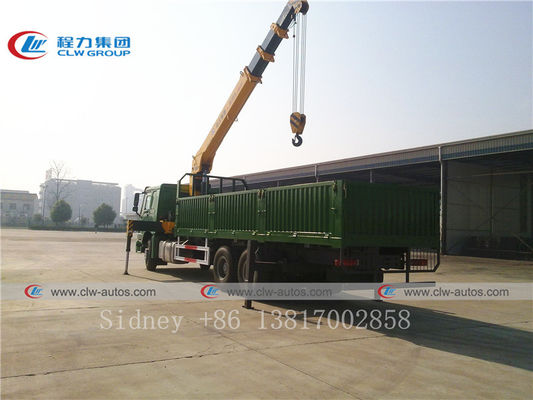

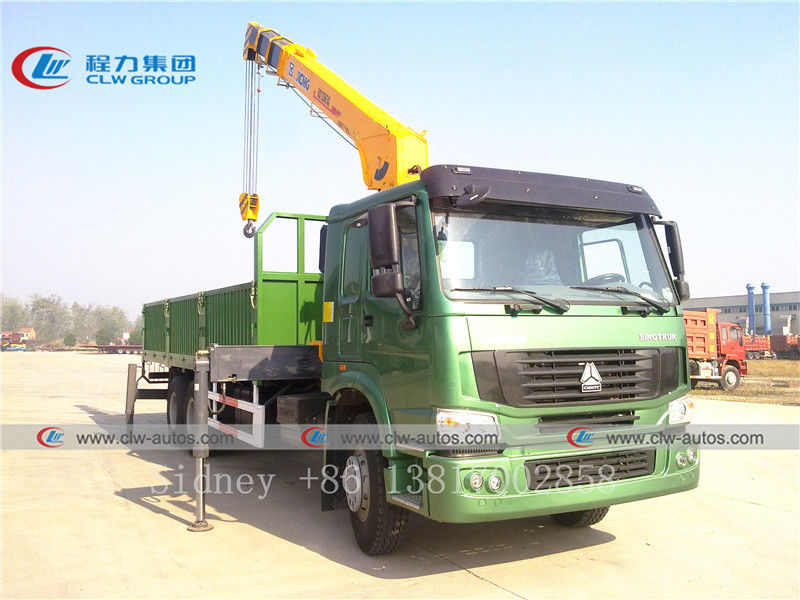

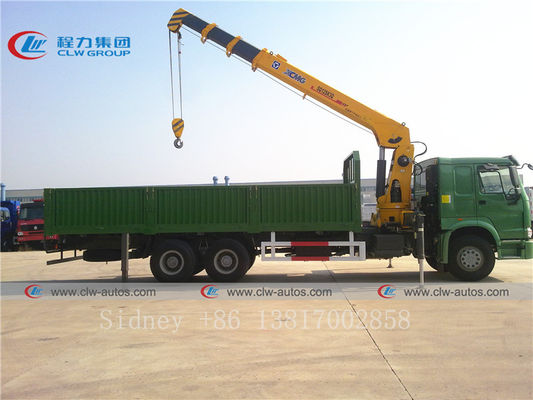

Reference Photos

HOWO 6X4 336HP Heavy Duty Truck With 14t Straight Telescopic Arm Crane 0

Crane Details

Working Situation

Sales Service

1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
