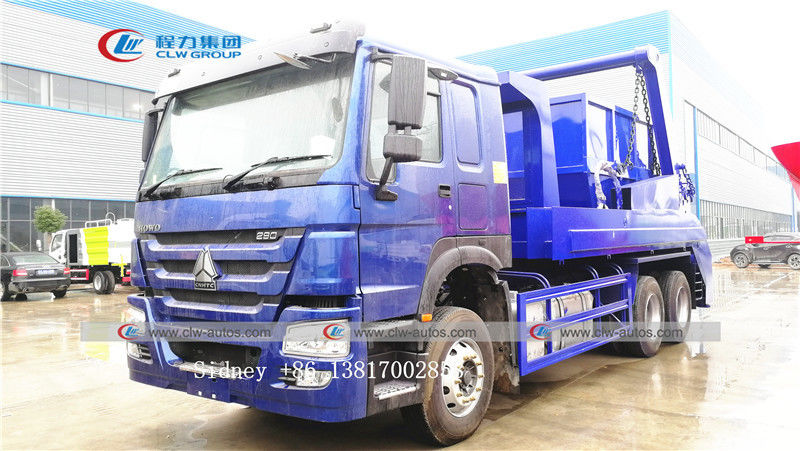

12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck

تصویر بزرگ : 12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, BV, SGS
شماره مدل:	CLW5143

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، فوتون، ایسوزو، سینوتروک و غیره	اندازه قیف:	12cbm، نوع زمین
ظرفیت بارگیری:	10 تن	ضخامت هپر:	5 میلی متر، کربن فولاد Q235B
مواد محافظ:	فولاد کربن Q235A	مقدار قیف:	طبق درخواست مشتری
نوع زباله:	بالابر و بارگیری سیلندر هیدرولیک	راه کنترل:	شیر کنترل هیدرولیک سه طرفه
رنگ:	طبق درخواست مشتری	گارانتی:	1 سال
برجسته کردن:	6X4 Swing Arm Garbage Truck,Sinotruk HOWO Swing Arm Garbage Truck,12cbm Garbage Disposal Truck , Sinotruk HOWO Swing Arm Garbage Truck , 12cbm Garbage Disposal Truck

SINOTRUK HOWO 12CBM 6X4 Swing-Arm type garbage truck

Description

The swing arm type garbage truck is divided into two types: the ground type and the pit type. The swing arm garbage bucket has two types of square and boat type. The vehicle is equipped with one or more garbage buckets, and the garbage bucket is placed or placed by two swing arms.

1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;

2. Easy Full Automatic Operation: electrical control system for loading and unloading operations.

3. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.

Specification

SINOTRUK HOWO 4X2 Swing-arm Garbage Truck
Cabin	with one sleeper, with two seats, with A/C,70° hydraulically tillable to the front
Vehicle Main Dimensions	(L x W x H)mm	7600x2500x3900
	Wheel base (mm)	4200
	Wheel track (front/rear) (mm)	1900/1860
	Approach/Departure angle(°)	16/17
Weight in KGS	Tare Weight	6635
	Loading Capacity	10000
	Front axles loading capacity	1x5000
	Rear axles loading capacity	1x13000
Max. driving speed(km/h)		95
Engine	Brand	YUCHAI
	Model	YC6J190
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	190 HP
	Emission standard	Euro 2
Gearbox	DC6J65TC, 6 forwards & 1 reverse
Clutch	Push type diaphragm spring clutch, diameter 395 mm
Tire	9.00-20, All nylon tire, 7pieces
Garbage System	1, Box Size: 12 CBM matched 2,PTO motivated hydraulic system 3,Hydraulic cylinder: two cylinders with lifting arm and two cylinder with landing leg

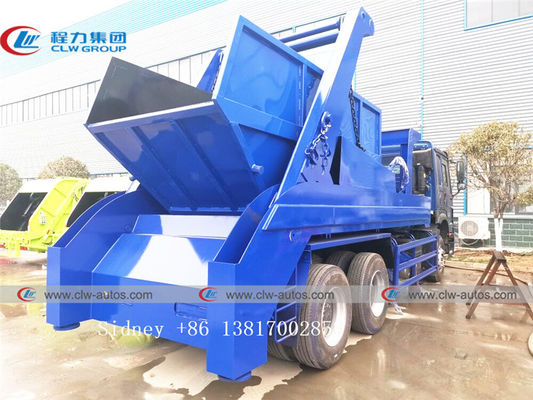

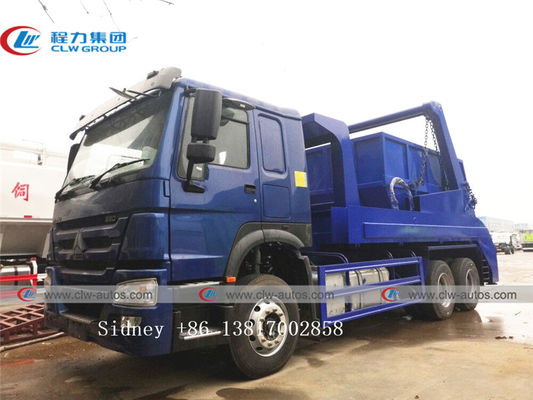

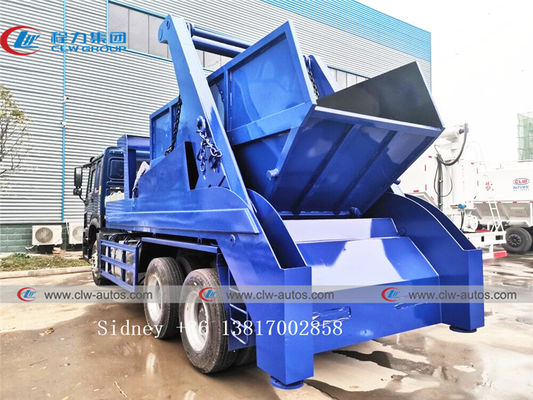

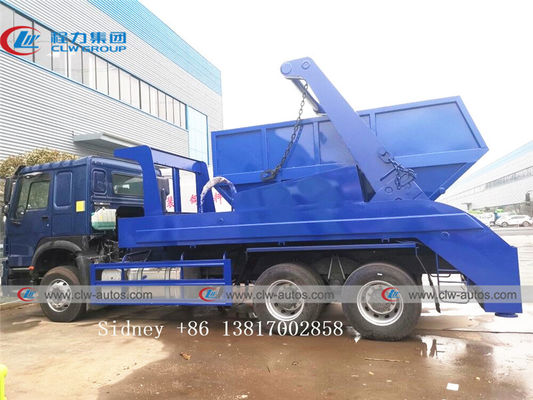

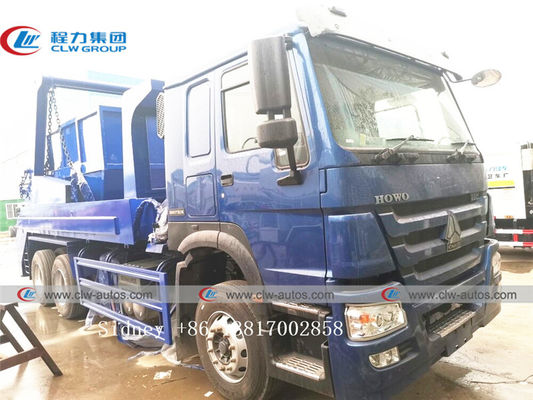

Reference Photos

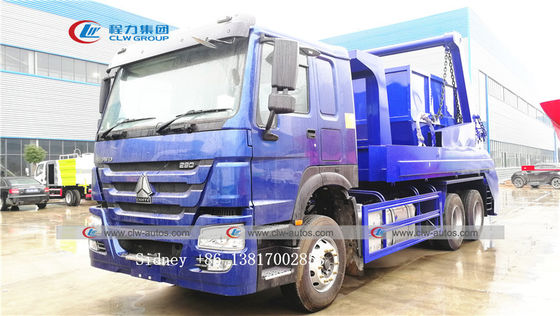

12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck 3

Main Structure and Details

Main Parts

Bulk Order of 120 Units to Madagascar

Different Types of Garbage Truck

Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage Truck?
A: China GB local standard.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
