Sinotruk HOWO 4X2 6cbm Water Foam Tank Firefighter Truck

Name: Sinotruk HOWO 4X2 6cbm Water Foam Tank Firefighter Truck
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: CLW544D
Price: 34.00 USD
Availability: InStock

تصویر بزرگ : Sinotruk HOWO 4X2 6cbm Water Foam Tank Firefighter Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,SGS,BV
شماره مدل:	CLW544D

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	US $21,098-47,540
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

شاسی کامیون:	دانگ فنگ، هوو، ISUZU، Shacman، CAMC، Foton	ظرفیت:	2 تن، 3 تن، 5 تن، 6 تن، 8 تن، 10 تن، 12 تن، 14 تن، 16 تن
تایپ کنید:	کامیون آتش نشانی مخزن آب، فوم، کامیون آتش نشانی پودر خشک، ماشین آتش نشانی نجات	پمپ آتش:	مارک چینی
دامنه مانیتور آتش:	≥50 متر	سرعت جریان مانیتور:	48 لیتر در ثانیه
سرعت جریان پمپ:	60 لیتر در ثانیه	فرمان:	LHD یا RHD
برجسته کردن:	6cbm Water Foam Tank Firefighter Truck,Sinotruk HOWO Firefighter Truck,4X2 Fire Fighting Vehicle , Sinotruk HOWO Firefighter Truck , 4X2 Fire Fighting Vehicle

Sinotruk Howo 4x2 6CBM 6000Liters Water and foam Tank Fire Fighting Truck

Product Description

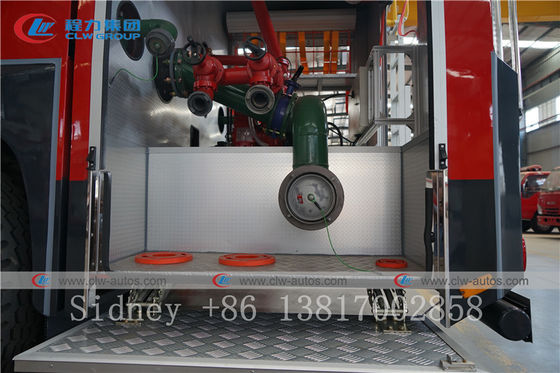

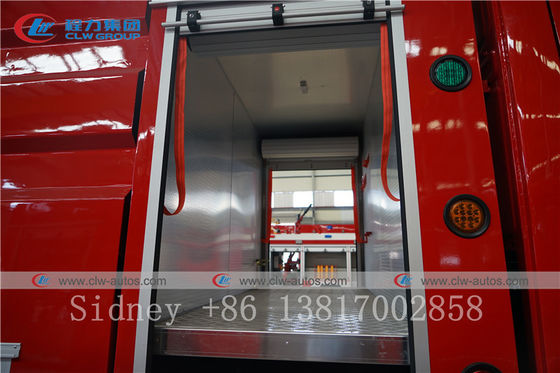

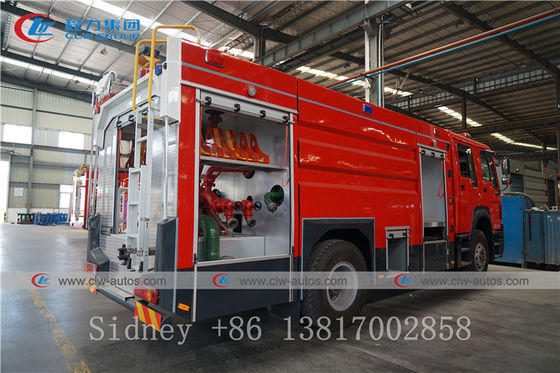

1) HOWO 4X2 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

Specifications

Vehicle Parameters
General	Vehicle Brand	CLW
	Chassis Brand	SINOTRUK HOWO(LHD)
	Overall Dimension(mm)	7925×2505×3450
	GVW/Curb Weight(kg)	15000/8650/5900
Chassis Parameters
Cab	Cab Seat	2+4
	Air Conditioner	YES
Engine	Fuel Type	diesel
	Engie Model	WD615.62
	Engine Brand	SINOTRUK
	Power(kw/hp)	195/266
	Displacement(L)	9.726
	Emmission Standard	Euro2
Chassis	Drive Type	4*2
	Transmission	8 speed, Manual
	Wheelbase(mm)	4600
	Tyre Specification	12.00R20
	Tyre No.(pcs)	6+1
	Max Speed(km/h)	95
	Paint	Red
Fire Truck Water Tank Structure Parameters
Water Tank Volume	4000L	Tank Material	Carbon Steel
Foam Tank Volume	2000L	Tank Material	Carbon Steel
Dry Powder Volume	1 ton	Nitrogen Cylinder	70L/pcs,in total 3pcs
Tank Thickness	4/3/3mm	Fire pump	CB10/60
Fire monitor	PL48	Color and Logo	Optional
Standard configuration	Chassis,sub frame, van body,national standard equipment box, 25 units national standard fire-fighting equipment,fire pump(CB10/60 according to the capacity), fire gun(PL48 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank,foam tank, dry powder tank,nitrogen system

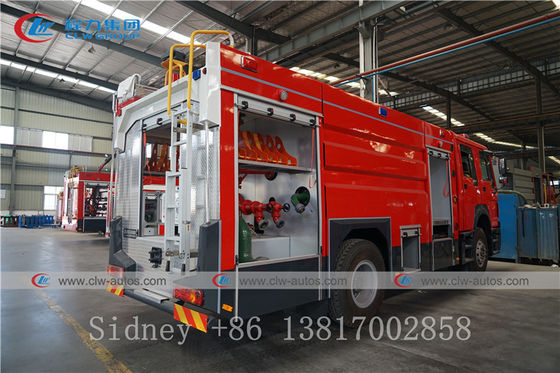

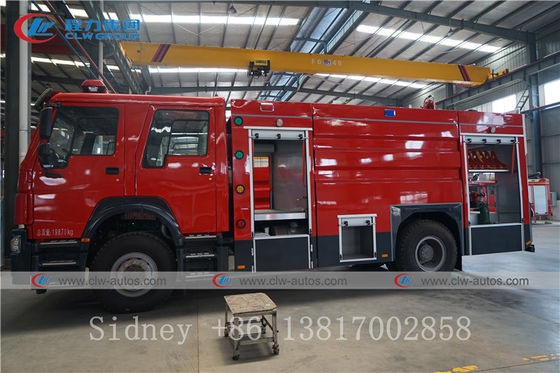

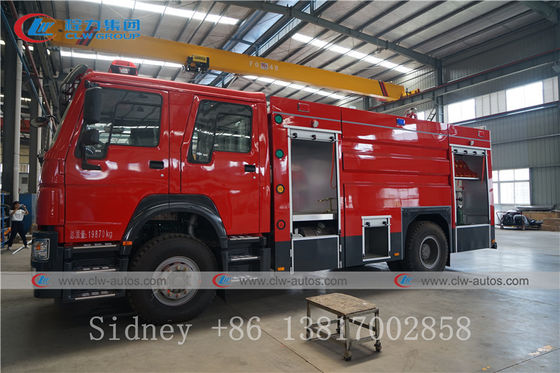

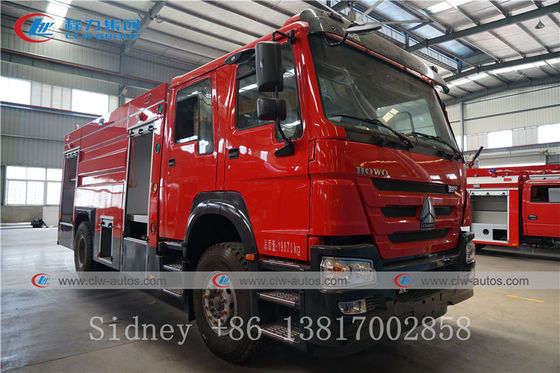

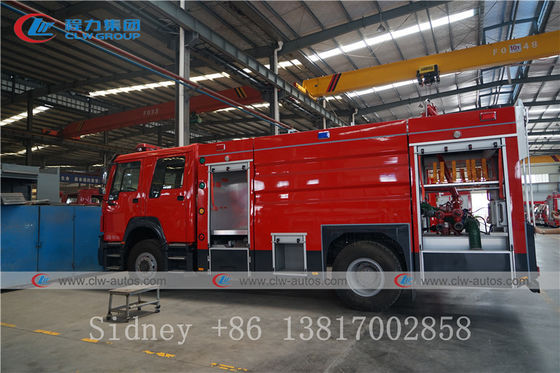

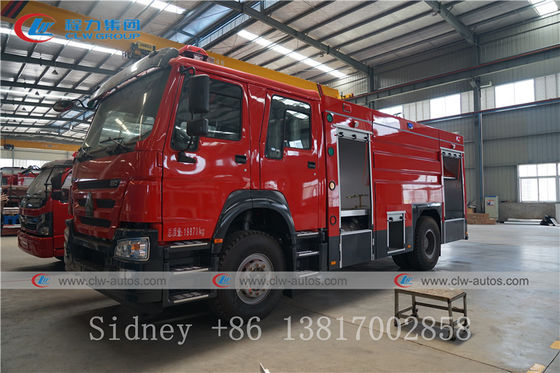

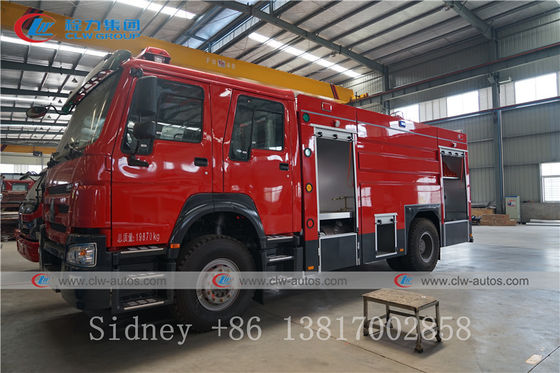

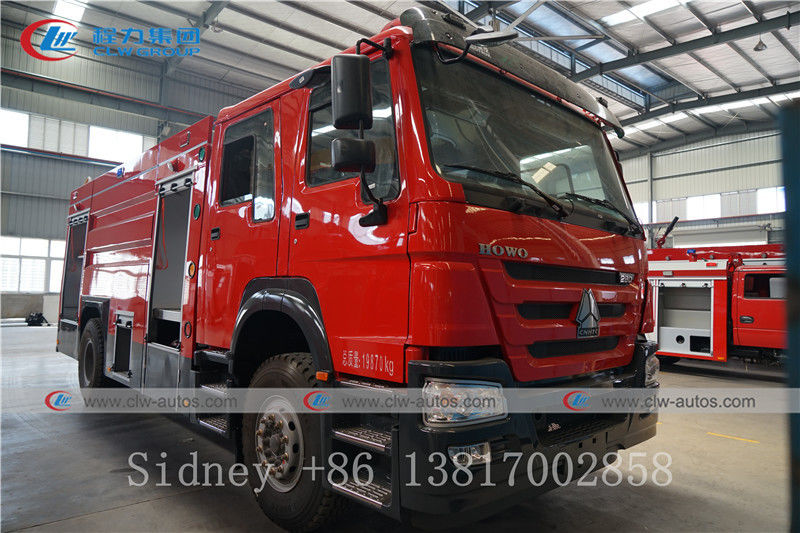

Reference photos

Sinotruk HOWO 4X2 6cbm Water Foam Tank Firefighter Truck 0

Sinotruk HOWO 4X2 6cbm Water Foam Tank Firefighter Truck 6

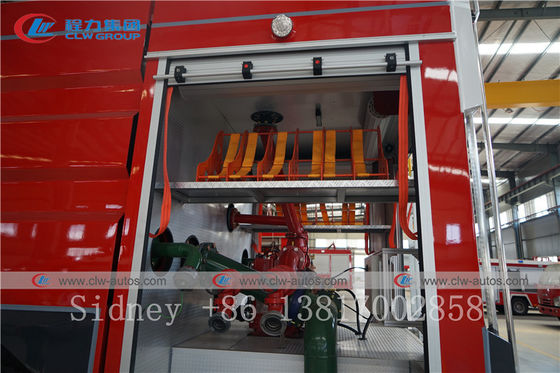

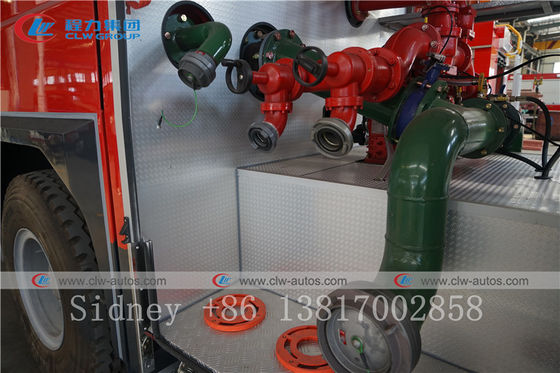

Fire fighting truck accessories

Sinotruk HOWO 4X2 6cbm Water Foam Tank Firefighter Truck 8

Successful cases

Fire truck workshop

Factory overview

Sinotruk HOWO 4X2 6cbm Water Foam Tank Firefighter Truck 11

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fire fighting truck I can order from your company?

A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied fire fighting trucks to any overseas companies?

A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
