Dongfeng 6 Wheels 5T Truck Mounted Boom Crane

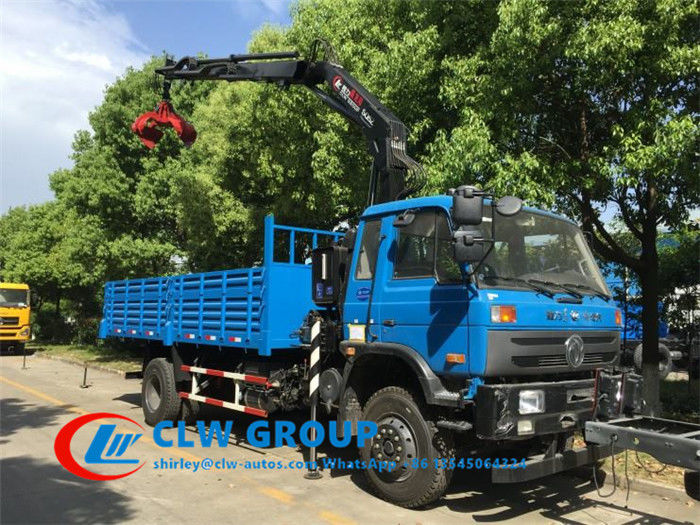

تصویر بزرگ : Dongfeng 6 Wheels 5T Truck Mounted Boom Crane

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO,BV,SGS
شماره مدل:	CLW5161

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	15980~28650 usd/unit
جزئیات بسته بندی:	برهنه بسته بندی شده با موم
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، Western Union، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند کامیون:	جرثقیل تاشو کامیونی دانگ فنگ، هاوو، فاو، فوتون، JAC، JMC، ISUZU	مارک موتور:	جرثقیل تاشو کامیونی کامینز
جعبه دنده:	دستی، 8 جلو و 1 عقب	برند جرثقیل:	جرثقیل تاشو کامیونی SANY، XCMG، CHENGLI
ظرفیت جرثقیل:	جرثقیل تاشو کامیونی 3.2 تن، 4 تن، 5 تن، 6.3 تن، 8 تن	لاستیک:	جرثقیل تاشو کامیونی 9.00R20،9R22.5
نوع بوم جرثقیل:	جرثقیل مستقیم، جرثقیل تاشو سوار بر کامیون جرثقیل بند انگشتی
برجسته کردن:	Dongfeng Truck Mounted Boom Crane,5T Truck Mounted Boom Crane,Dongfeng Truck Mounted Mobile Crane , 5T Truck Mounted Boom Crane , Dongfeng Truck Mounted Mobile Crane

Cheap Price Dongfeng 6-Wheel Truck Mounted 5T Folding Crane For Bricks

Product Description

Crane Brand of truck mounted folding crane: XCMG, SANY PALFINGER, Other Chinese Brand
Heavy Duty Cargo box.
H Shape Hydraulic front & Rear Leg for safety.
Folded Arm & Telescopic Straight Arm Crane for option.
Crane capacity of truck mounted folding crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
14ton,16ton,20ton,25ton

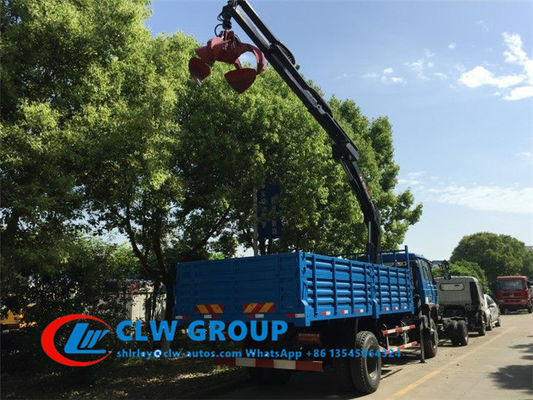

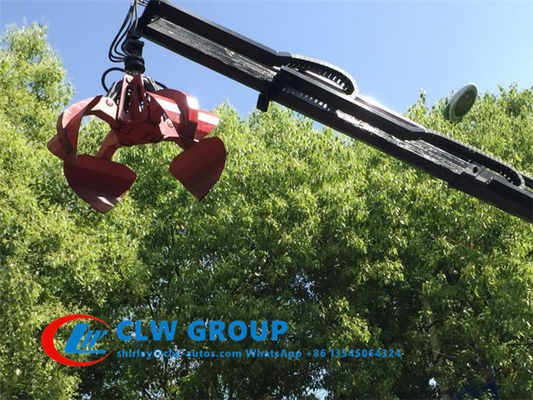

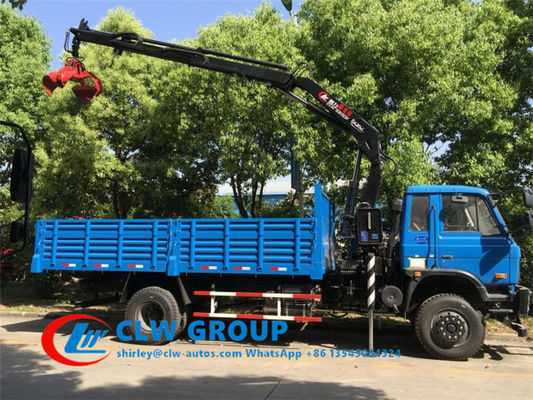

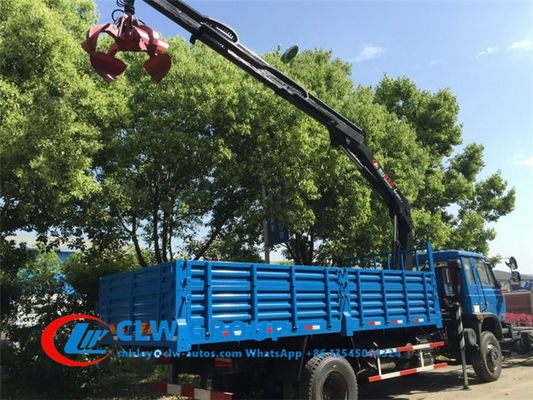

Pictures of truck mounted 5tons folding crane

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 0

Equipments available for truck mounted 5tons folding crane

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 4

operation of truck mounted folding crane

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 5

Enough stock folding cranes for your choice

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 6

Product Specification of truck mounted 5tons folding crane

Model	DONGFENG 4*2 Truck with 5 tons crane
Drive type	4*2, New condition, LHD
Vehicle Main Dimensions	(L x W x H)mm		9000×2470×3650
	Wheel base (mm)		4700
	Track front/rear mm		1240/2555
	F/R Axle-Load		5900/9900 kg,
	Approach/departure angle		32/16
Weight in KGS	Curb Weight		8570 kg
	GVW		16000 kg
Max. driving speed(km/h)			85
Engine	Brand		CUMMINS ENGINE
	Model		B190-33
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling;
	Horse Power(HP)		190
	Emission standard		Euro III
Gearbox	6 forwards& 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	10R22.5, 7 pc including 1 spare tire
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	power steering, hydraulic steering with power assistance
Equipment for Crane Mounted Parts
Brand	XCMG brand,SQ5SK2Q
Working Platform	360°turning(left or right), H-shape legs 360°
Cargo Box	54002350550mm
Material	Q235 Carbon steel
Extendable boom section	3-section
Boom Type	Telescopic type
Lifting Max. Weight	5000kg
Lifting Max. Height	11m
Equipment	Using the H type support leg,Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.

Item of the crane	Unit	Detail
Max. Lifting capacity	kg	16000
Max lifting moment	T.M	40
Recommend power	kw	37
Max. Oil flow of hydraulic system	L/min	63
Max. Pressure of Hydraulic system	MPa	31.5
Oil tank capacity	L	250
Crane weight	kg	5000
Installation space	mm	1500
Rotation angle	°	360°All rotation

truck mounted 5tons straight arm crane

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 7

Dongfeng 6 Wheels 5T Truck Mounted Boom Crane 8

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of truck mounted hydraulic crane I can order from your company?

A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied truck mounted hydraulic crane to any overseas companies?

A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.

Q3: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
