Dongfeng 190HP 15tons Truck Mounted XCMG 8Tons Straight Boom Crane SQS200-4 -- Truck Mounted 8tons crane (also called truck mounted crane,Truck with Crane,small crane Truck,truck mounted telescopic crane,truck mounted jib crane,truck mounted hydraulic crane) is used for lifting different kinds of cargo such as bricks,tree, steel pipeline, telegraph pole and stone etc.
-- Truck Mounted 8tons crane can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Truck Mounted Jib Crane ;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Truck Mounted Jib Crane ;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons Truck Mounted Jib Crane
4) According to crane type,there are telescopic and knuckle Truck Mounted 8tons crane .
Feature -- Crane: We can supply International brand XCMG and PALFINGER or our own brand CLW for optional.
-- Landing leg: Hydraulic control, top quality, easy for operation.
-- Storage box: High quality carbon steel Q235
-- Truck chassis: DONGFENG Diesel engine truck chassis
-- Tire: 12.00R20 tire with high trafficability.
-- Crane is designed with high-strength steel plate and hexagonal boom, featuring high strength, light dead weight and strong lifting capacity.
-- Arm frame form: folding arm
-- XCMG crane, operating radius of 9 meters, maximum lifting weight of 6.3tons.
Reference picture

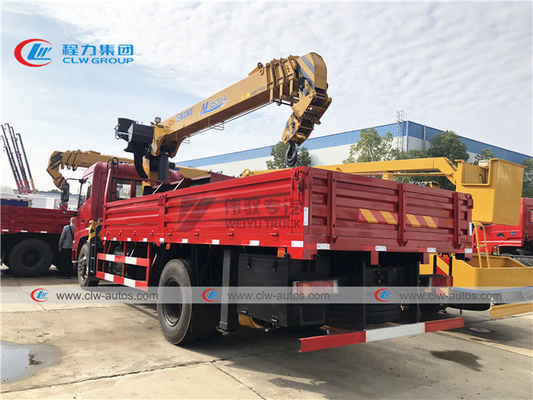

Rear side view of dongfeng Truck Mounted XCMG 8Tons crane

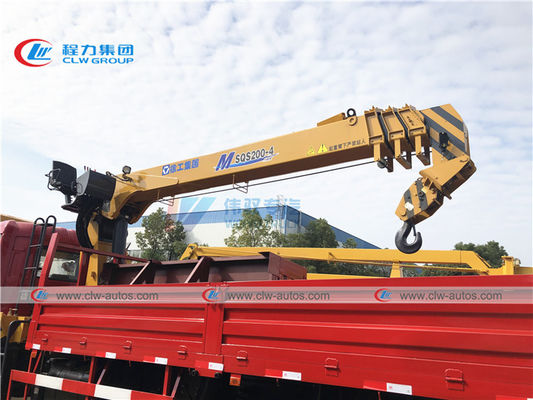

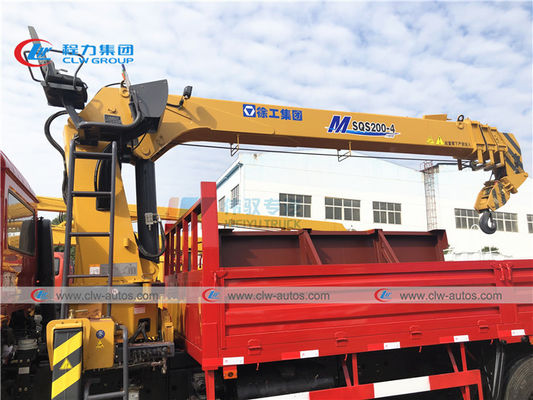

xcmg crane of dongfeng Truck Mounted XCMG 8Tons crane

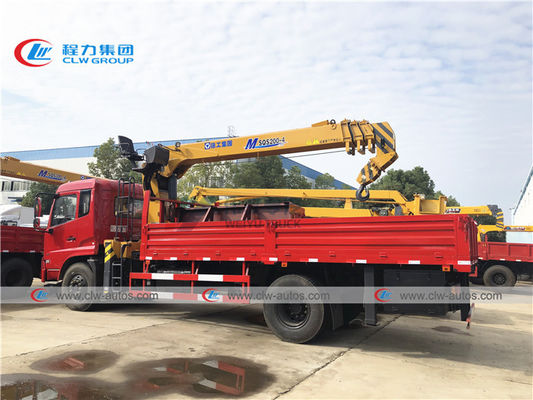

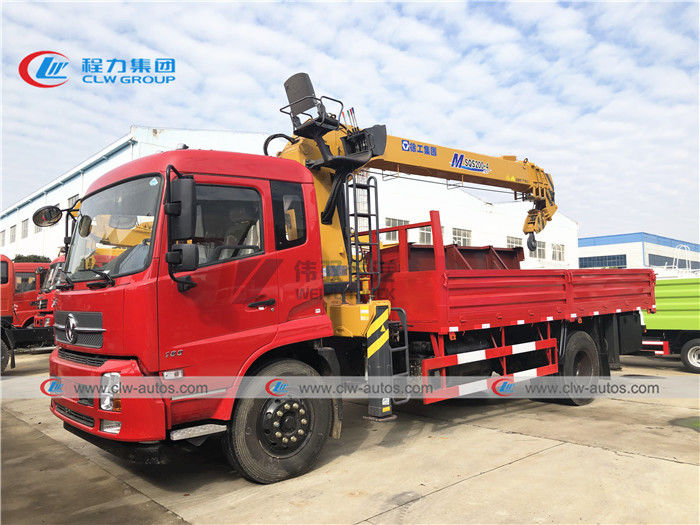

side view of dongfeng Truck Mounted XCMG 8Tons crane
Specification of dongfeng Truck Mounted XCMG 8Tons crane
Cabin Dongfeng Kingrun
Vehicle Main Dimensions (L x W x H)mm 9000×2550×3730
Wheel base (mm) 5000
Wheel track (front/rear) (mm) 1880/1800
Approach/Departure angle(°) 20/12
Weight in KGS Tare Weight 11080
Loading Capacity 6725kg
Front axles loading capacity 65000
Rear axles loading capacity 11500
Max. driving speed(km/h) 85
Engine Brand Cummins
Model B190 33
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 190HP
Emission standard Euro III
Gearbox 8 forwards & 1 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear power steering, hydraulic steering with power assistance
Fuel tank (L) 300
Tire 10R22.5 tire,6 pieces with one spare
Brakes
Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Model XCMG/CLW/PALFINGER
Max. Lifting Capacity KG 63000
Max. Lifting momen T.M 15.7
Lifting height M 11
Working radius M 9
Recommend power KW 20
Max. Oil Flow of Hydraulic System L/Min 40
Max. Pressure of Hydraulic System Mpa 20
Oil Tank capacity L 90
Crane weight KG 2102
Installation Space mm 900
Rotation Angle ° 360° All rotation
