Isuzu Cxa 6X4 Left Hand Drive 10000L Fire Fighting Truck

تصویر بزرگ : Isuzu Cxa 6X4 Left Hand Drive 10000L Fire Fighting Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,SGS,BV
Model Number:	CLW5326-4

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	US $62,540-89,800
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

شاسی کامیون:	دانگ فنگ، هوو، ISUZU، Shacman، CAMC، Foton	Capacity:	12tons, 12CBM
تایپ کنید:	کامیون آتش نشانی مخزن آب، فوم، کامیون آتش نشانی پودر خشک، ماشین آتش نشانی نجات	پمپ آتش:	مارک چینی
دامنه مانیتور آتش:	≥50 متر	سرعت جریان مانیتور:	48 لیتر در ثانیه
سرعت جریان پمپ:	60 لیتر در ثانیه	فرمان:	LHD یا RHD
برجسته کردن:	10000L Fire Fighting Truck,Isuzu Cxa Fire Fighting Truck,6X4 Firefighter Truck , Isuzu Cxa Fire Fighting Truck , 6X4 Firefighter Truck

Isuzu Cxa 6X4 10000L or 10tons Water Fire Fighting Truck for sale

Product Description

1. ISUZU 6X4 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

Specifications of ISUZU 6X4 fire fighting truck

Chassis	Chassis brand	/	ISUZU
	Model	/	QL1250
	Drive type	/	6x4 left hand drive
	Cabin	/	double cabin,two row,5 seats
	Overall dimension(LWH)	mm	9775x2500x3560
	Total mass	kg	24480
	Rated Loading capacity	kg	11050
	Wheel Base	mm	5100+1300
	Front /rear suspension	mm	1335/1950
	Approach/departure angle	(°)	26/12
	Spring No.	/	9/10
	Tyre No.	pcs	11 PCS,one spare tyre
	Type & Size of Tyre	/	11.00-20
	Axle No.	/	3
	Steering wheel	/	left hand drive
Engine	Engine model	/	6HK1-TCSG40
	Engine brand	/	ISUZU
	Maximum power	KW/HP	206/280
	Fuel type	/	diesel
	Displacement	ml	7790
	Max torque	N.m	/
	Rated rotor speed	Rpm	/
	Emission Standard	/	Euro IV
10,000 litres water tank & 1000 litres foam tank
Fire pump	Model	/	CB10/60,Normal pressure pump
	Pressure	Mpa	≥1.0
	Max suction height	m	7
	Flux	L/S	60
	Rated speed	r/min	3000
	Time of drawing water (s)	s	≤35
	Input diameter	mm	125
	Outlet diameter	mm	2xΦ75
Fire monitor	Model	/	PL48
	Fire fighting nozzle range	Water (m)	≥60
	Fire fighting nozzle range	Foam (m)	≥55
	Flux	L/S	48
	Rated Working pressure	Mpa	1
	Rotation angle	(°)	360

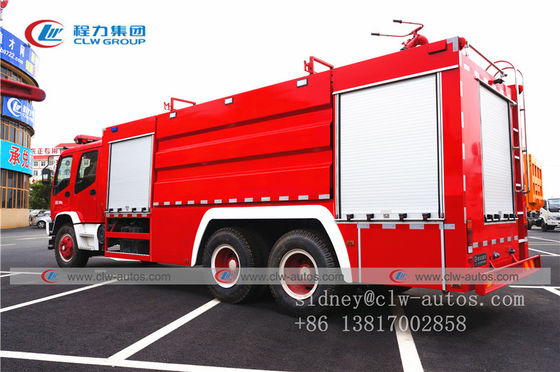

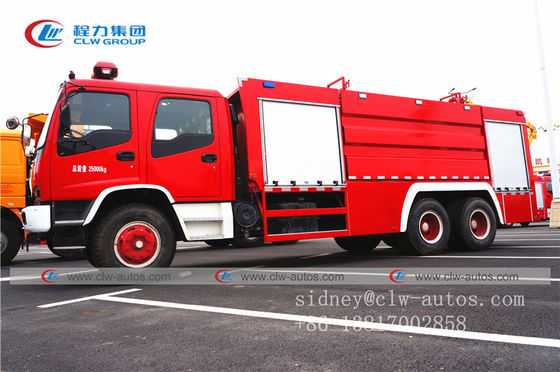

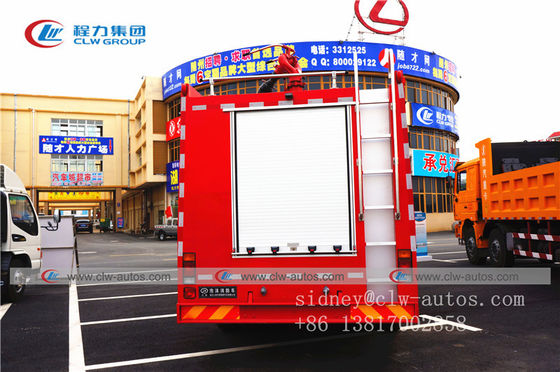

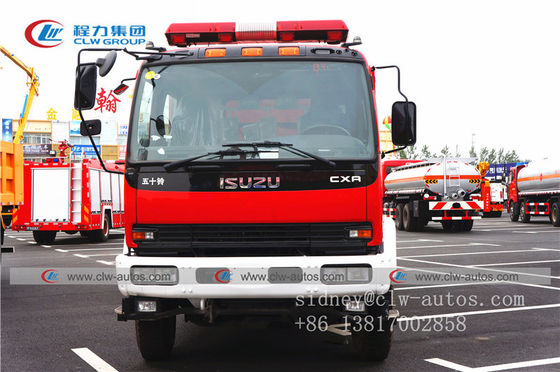

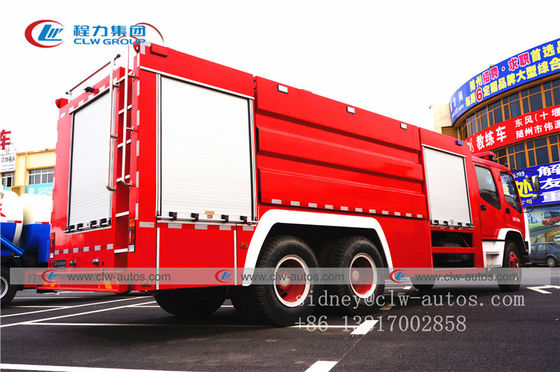

Reference photos

Isuzu Cxa 6X4 Left Hand Drive 10000L Fire Fighting Truck 0

Isuzu Cxa 6X4 Left Hand Drive 10000L Fire Fighting Truck 4

Working Scene of water tank fire brigade truck

Equipment come with fire trucks
Isuzu Cxa 6X4 Left Hand Drive 10000L Fire Fighting Truck 6

Production Procedure

Isuzu Cxa 6X4 Left Hand Drive 10000L Fire Fighting Truck 7

Isuzu Cxa 6X4 Left Hand Drive 10000L Fire Fighting Truck 8

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of water/foam tank fire brigade truck I can order from your company?

A: There are various sizes and types of water/foam tank fire brigade trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied water tank fire brigade truck to any overseas companies?

A: Yes,with need of government project,we offered water tank fire brigade trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
