Dongfeng 4X2 Refrigerated Cargo Truck For Seafood

Dongfeng 4X2 Refrigerated Cargo Truck For Seafood

Dongfeng 4X2 Refrigerated Cargo Truck For Seafood
Dongfeng 4X2 Refrigerated Cargo Truck For Seafood Dongfeng 4X2 Refrigerated Cargo Truck For Seafood Dongfeng 4X2 Refrigerated Cargo Truck For Seafood Dongfeng 4X2 Refrigerated Cargo Truck For Seafood Dongfeng 4X2 Refrigerated Cargo Truck For Seafood

تصویر بزرگ :  Dongfeng 4X2 Refrigerated Cargo Truck For Seafood

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: ISO, CCC, SGS, BV, ASME
شماره مدل: CLW5056A

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: برهنه، موم شده، کشتی فله، Ro-Ro
زمان تحویل: 30-35 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
Chassis Brand: Dongfeng, Howo, Foton, Isuzu, JMC, etc. مواد وانت: صفحه رنگی داخل، FRP خارج از ون، فوم پلی اورتان وسط
ضخامت خارجی وانت: 1.2mm 1.5mm 1.8mm 2.0mm ضخامت بین بستر ون: 80mm 100mm 120mm
ضخامت داخلی وان: 1.2mm 1.5mm 1.8mm 2.0mm وزن بارگیری: 3-5 تن
Refrigerator Model: Thermo King, Carrier, Hanxue, Huatai, Bingli برند شاسی: ایسوزو، دانگ فنگ، فوتون، هوو و غیره
مدل محرک: 4x2/6x4/8x4; طبق اندازه ساختار فوق العاده پایه چرخ: 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm
زمان تحویل: 30-35 روز کاری Logo and Painting: As customer's request.
گارانتی: 1 سال
برجسته کردن:

4X2 Refrigerated Cargo Truck,Dongfeng Refrigerated Cargo Truck,Dongfeng Refrigerated Cargo Van

,

Dongfeng Refrigerated Cargo Truck

,

Dongfeng Refrigerated Cargo Van

Dongfeng 4X2 Refrigerated Cargo Van Truck for Seafood 5-10t Freezer Cooling Refrigerator Truck





Product Description

Dongfeng 4X2 Refrigerated Cargo Truck For Seafood 0



1.Insulation materials are imported grade insulation board.
2.The refrigeration unit has well-known domestic and imported unit selection, and the temperature can meet the requirements of deep cooling.
3.Sinotruk ,Dongfeng ,Shacman ,JAC,FOTON ,I-SUZU and any other chassis brand can be selected.
4.The entire vehicle is manufactured using the latest international technology and new technology, and it has good insulation property.





Product Specification

Chassis Brand Dongfeng
Vehicle main dimension Overall dimension(LxWxH)mm 9990*2490*3850
  wheel base(mm) 5600
  wheel track(front/rear)(mm) 1880/1800
  Overhang(front/rear)(mm) 1430/2960
  Approach/Departure angle 19/10
Weight in KGS GVW 16000
  Curb weight 6805
  Loading capacity 10Ton
Chassis model DFL5160XXYBX1
Max driving speed(km/h) 98
Engine Brand Dongfeng CUmmins
  Model B190 33
  (CC)KW 5900/140
  Emission standard Europe II
Transmission 6 gear box ,5 forward ,1 reserve
brake Oil brake
Tire 9.00-20
Body Cargo body Dimension LxWxH 7400*2280*2400
    materials Both Inside and Outside areglass fiber reinforced plastics
    thermal insulation material Polyurethane foam
    Thickness 8cm
  Cooling system Brand Hanya
    Model DM-600S
    Temperature -18ºC-0ºC
  others Stainless steel lock, stainless steel Contour corner protection, stainless steel door frame, dome light and Bumper block, two rear door
option 1,Side door ,
2,cargo material can choose both stainless steel, both glass fiber reinforced plastic ,orstainless steel+ glass fiber reinforced plastic
3,refrigerator machine :thermoking, carrier ,and others you like

Product Show

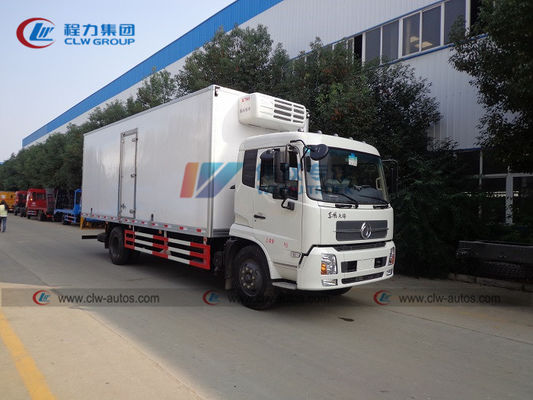

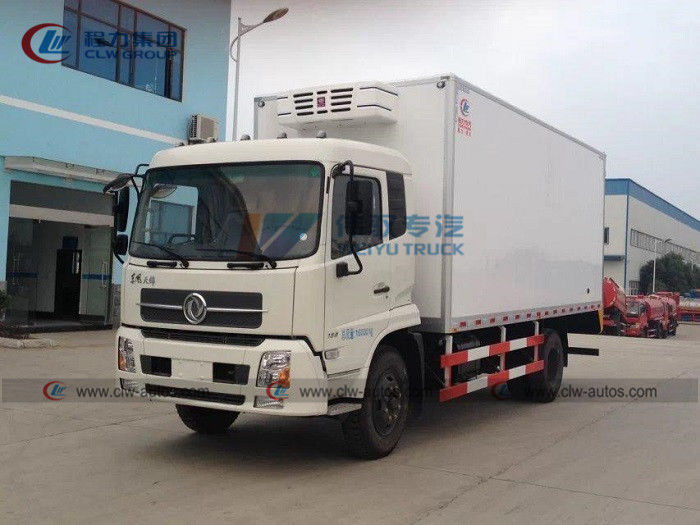

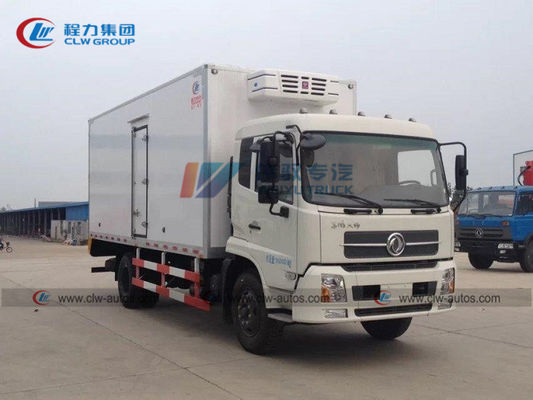

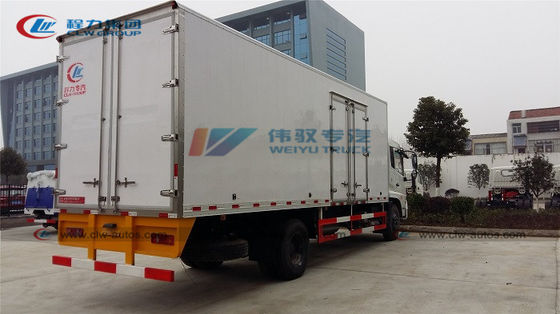

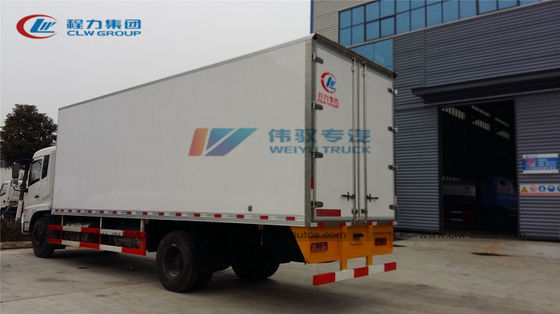

Dongfeng 4X2 Refrigerated Cargo Truck For Seafood 1

Dongfeng 4X2 Refrigerated Cargo Truck For Seafood 2

Dongfeng 4X2 Refrigerated Cargo Truck For Seafood 3





Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
