4x2 Light Duty Middle tipping 5T ISUZU Dump Truck

تصویر بزرگ : 4x2 Light Duty Middle tipping 5T ISUZU Dump Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	ISO, CCC
Model Number:	CLW3046XXCB

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	12450 usd/unit~24560 usd/unit
Packaging Details:	Naked package shipped by container
Delivery Time:	20days after received advance payments
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Truck brand:	ISUZU,HOWO,DONGFENG,FAW,SHACMAN	فرمان:	LHD/RHD
Loading capacity:	2tons 3tons 4tons 5tons	Engine:	Diesel engine 98hp
Gear box:	MSB 5 forward and 1 reverse	Dump box:	Q235 carbon steel
Thickness:	Side 3mm bottom 4mm
برجسته کردن:	5T ISUZU Dump Truck,Light Duty ISUZU Dump Truck,4x2 isuzu tipper truck , Light Duty ISUZU Dump Truck , 4x2 isuzu tipper truck

4x2 Light Duty 5Tons ISUZU Dump Truck,Small Middle Tipping ISUZU Tipper

Dump truck(also called tipper truck,tipping truck,dumper truck)is widely used in transporting the construction material, such as sand, stone, gravel, coal, earthwork etc.

Main configuration of isuzu dump truck: hydraulic system with brand HYVA or Chinese top brand'

Main material of isuzu dump truck are optional for carbon steel, high-strengthen steel T700/T750

Lifting system of isuzu dump truck: middle lifting, front lifting Hydraulic system: HYVA, PERMCO, Chinese brand

Tipping box shape of isuzu dump truck: rectangle, U-shape

Specification of isuzu dump truck

Vehicle Description
Overall dimensions	585019802250mm
GVW	5300kg
Curb weight	2890kg
Chassis brand	ISUZU 600P
Up-parts Description
Cargo dimension	32001800500mm
Loading capacity	2-4cbm
Material	Carbon steel
Thickness	Side	2mm, 3mm
	Bottom	3mm, 4mm
Hydraulic system	Chinese brand
Lifting style	Middle lifting
Chassis Description
Chassis model	QL1040A1HAY
Cab	600P,single row, with A/C
Wheelbase	3360mm
Tire specification	7.00-16
Tire quantity	6+1 units
Engine	Engine model	4KH1-TCG40
	Emission level	Euro 4
	Displacement/output	2999ml/88kw
	Horse power	120hp
Gear box	Model	ISUZU MSB
	Number of gears	5 forward gears& 1 reverse
Brake system	Full air brake
Axle	Front	2.5T
	Rear	4.8T
Suspension	Front	Leaf springs
	Rear	Leaf springs
Fuel tanker	Type	Carbon steel tanker
	Capacity	140L

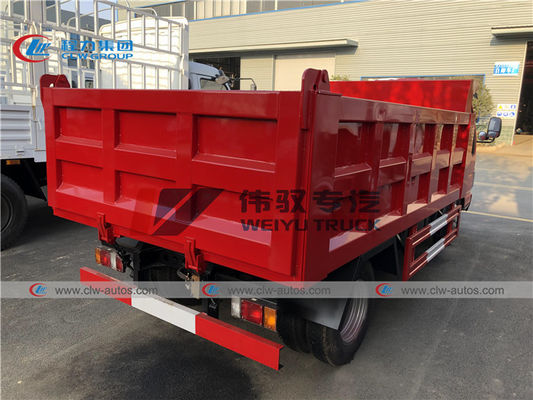

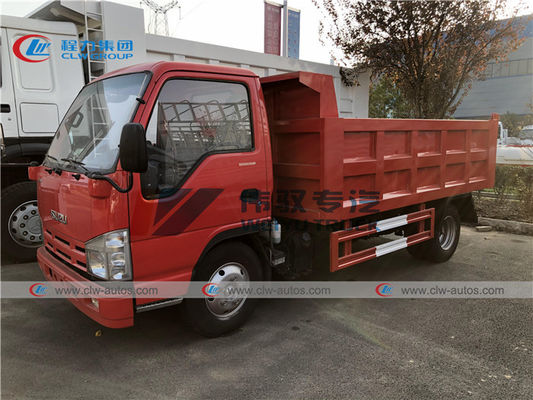

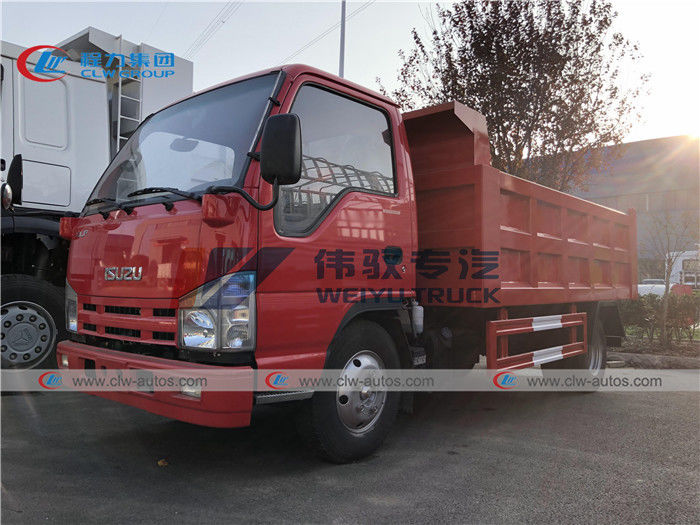

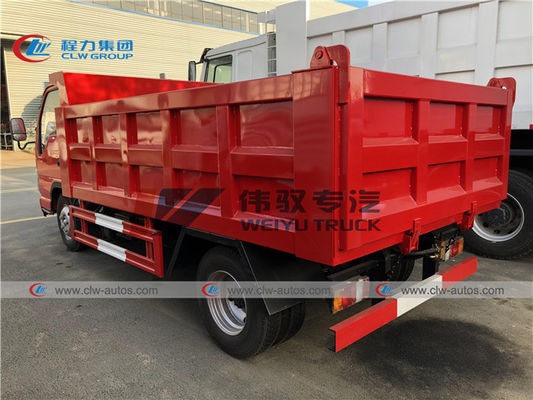

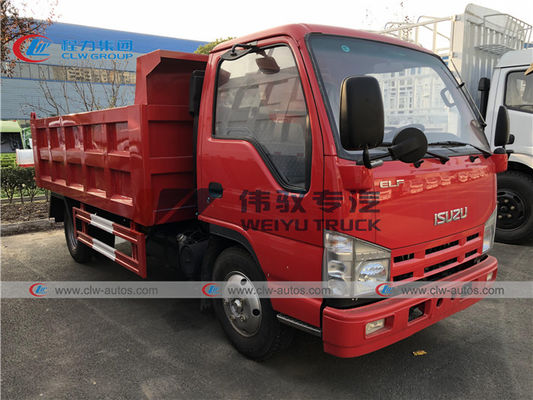

4x2 Light Duty Middle tipping 5T ISUZU Dump Truck 0

4x2 Light Duty Middle tipping 5T ISUZU Dump Truck 4

4x2 Light Duty Middle tipping 5T ISUZU Dump Truck 5

4x2 Light Duty Middle tipping 5T ISUZU Dump Truck 6

Service

1.Truck is customized according to the customer's requirments(color,size,logo and so on)

2.Technician will be sent to customer's country to provide after sales service when order is more than 10 units.

3. Customer‘s workers can learn operation in our factory for free.

4. Warranty:12 months.we can provide the parts for free at the frist year.

FAQ

1. What is your terms of payment?

T/T with 40% deposit and balance will be paid before delivery.

We will send you photos and video of the products and packages before paying the balance.

2. What's your minimum quantity?

1 set.

3. What is your packing?

Container or Naked packing, we transport our trucks by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.

4. How about delivery time of abve isuzu dump truck?

Generally speaking, 20~25 workdays after receiving 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
