20m3 Hooklift Garbage Truck with 20m3 Roll-off Open Top Container
Product Description
1. Chassis :Sinotruk howo,dongfeng,isuzu,faw,jac,shacman,camc and so on.
2. Garbage Bin with different size options of hook lift garbage truck : 4cbm to 12cbm;: Engine 266hp,290hp,336hp,371hp, Fast Gearbox 6Forward & 2Reverse;
3. Hydraulic Control Loading&Unloading System;
4. Different shapes of hook lift garbage truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;
6. Lifting oil cylinder of hook lift garbage truck :double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;
7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;
8. Best Choice for Garbage collection and transporation Inside City.
Product Specification
| Truck model |
SINOTRUK HOWO |
| Drive style |
Left or right hand drive |
| Drive model |
6x4 |
| Dimensions(LxWxH) |
8865x2500x3290 mm |
| Cargo body |
20cbm |
| Loading weight |
20ton |
| Engine |
WD615.69, 336hp |
| Emission standard |
EURO II |
| Front axle |
HF7, 7tons loading capacity |
| Rear axle |
HC16, 16tons loading capacity |
| Transmission |
HW13710, 10 forward & 2 reverse. |
| Steering system |
ZF8118, hydraulic steering with power assistance |
| Tires |
295/80R22.5, 10+1spare |
| Upperstructure Specification |
| Garbage Hopper |
Dimension |
5600×2300×1500mm |
| Standard Configuration |
With one garbage bin, with hydraulic rear outrigger |
| Volume |
Ground type, 18CBM or 20cbm |
| Loading Capacity |
16tons or 18Tons |
| Thickness |
5mm, Carbon Steel Q235B |
| Dump type |
Hydraulic cylinder lifting and self-loading |
| Dump angle |
≥45° |
| Hydraulic system pressure |
≤16Mpa |
| Protective Material |
Q235A Carbon Steel |
| Controlling Way |
Three-way hydraulic control valve |
| Other Configuration |
- Reinforced hydraulic swept-body system, with Double hydraulic cylinder
- Swing Arm, Chain.
- Hydraulic multi-way valve control.
|
| Options |
Electronically controlled valve, trash bin type, trash bin quantity, etc. |

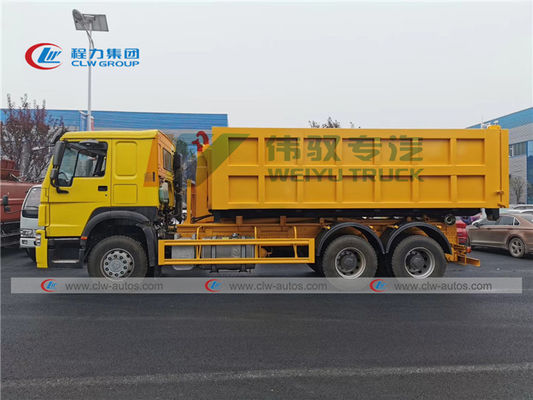

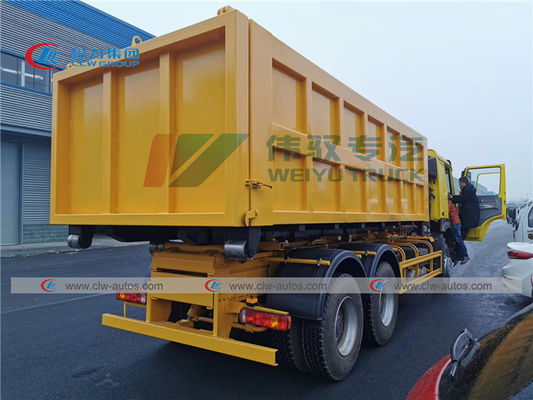

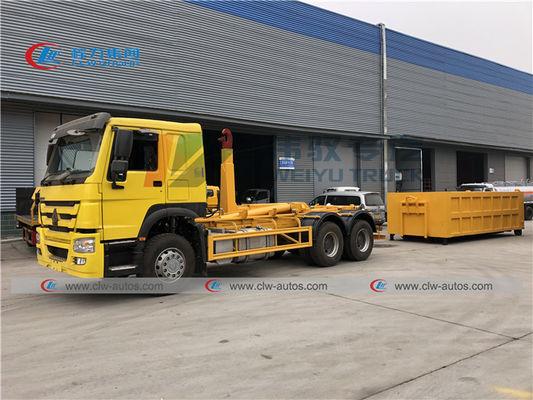

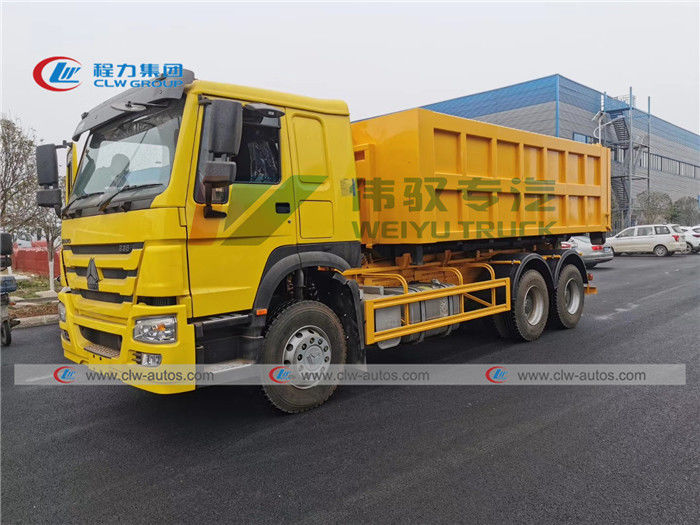

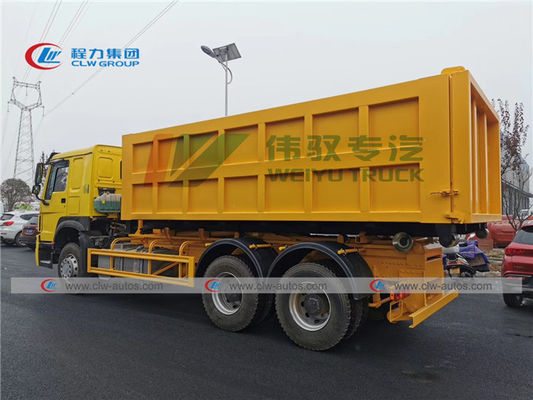

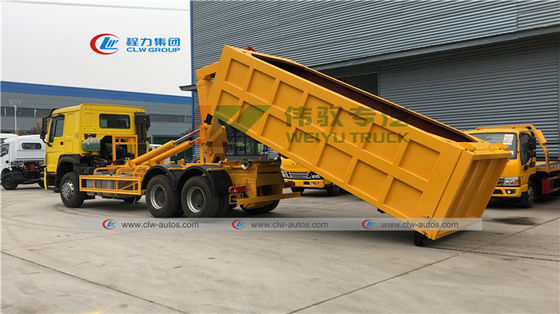

Reference Photos
Main Structure and Diagram
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage Truck?
A: China GB local standard.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
