SINOTRUK HOWO 6x4 20cbm Hook Lift Garbage Truck

تصویر بزرگ : SINOTRUK HOWO 6x4 20cbm Hook Lift Garbage Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, BV, SGS
Model Number:	CLW5107GBL

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Chassis Brand:	SINOTRUK HOWO,Dongfeng, Foton, Isuzu etc.	Garbage Box Size:	20cbm
Loading Capacity:	16t, 17t, 18t, 19t, 20tons	Box Thickness:	Side 4mm, Bottom 5mm, Carbon Steel Q235B
مواد محافظ:	فولاد کربن Q235A	نوع زباله:	بالابر و بارگیری سیلندر هیدرولیک
راه کنترل:	شیر کنترل هیدرولیک سه طرفه	رنگ:	طبق درخواست مشتری
گارانتی:	1 سال
برجسته کردن:	20cbm Hook Lift Garbage Truck,6x4 Hook Lift Garbage Truck,SINOTRUK HOWO Waste Removal Trucks , 6x4 Hook Lift Garbage Truck , SINOTRUK HOWO Waste Removal Trucks

SINOTRUK HOWO 20cbm Hook Lift Garbage Truck Hydraulic Arm Roll Off Waste Removal Truck

Product Description
1. Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

Product Specification

Truck model	ZZ1257M4641W
Drive style	Left or right hand drive
Drive model	6x4
Dimensions(LxWxH)	8865x2500x3290 MM
Cargo body	20 cbm
Loading weight	20ton
Engine	WD615.69, 336hp
Emission standard	EURO II
Front axle	HF7, 7tons loading capacity
Rear axle	HC16, 16tons loading capacity
Transmission	HW13710, 10 forward & 2 reverse.
Steering system	ZF8118, hydraulic steering with power assistance
Tires	295/80R22.5, 10+1spare

Upperstructure Specification
Garbage Hopper	Dimension	5600×2300×1500mm
	Standard Configuration	With one garbage bin, with hydraulic rear outrigger
	Volume	Ground type, 18CBM or 20cbm
	Loading Capacity	16tons or 18Tons
	Thickness	5mm, Carbon Steel Q235B

Dump type	Hydraulic cylinder lifting and self-loading
Dump angle	≥45°
Hydraulic system pressure	≤16Mpa
Protective Material	Q235A Carbon Steel
Controlling Way	Three-way hydraulic control valve
Other Configuration	Reinforced hydraulic swept-body system, with Double hydraulic cylinder Swing Arm, Chain. Hydraulic multi-way valve control.
Options	Electronically controlled valve, trash bin type, trash bin quantity, etc.

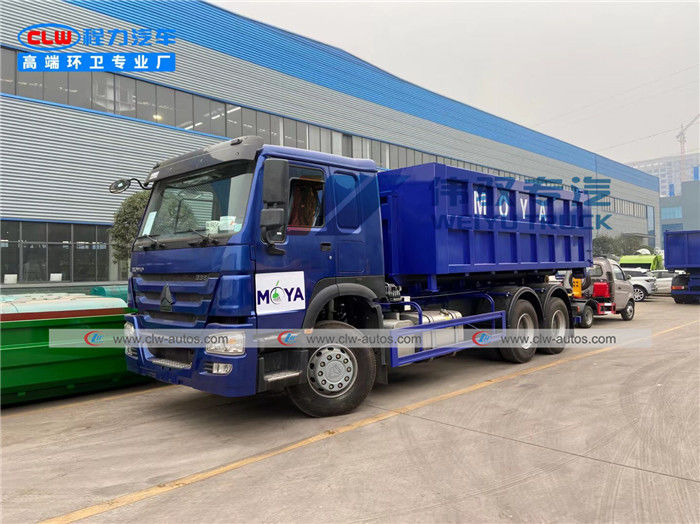

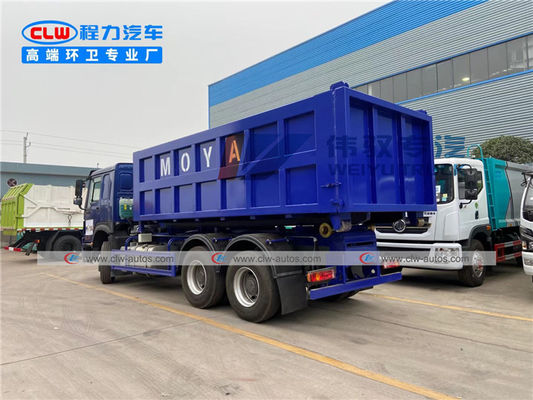

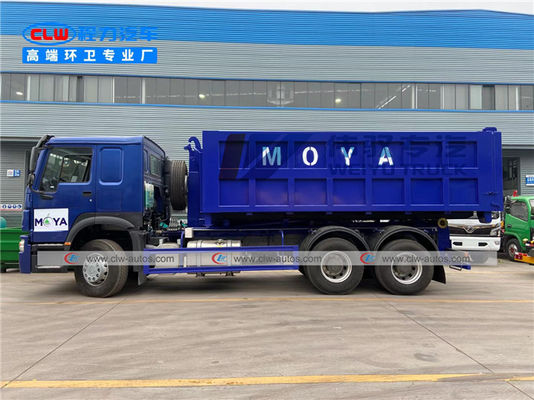

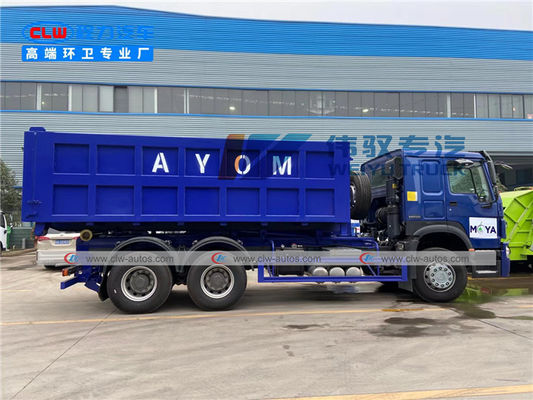

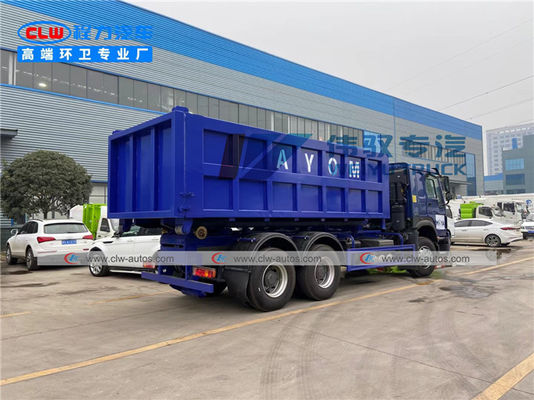

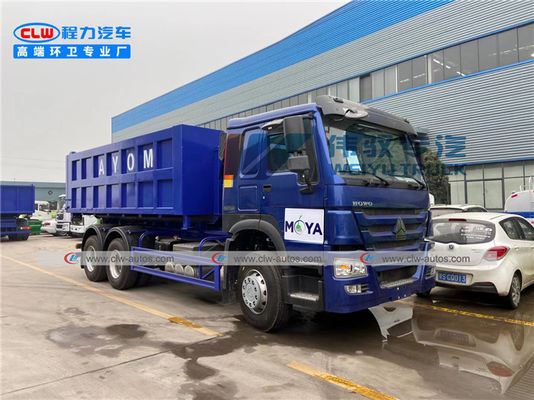

Reference Photos

Main Structure and Diagram

SINOTRUK HOWO 6x4 20cbm Hook Lift Garbage Truck 4

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage Truck?
A: China GB local standard.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
