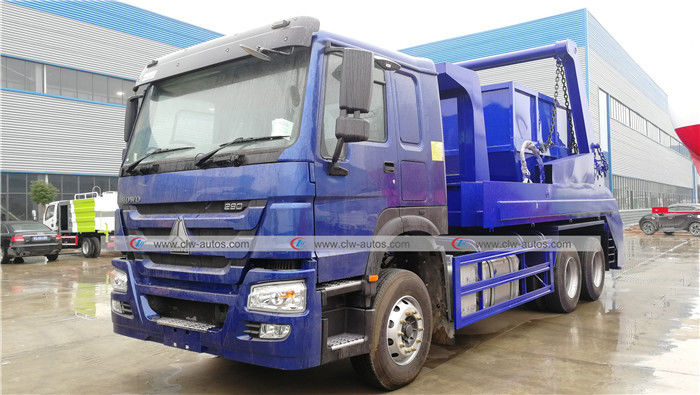

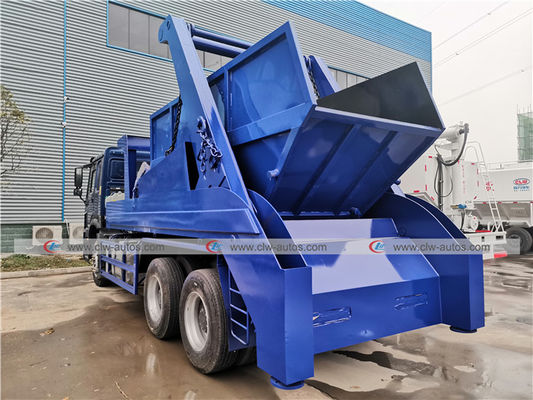

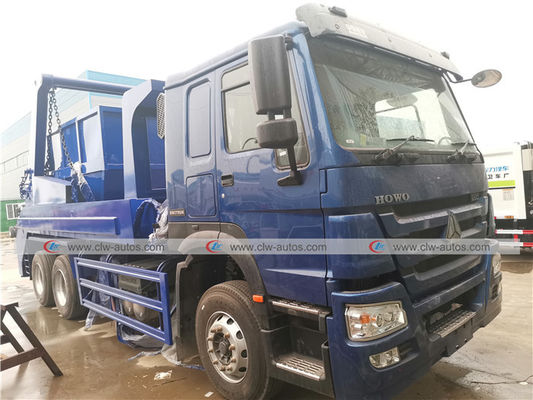

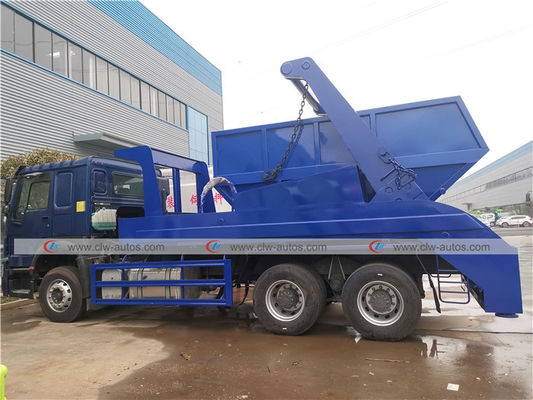

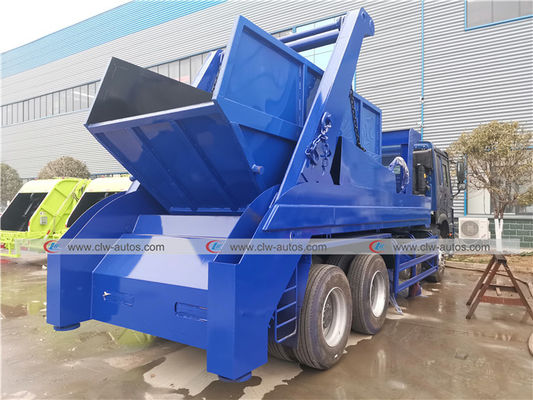

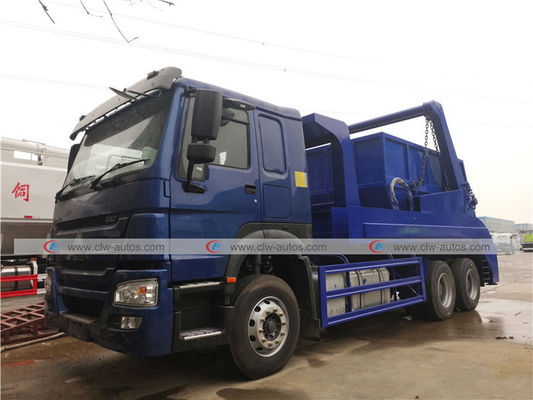

Carbon Steel Bin SINOTRUK 6x4 Waste Removal Trucks

تصویر بزرگ : Carbon Steel Bin SINOTRUK 6x4 Waste Removal Trucks

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
Model Number:	CLW5704ce

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم، کشتی فله، رو-رو
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C ، T/T ، Western Union
قابلیت ارائه:	300 واحد

مخاطب

توضیحات محصول جزئیات

Material:	High Qualtiy Carbon Steel	ضخامت:	سمت 3 میلی متر، دکمه 4 میلی متر
قیف:	مقدار برای انتخاب	اندازه قیف:	10cbm
Engine:	SINOTRUK, Diesel type	چرخ:	6x4
گارانتی:	12 ماه	لوگو:	آرم سفارشی
برجسته کردن:	SINOTRUK Waste Removal Trucks,6x4 Waste Removal Trucks,CLW5704ce , 6x4 Waste Removal Trucks , CLW5704ce

Sinotruk HOWO 10CBM Swing Arm Garbage Truck Carbon Steel Bin Wagon Waste Collection Vehicle

Product Description

Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.

According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.

Drive type	4*2, New condition, LHD
Vehicle Main Dimensions	(L x W x H)mm		9800×2500×3350
	Wheel base (mm)		4325+1350
	Track front/rear mm		2500/4500
	F/R Axle-Load		7000/2*13000 kg,
	Approach/departure angle		20/13
	Curb weight		112500 kg
	Loading capacity		10000kg
Max. driving speed(km/h)			90
Engine	Brand		Sinotruk Brand,Diesel ENGINE
	Model		W615.62
	Type	4-stroke direct injection, 6 cylinder in-line with water cooling, turbo-charging and inter-cooling;
	Horse Power(HP)		266
	Emission standard		Euro II
Gearbox	10 forwards& 2 reverse
Clutch	Reinforced diaphragm clutch
Tire	12R22.5, 10 pc including 1 spare tire
Steering Gear	power steering, hydraulic steering with power assistance
Upper Body
Garbage Box Material	Carbon Steel Q235
Garbage Box Volume	10 CBM
Remarks	1. Color is optional 2.Customized LOGO painting as per customer request

Truck Diagram

Working Show

Carbon Steel Bin SINOTRUK 6x4 Waste Removal Trucks 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of waste collection truck I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied waste collection truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
