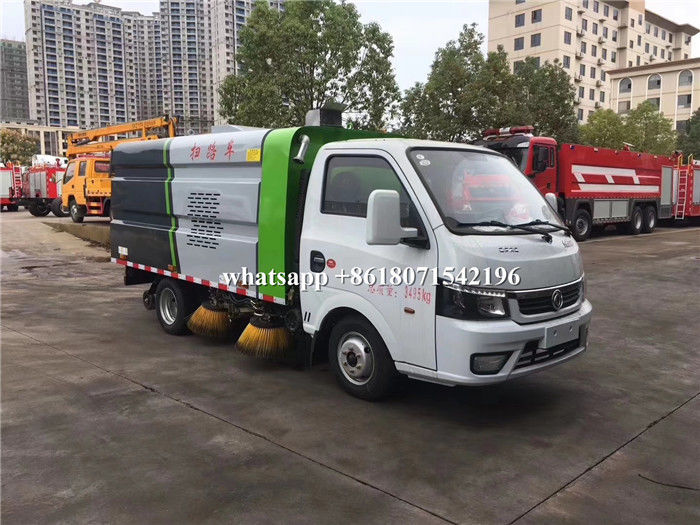

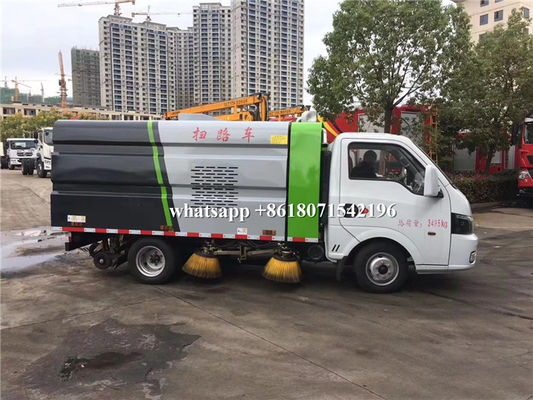

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck

تصویر بزرگ : Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW50749

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	T/T، L/C
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	فولاد ضد زنگ 304	موتور کمکی:	برند ISUZU
هوادار:	بدون نگهداری	چراغ هشدار عقب:	بله
مکش خلاء:	پشت تایر	برس ها:	4 واحد
استفاده:	سرویس بهداشتی شهر	رنگ:	نقاشی LOGO سفارشی طبق درخواست مشتری
برجسته کردن:	street sweeper vacuum truck,mechanical sweeper truck , mechanical sweeper truck

Dongfeng Mini Road Sweeper Truck 2.5m3 Street Vacuum Cleaner Truck

Product Description

This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.The utility model has the characteristics of simple operation, high dust absorption efficiency and continuous operation.Widely used in municipal, highway, national and provincial arterial road construction dust, particle recovery operations.

Specifications of 2.5CBM Changan Road Sweeper Truck

2CBM Road Sweeper Truck
Condition	New condition/Right hand drive/4x2
Chassis	Brand			Changan
	Curb weight(kg)			2300kg
	Wheelbase(mm)			2600 mm
	Dimensions(mm)			4650 x 1750 x 2250 mm
	Overhang (front/rear) (mm)			1032 / 1868
	Wheel track (front/rear) (mm)			1506 / 1404
	Approach/Departure angle(°)			19/12
	Axle Load(kg)			1500/2000
	Max. driving speed(km/h)			90 km/h
	Tire	Specifications		6pcs with one spare tire
		Number		165R14
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 5 Forwards & 1 Reverse
Cabin	Left Hand Driving, 2 Passenger Allowed, with A/C
Engine	Model				Diesel Engine, 4 Cylinders
	Power(kw)/Horsepower(HP)				65 kw/88 HP
	Emission standard				Euro 3
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Sweeping System
Tank	Garbage tank		Tank material		Stainless steel 304
			Tank volume(cbm)		2 CBM
	Water tank		Tank material		Stainless steel 304
			Tank volume(cbm)		0.5 CBM
Auxiliary engine	Model		ISUZU Engine 77HP
	Power(kw)		28 kw
Brush	Quantity(pc)		4 pcs
	Working area(m)		2.7-2.8 m
Remarks	1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements.

Details

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck 0

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck 1

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck 2

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck 3

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q2: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
