Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck

Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck
Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck

تصویر بزرگ :  Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: CCC, SGS, BV
Model Number: CLW5121

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل: 30-35 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
برند شاسی: دانگ فنگ، ISUZU، Howo، Foton، JAC و غیره ابعاد: 8900*2600*3300mm
نیروی موتور: کامینز 170 اسب بخار موتور کمکی: کامینز 140 اسب بخار
Dust Tank: 9CBM, 9cbm, etc. Stainless steel 304 Water Tank: 5CBM, 5cbm, etc. Stainless steel 304
مواد: فولاد ضد زنگ رانندگی با دست: فرمان چپ یا راست دست
عملیات: خود بارگیری و تخلیه حداکثر قابلیت عملیات: 40000-80000 M2/H
Max. حداکثر Working Width عرض کار: 2.8-3.5 متر نقاشی رنگ و لوگو: طبق نیاز مشتری
گارانتی: 1 سال
برجسته کردن:

5cbm Dust Tank Road Sweeper Truck,9cbm Water Tank Road Sweeper Truck,5cbm Dust Tank Road Cleaning Truck

,

9cbm Water Tank Road Sweeper Truck

,

5cbm Dust Tank Road Cleaning Truck

Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Cleaning And Sweeper Truck


Description:

1. Main parts: stainless garbage bin, water tank, Italy hydraulic oil pump, germany magnetic valve, french Schneider eletronic control unit, auxiliary engine, suction panel, sprinkler system, brush.

2. Struture of sweeper truck: two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".

Most sweepers have the option of a hydraulic powered gutter broom on one or both sides of the truck and others use the broom inside the pickup head or dust suppression systems which agitate and move debris out of the curb edges and into the path of the truck while preventing dust


Specification:

Item Parameter
Working Performance Max sweep width 3.0m
Sweep speed 3-20km/h
Max sweep capacity 60000m2/h
Max inhalation of granularity ≥110mm
Angle of unloading ≥45°
Volume of water tank 5000L
Volume of garbage tank 9000L
Driving Performance Max speed 90km/h
Max gradeability 30%
Braking distance ≤10m
Min turning diameter ≤13.6m
Fuel Performance Fuel consumption(Driving) ≤12L/100km
Fuel consumption(Sweep working at 8km/h) 6.5L/h
2.7L/10000m2
Quality Parameters Curb weight 6000kg
Rated capacity 14000kg
GVW 20000kg
Dimension Parameter Overall dimensions 8900*2200*2800mm
Wheelbase 4700mm
Track front 1504mm
Track rear 1530mm
Front suspension 1070mm
Rear suspension 1580mm
Approach angle 24°
Departure angle 13°
Minimum Ground Clearance 190mm



Reference Photos

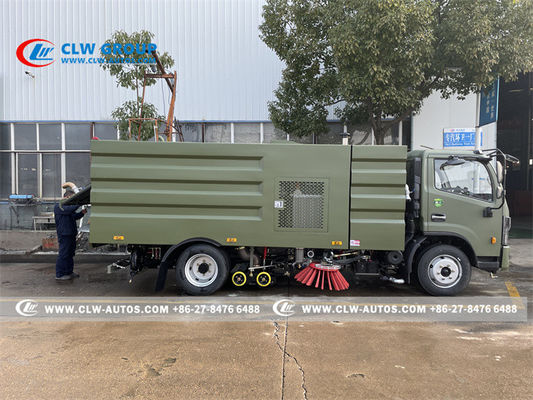

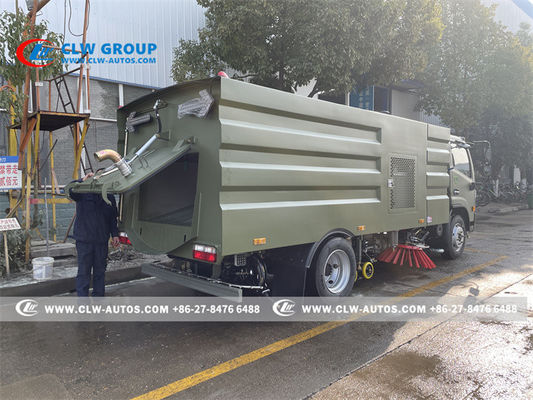

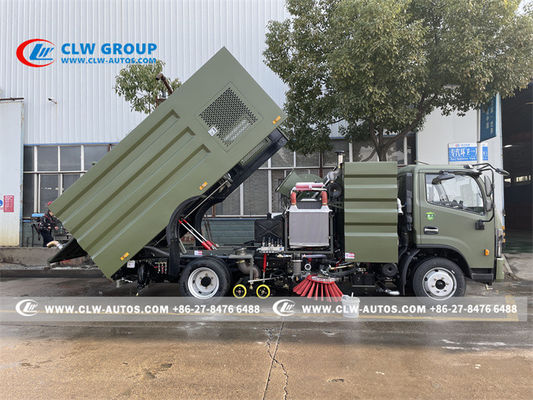

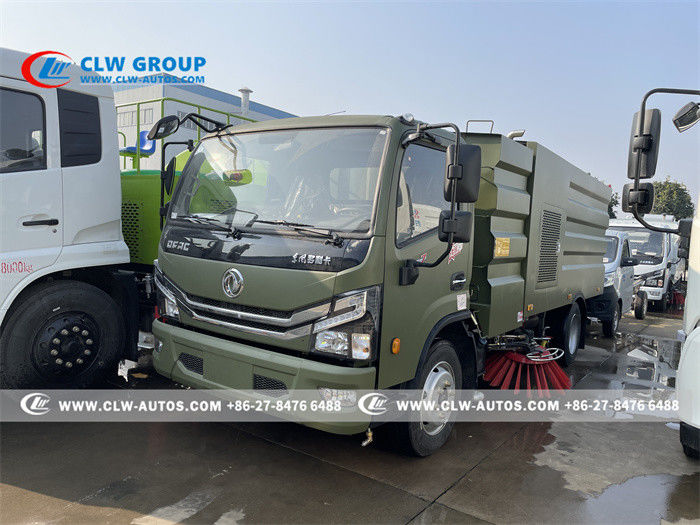

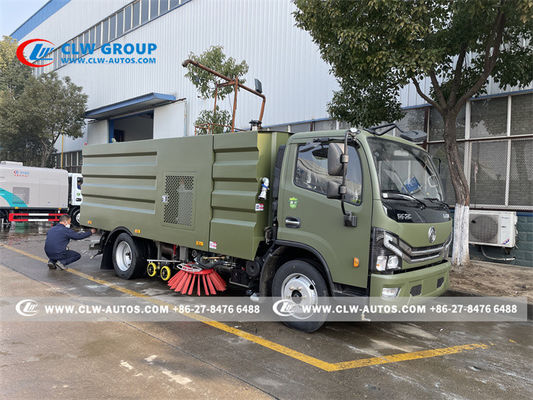

Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck 0Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck 1





Truck diagram

Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck 2





Main Details
Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck 3


Working Scene
Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck 4


Factory overview

Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck 5

Dongfeng 9cbm Water Tank 5cbm Dust Tank Road Sweeper Truck 6




Sales Service


1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ



Q1: What kinds of dust vacuum suction trucks I can order from your company?

A: There are various sizes of dust vacuum suction trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dust vacuum suction trucks to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many South America, Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
