2CBM Mini Street Sweeper Truck , Street Washing Truck Stainless Steel 304 Material

تصویر بزرگ : 2CBM Mini Street Sweeper Truck , Street Washing Truck Stainless Steel 304 Material

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW50749

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	T/T، L/C
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

موتور کمکی:	برند ISUZU	هوادار:	بدون نگهداری
مکش خلاء:	پشت تایر	برس ها:	4 واحد
دفترچه راهنمای عملیات:	بله	ویدئوی عملیاتی:	بله
رنگ:	نقاشی LOGO سفارشی طبق درخواست مشتری	گارانتی:	1 سال
برجسته کردن:	street sweeper vacuum truck,mechanical sweeper truck , mechanical sweeper truck

Small Sweeper 2CBM Mini Changan Truck Mounted Street Sweeping Vacuum Road Sweeper

Product Description

This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.

CLW group is located in Suizhou city,Hubei province, China with about 15 subsidiary companies like ChengLi Special Automobile Co., Ltd, CLW heavy industry Co.,Ltd, Hubei Weiyu Special Vehicle Co.,Ltd,, Hubei ChengLi Property and Investment Co.,Ltd, Suizhou ChengLi Mirco-loan Co.,Ltd and so on in vehicle manufacturing and selling,real estate,education,investment and etc.

Specifications of 2CBM Changan Road Sweeper Truck

2CBM Road Sweeper Truck
Condition	New condition/Right hand drive/4x2
Chassis	Brand			Changan
	Curb weight(kg)			2300kg
	Wheelbase(mm)			2600 mm
	Dimensions(mm)			4650 x 1750 x 2250 mm
	Overhang (front/rear) (mm)			1032 / 1868
	Wheel track (front/rear) (mm)			1506 / 1404
	Approach/Departure angle(°)			19/12
	Axle Load(kg)			1500/2000
	Max. driving speed(km/h)			90 km/h
	Tire	Specifications		6pcs with one spare tire
		Number		165R14
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 5 Forwards & 1 Reverse
Cabin	Left Hand Driving, 2 Passenger Allowed, with A/C
Engine	Model				Diesel Engine, 4 Cylinders
	Power(kw)/Horsepower(HP)				65 kw/88 HP
	Emission standard				Euro 3
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Sweeping System
Tank	Garbage tank		Tank material		Stainless steel 304
			Tank volume(cbm)		1.5 CBM
	Water tank		Tank material		Stainless steel 304
			Tank volume(cbm)		0.5 CBM
Auxiliary engine	Model		ISUZU Engine 77HP
	Power(kw)		28 kw
Brush	Quantity(pc)		4 pcs
	Working area(m)		2.7-2.8 m
Remarks	1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements.

Details

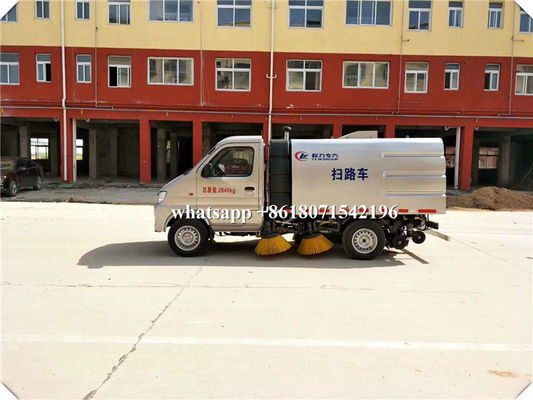

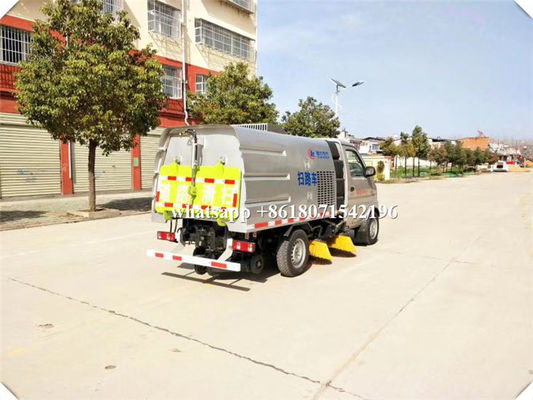

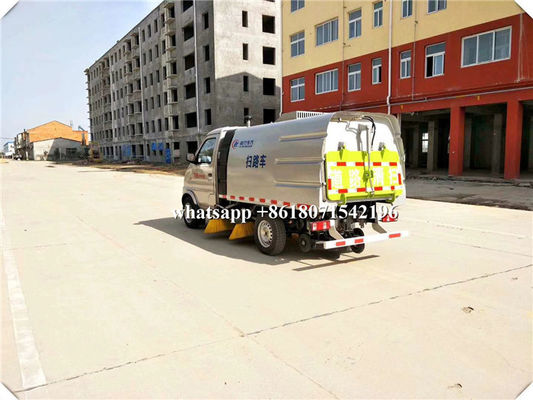

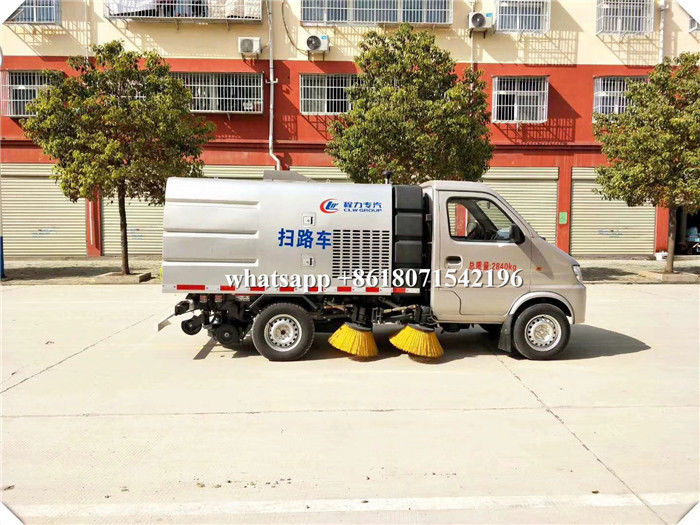

2CBM Mini Street Sweeper Truck , Street Washing Truck Stainless Steel 304 Material 0

2CBM Mini Street Sweeper Truck , Street Washing Truck Stainless Steel 304 Material 1

FAQ

Q1: What kinds of Sweeper Truck products I can order from your company?

A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.

Q2: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
