Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust

تصویر بزرگ : Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, BV
شماره مدل:	CLW5087ZYS

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

سرعت کامل:	3-20 کیلومتر در ساعت	حداکثر عرض رفت و برگشت:	2.8 متر
حداکثر ظرفیت تمیز کردن:	40000 متر مکعب در ساعت	موتور کمکی:	JMC، 77 اسب بخار
مخزن آب:	1.5CBM، فولاد ضد زنگ 304	مخزن گرد و غبار:	4CBM، فولاد ضد زنگ 304
موتور:	سانيو	پمپاژ:	پمپ آب الکترونیکی برند معروف چینی.
هوادار:	فن گریز از مرکز بدون نیاز به تعمیر و نگهداری (لوله خلاء و دستگاه مکش عقب)	برس های جارو:	4/2 برس جارو در هر طرف
کتابچه عملیات:	1 مجموعه برای هر مشتری	رنگ:	طبق نیاز مشتری
برجسته کردن:	street sweeper vacuum truck,mechanical sweeper truck , mechanical sweeper truck

**Howo 4*2 Road Sweeper Truck (1.5cbm water, 4cbm dust)**

Product Description
1. Sinotruk Howo Chassis: Chaochai Engine/95HP;
2. Heavy Duty Dust Tank with different size options: 4000L to 18000L (4CBM to 18CBM);
2. Hydraulic Control Loading & Unloading System;
3. Leakage Proof Devise to contain dirty water Inside;
4. Automatic Key Control & Hydraulic Handle Control;
5. Best Choice for Garbage Transporation Inside of City.

Product Specification

General Technical Parameters
Overall Dimension				5950X2000X2500 (mm)
Gross Vehicle Weight				8000(Kg)
Curb Weight				2300(Kg)
Chassis Specification
Chassis Brand			Sinotruk Howo
Drive model			4*2
Cabin			Howo 1880 single row, LHD, with air condition.
Number of Passengers			2
Engine	Model		CY4100ZLQ/95HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.
	Power		70KW/95HP
	Emission standard		EUROⅡ
	Displacement		3707(ml)
	Fuel type		Diesel
Gearbox			WLY6T100, 6Forwards & 1Reverse, manual operation, with power steering.
Brake System			Oil break
Wheel Base			3360mm
Front/Rear Axle Loading			2000/3500(Kg)
Overhang			Mechanical Suspension, 11/9+7H
Tire			7.00R16, steel wire tire, 6pc with 1 spare tire
Sweeping Speed			3-20 km/h
Upperstructure Specification
Tank		Water Tank		Material	Stainless steel 304
				Volume	1.5(cbm)
		Dust Tank		Material	Stainless steel 304
				Volume	4(cbm)
Auxiliary Engine		Model		JMC
		Power		57KW/77HP
Maximum sweep width				2.8m
Maximum cleaning capacity				40000m³/h
Standard Configuration		1. Equipped with 2 sweeping brushes on each side;
		2. Equipped with Sanyo Motor;
		3. Equipped with HIP-SD-7 electromagnetic valve set;
		4. Equipped with continuously variable speed automatic clutch;
		5. Equipped with German Schneider control switch;
		6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;
		7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;
		8. Equipped with hydraulic system(control box lift, rear door open);
		9. Equipped with rear LED arrow lights;
		10. User's operation manual 1 set.
Optional Configuration		Front flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.

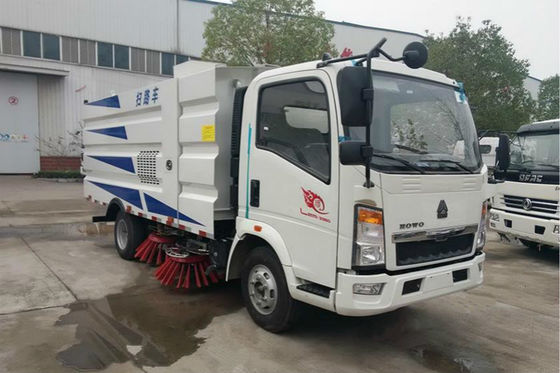

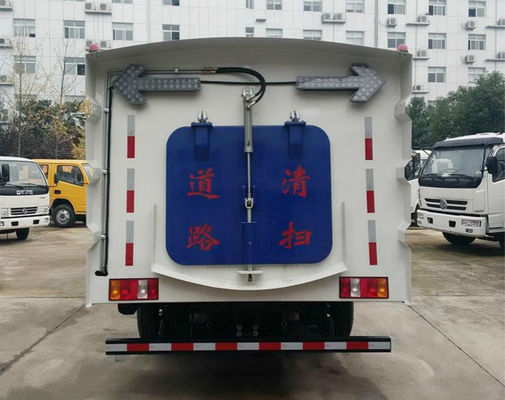

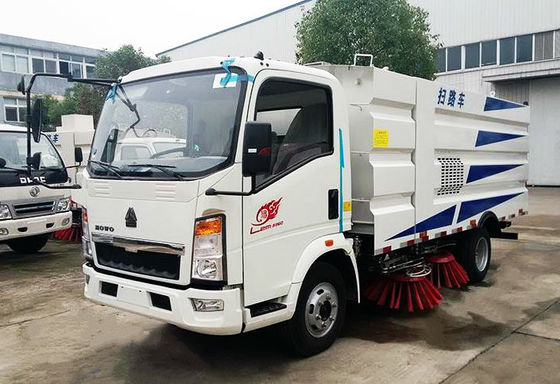

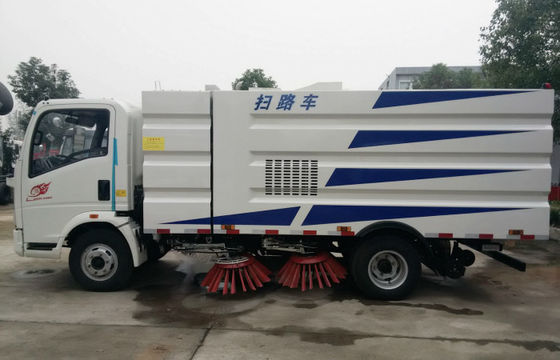

Product Show
Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust 0
Main Structure

Main Parts

Main Optional Parts

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
