30 Ton 6*4 Sinotruk Howo Used Dump Truck , Second Hand Tipper Truck For Construction

تصویر بزرگ : 30 Ton 6*4 Sinotruk Howo Used Dump Truck , Second Hand Tipper Truck For Construction

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	BV, SGS, CCC
شماره مدل:	CLW0581GS

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، واکس خورده، کشتی فله، رو-رو
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	1000 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	برندهای معروف چینی مانند Sinotruk Howo، CAMC، Shacman، Foton، North-benz، JAC، ISUZU و غیره.	ظرفیت بارگیری:	30-40 تن
نوع بلند کردن:	نوک هیدرولیک جلو	مواد دامپر:	Q345B با کیفیت بالا
ضخامت دامپر:	پایین 8 میلی متر، سمت 6 میلی متر.	زمان ساخت:	حدود یا بعد از 2013
رنگ:	قرمز، سفید، زرد، سبز یا به درخواست مشتری	گارانتی:	1 سال
برجسته کردن:	10 wheel dump truck,heavy equipment dump truck , heavy equipment dump truck

**30Ton 6*4 Sinotruk Sinotruk Howo Used Dump Truck**

Product Description
1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.

Product Specification

Cabin		HOWO 76 Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H) mm			8685×2496×3450
	Wheel base (mm)			4125+1400
	Wheel track (mm)			1500/1525
	Approach/Departure angle(°)			19/23
Weight in KGS	Tare Weight				12470kg
	Loading Capacity				30000kg
	Front axles loading capacity				HR9 1x9000kg
	Rear axles loading capacity				HC16 2x16000kg
Max. driving speed(km/h)						75
Engine			Brand				Sinotruk Howo
			Model				WD615.47
			Type				4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
			Horse Power(HP)				375HP
			Emission standard				Euro Ⅱ
Gearbox			HW1971, 10 forwards & 2 reverse
Clutch			Reinforced diaphragm clutch, diameter 430mm
Steering Gear			ZF 8118,power steering, hydraulic steering with power assistance
Fuel tank (L)			300
Tire			12.00R20 tubeless tire,10 pieces with one spare
Brakes			Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

Dump Body

Thickness	Side	6mm in high tensile strength steel Q345/B
	Front	6mm in high tensile strength steel Q345/B
	Bottom	8mm in high tensile strength steel Q345/B
Dump body Size	(L x W x H)	5800mm x 2300mm x 1000mm. 13.34CBM
Tipping hydraulics	Tipping type	Front tipping type
Tipping hydraulics	Tipping system	Complete set of hydraulics system.

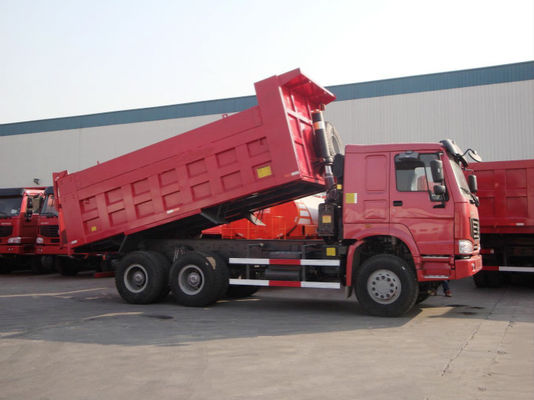

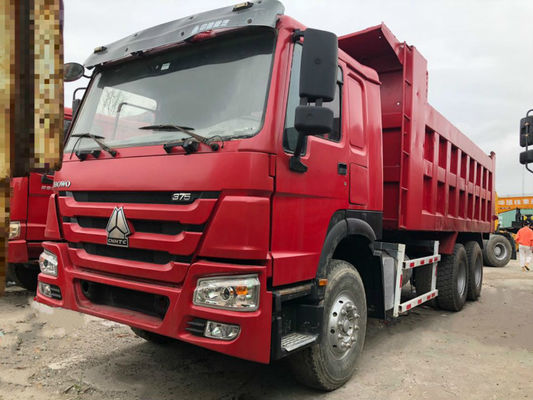

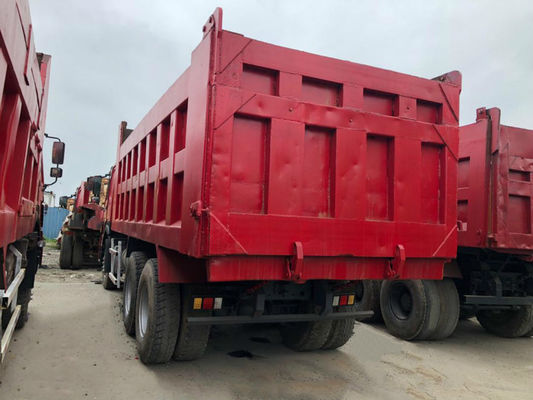

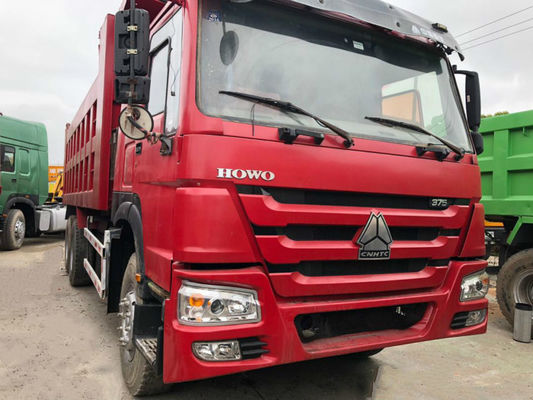

Product Show

30 Ton 6*4 Sinotruk Howo Used Dump Truck , Second Hand Tipper Truck For Construction 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ
Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
