8 Cbm 4*2 Swept Body Garbage Collector Truck 6 Ton Waste Removal And Transport Truck

تصویر بزرگ : 8 Cbm 4*2 Swept Body Garbage Collector Truck 6 Ton Waste Removal And Transport Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, BV, SGS
شماره مدل:	CLW5107BP

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	1000onit/ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، فوتون، ایسوزو، سینوتروک و غیره	اندازه قیف:	8cbm، نوع زمین
ظرفیت بارگیری:	6 تن	ضخامت هپر:	5 میلی متر، کربن فولاد Q235B
مواد محافظ:	فولاد کربن Q235A	مقدار قیف:	طبق درخواست مشتری
نوع زباله:	بالابر و بارگیری سیلندر هیدرولیک	راه کنترل:	شیر کنترل هیدرولیک سه طرفه
رنگ:	طبق درخواست مشتری	گارانتی:	1 سال
برجسته کردن:	waste collection truck,rubbish collection truck , rubbish collection truck

**Dongfeng 8cbm 4*2 Swept-body Garbage Collector Truck**

Product Description

1. Dongfeng Chassis of waste recycling truck: Engine 170HP, Fast Gearbox 6Forward & 2Reverse;

2. Garbage Bin with different size options of waste recycling truckk: 4cbm to 10cbm;
3. Hydraulic Control Loading&Unloading System;
4. Different shapes of waste recycling truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;

6. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;

7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;

8. Best Choice for Garbage collection and transporation Inside City.

Product Description

General Technical Parameters
Overall Dimension			7370X2470X3330 (mm)
Gross Vehicle Weight			12490(Kg)
Curb Weight			6295(Kg)
Chassis Specification
Chassis Brand		Dongfeng145
Drive model		4*2
Cabin		Single Row, LHD, with air condition.
Number of Passengers		3
Engine	Model	B170-33/170HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.
	Power	125KW/170HP
	Emission standard	EUROⅢ
	Displacement	5900(ml)
	Fuel type	Diesel
Gearbox		Fast 8JS85E, 6Forwards & 2Reverse, manual operation, with power steering.
Brake System		Oil break
Wheel Base		3950mm
Front/Rear Axle Loading		4990/7500(Kg)
Approach/Departure Angle		30/21(°)
Overhang		Mechanical Suspension, 9/11+8
Tire		9.00-20, 6pc with 1 spare tire
Max Driving Speed		90(km/h)

Upperstructure Specification
Garbage Hopper	Dimension	3700×1850×1400mm
	Standard Configuration	With one garbage bin, with hydraulic rear outrigger
	Volume	Ground type, 8CBM
	Loading Capacity	6Ton
	Thickness	5mm, Carbon Steel Q235B
Dump type	Hydraulic cylinder lifting and self-loading
Dump angle	≥45°
Hydraulic system pressure	≤16Mpa
Protective Material	Q235A Carbon Steel
Controlling Way	Three-way hydraulic control valve
Other Configuration	Reinforced hydraulic swept-body system, with Double hydraulic cylinder Swing Arm, Chain. Hydraulic multi-way valve control.
Options	Electronically controlled valve, trash bin type, trash bin quantity, etc.

Product Show

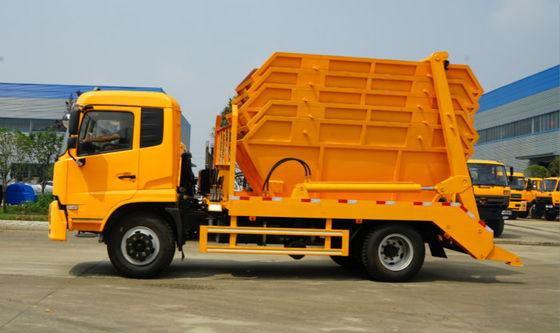

8 Cbm 4*2 Swept Body Garbage Collector Truck 6 Ton Waste Removal And Transport Truck 1

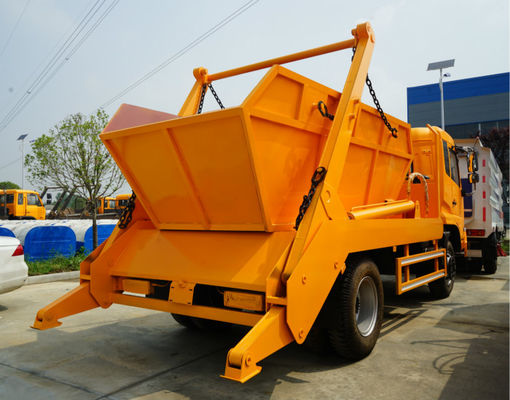

8 Cbm 4*2 Swept Body Garbage Collector Truck 6 Ton Waste Removal And Transport Truck 2

Bulk Order of 120 Units to Madagascar

8 Cbm 4*2 Swept Body Garbage Collector Truck 6 Ton Waste Removal And Transport Truck 3

Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage truck products?

A: China GB local standard.

Q3: Can we adopts International brand fuel pump for garbage truck?

A: Sure, we already cooperated with many international brand supplier.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
