SGS High Pressure Road Wash Sweep Truck / Vacuum Street Cleaning Truck

تصویر بزرگ : SGS High Pressure Road Wash Sweep Truck / Vacuum Street Cleaning Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW50752

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	T/T، L/C
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	فولاد ضد زنگ 304	موتور کمکی:	برند ISUZU
قلم مو:	2 واحد	پایه:	3800 میلی متر
رنگ:	نقاشی LOGO سفارشی طبق درخواست مشتری	مکش خلاء:	بله پشت جارو
پمپاژ:	پمپ فشار کم Weilong
برجسته کردن:	street sweeper vacuum truck,mechanical sweeper truck , mechanical sweeper truck

Product Description

This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.The utility model has the characteristics of simple operation, high dust absorption efficiency and continuous operation.Widely used in municipal, highway, national and provincial arterial road construction dust, particle recovery operations.

Chassis
Drive Model	4X2, Left hand drive
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)		700022002700
	Wheel base (mm)		3800
	Wheel track (front/rear) (mm)		1630/1500
	Approach/Departure angle(°)		20/15
Weight in KGS	Curb Weight (kg)		4200
	Front/Rear axle loading(kg)		2500/7000
Max. driving speed(km/h)			90
Engine	Model		CHAOCHAI
	Horse Power(HP)		156HP
	Emission standard		Euro IV
Gearbox	6 forwards & 1 reverse
Steering Gear	Power steering, hydraulic steering with power assistance
Brakes	Hydraulic oil brake
Tire	8.25 , 6 + 1(spare tire)
Upper & Equipment
Tank	Garbage tank	Tank material			Stainless steel 304
		Tank volume(cbm)			5 cbm
	Water tank	Tank material			Stainless steel 304
		Tank volume(cbm)			2.5 cbm
Auxiliary engine	Model	ISUZU 64KW
	Quantity(No.)	1
	Power(kw/HP)	64 /87
Sweeper	Sweeper Brush	Quantity(No.)		2
	Max. Working width(mm)	3200mm
Pump	Weilong Low pressure pump
Vacuum Cleaner	1 Unit, behind the sweeper brush
Remarks	1. Rear LED pilot lamp
	2. Self unloading box body
	3. Power system: DC 24V
	4. The color will be designed on basis of your requirements.

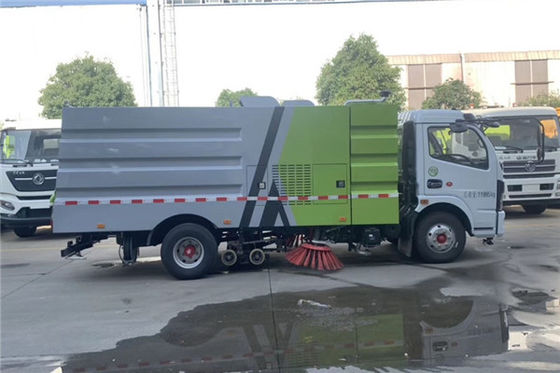

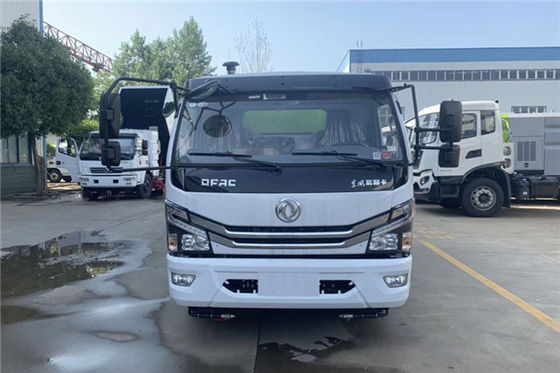

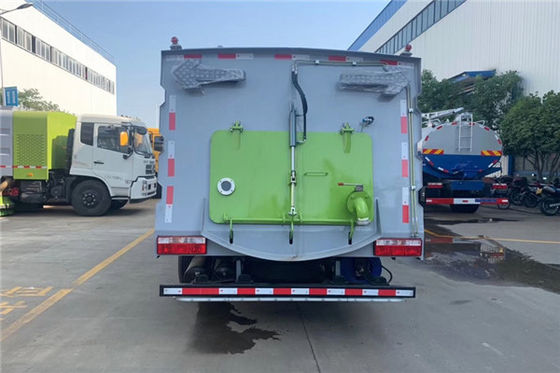

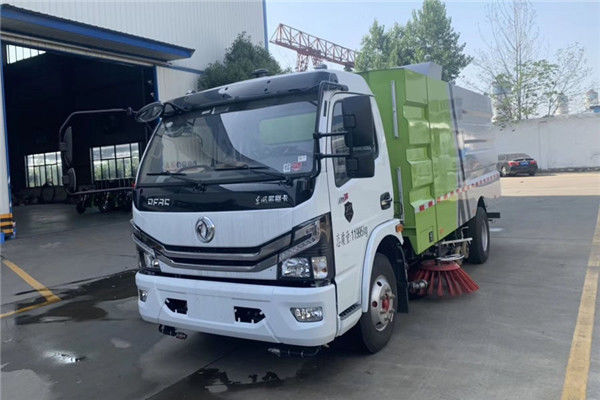

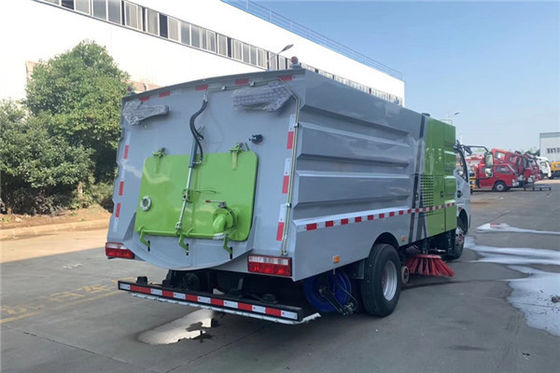

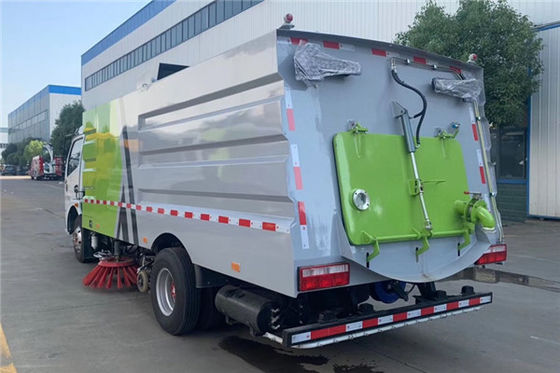

Working Show

SGS High Pressure Road Wash Sweep Truck / Vacuum Street Cleaning Truck 0

SGS High Pressure Road Wash Sweep Truck / Vacuum Street Cleaning Truck 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Sweeper Truck products I can order from your company?

A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.

Q2: What is your production standard of Sweeper Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Sweeper Truck is produced as per China GB local standard; We can't export CBU Sweeper Truck to those countries, but we can export super structure to those market, we exported 50 units Sweeper Truck to USA market at the beginning of 2017.

Q3: Have you supplied to Sweeper Truck any renowned companies?

A: Our group company is a regular strategic partner of some big government department and waste treatment company. We have supplied many different type Sweeper Truck for them with different chassis brand.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
