HOWO 4x2 5 Ton Hydraulic Truck Mounted Crane With Cummins 168HP Engine

تصویر بزرگ : HOWO 4x2 5 Ton Hydraulic Truck Mounted Crane With Cummins 168HP Engine

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW50091

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند کامیون:	هاو	موتور:	کامینز، 168 اسب بخار
پایه:	4500 میلی متر	جعبه دنده:	6 جلو و 1 عقب
جرثقیل:	جرثقیل بوم تلسکوپ 5 تنی XCMG	رنگ:	نقاشی LOGO سفارشی طبق درخواست مشتری
برند جرثقیل:	SANY، XCMG، CHENGLI و سایر برندهای چینی	زاویه چرخش:	360 درجه تمام چرخش
برجسته کردن:	truck mounted hydraulic crane,telescopic boom truck mounted crane , telescopic boom truck mounted crane

HOWO 4x2 Cummins 168HP 5Ton Telescoping Boom Crane Hydraulic Truck Mounted Crane

Product Description

Crane Brand of truck mounted straight arm crane: XCMG, SANY PALFINGER, Other Chinese Brand
Heavy Duty Cargo box.
H Shape Hydraulic front & Rear Leg for safety.
Folded Arm & Telescopic Straight Arm Crane for option.
Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
14ton,16ton,20ton,25ton

Chassis
Drive Model	4x2, Left hand drive
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)	821525003850
	Wheel base (mm)	4500
Weight in KGS	Curb Weight (kg)	8450
	Gross weight(kg)	15795
	Front/Rear axle loading(kg)	2700/7200
Max. driving speed(km/h)		90
Engine	Horse Power(HP)	Cummins, 168HP
	Emission standard	Euro II
Gearbox	6 forwards & 1 reverse
Steering Gear	Power steering, hydraulic steering with power assistance
Brakes	Air Brake
Tire	10.00-20 tire, 10pcs with 1 spare tire
Upper Cargo
Material	Q235B
Dimension	5070X2400X600mm
Thickness	3mm for side /4 mm for the bottom
Technical parameter of crane
Crane Model	5Ton 4 Arms Knuckle Boom Crane
Crane Weight	2260kg
Max. Lifting capacity	5000kg
Max lifting height	12M
Working radius	11M
Max. Oil flow of hydraulic system	32L/min
Max. Pressure of Hydraulic system	20MPa
Oil tank capacity	90L
Installation space	900 mm
Rotation angle	360 degree All rotation
Remarks	1.Color is optional 2.Customized LOGO painting as per customer request

Product details

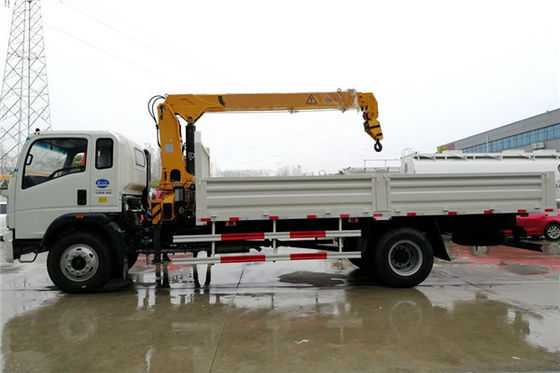

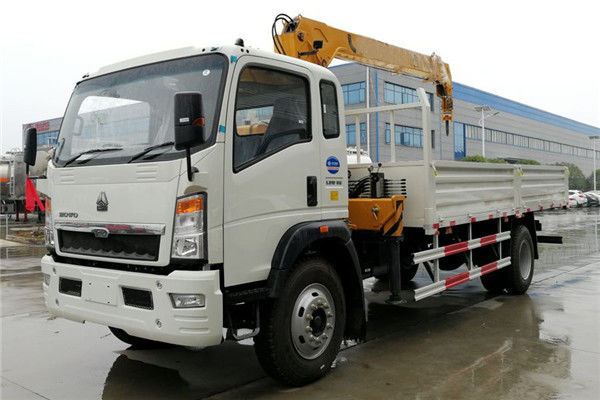

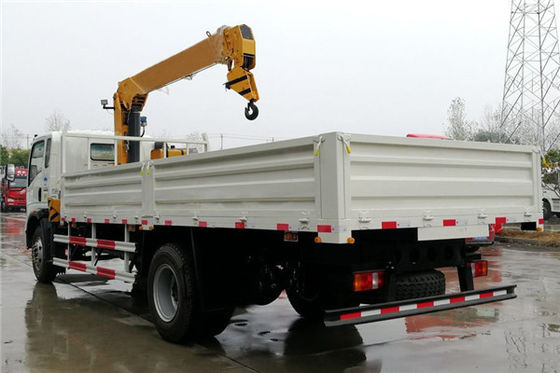

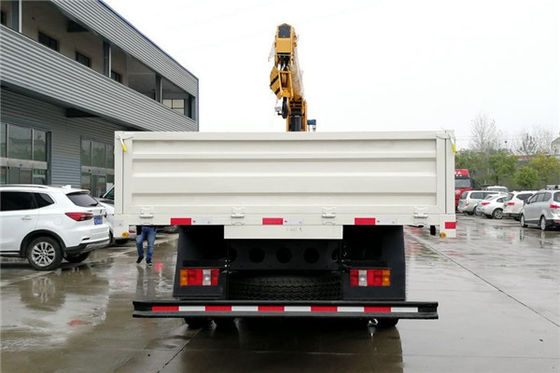

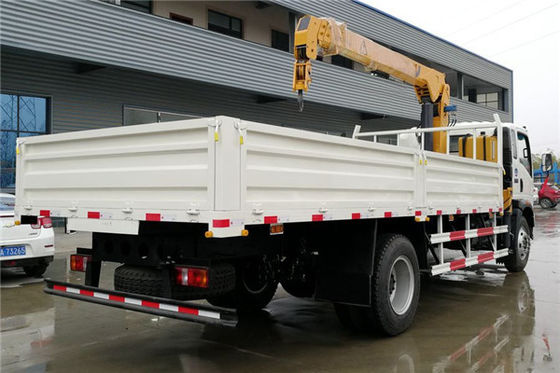

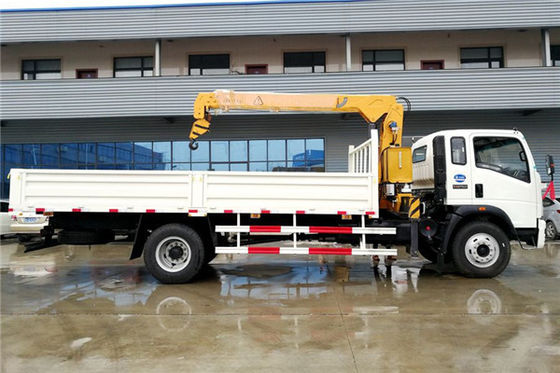

HOWO 4x2 5 Ton Hydraulic Truck Mounted Crane With Cummins 168HP Engine 0

HOWO 4x2 5 Ton Hydraulic Truck Mounted Crane With Cummins 168HP Engine 1

Technical Drawing:

HOWO 4x2 5 Ton Hydraulic Truck Mounted Crane With Cummins 168HP Engine 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted straight arm crane I can order from your company?

A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted straight arm crane to any overseas companies?

A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
