Dongfeng 4x2 Truck Mounted Telescopic Crane 6.3 Ton With Telescoping Boom Crane

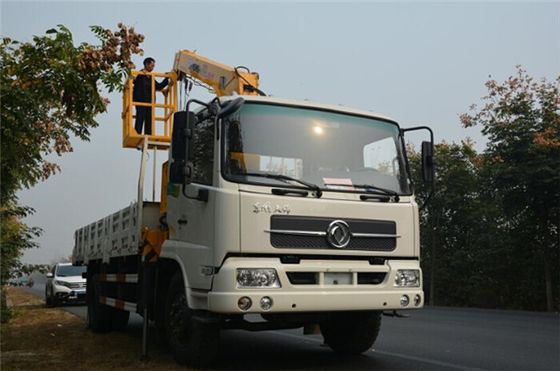

تصویر بزرگ : Dongfeng 4x2 Truck Mounted Telescopic Crane 6.3 Ton With Telescoping Boom Crane

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW50082

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند کامیون:	دونگفنگ	موتور:	190 اسب بخار
پایه:	4700 میلی متر	جعبه دنده:	6 جلو و 1 عقب
جرثقیل:	جرثقیل بوم تلسکوپی 6.3 تن	رنگ:	نقاشی LOGO سفارشی طبق درخواست مشتری
برند جرثقیل:	SANY، XCMG، CHENGLI و سایر برندهای چینی	زاویه چرخش:	360 درجه تمام چرخش
برجسته کردن:	truck mounted hydraulic crane,telescopic boom truck mounted crane , telescopic boom truck mounted crane

Dongfeng 4x2 Truck Mounted Telescopic Crane 6.3ton With Telescoping Boom Crane

Product Description

Crane Brand of truck mounted straight arm crane: XCMG, SANY PALFINGER, Other Chinese Brand
Heavy Duty Cargo box.
H Shape Hydraulic front & Rear Leg for safety.
Folded Arm & Telescopic Straight Arm Crane for option.
Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
14ton,16ton,20ton,25ton

Chassis
Drive Model	4X2, Left hand drive
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)	820023002760
	Wheel base (mm)	4700
Weight in KGS	Curb Weight (kg)	8800
	Gross weight(kg)	5805
	Front/Rear axle loading(kg)	5000/10000
Max. driving speed(km/h)		90
Engine	Horse Power(HP)	190
	Emission standard	Euro II
Gearbox	6 forwards & 1 reverse
Steering Gear	Power steering, hydraulic steering with power assistance
Brakes	Air Brake
Tire	10.00-20 tire , 6 + 1(spare tire)
Upper Cargo
Material	Q235B
Dimension	4650X2300X550mm
Thickness	3mm for side /4 mm for the bottom
Technical parameter of crane
Crane Model	SQS157,6.3 Ton 4 Arms Knuckle Boom Crane
Crane Weight	2050kg
Max. Lifting capacity	6300 kg
Max lifting height	12.8M
Working radius	11 M
Max. Oil flow of hydraulic system	55L/min
Max. Pressure of Hydraulic system	18MPa
Oil tank capacity	80L
Installation space	900 mm
Rotation angle	360°All rotation
Remarks	1.Color is optional 2.Customized LOGO painting as per customer request

Specification

Dongfeng 4x2 Truck Mounted Telescopic Crane 6.3 Ton With Telescoping Boom Crane 0

Technical Drawing:

Dongfeng 4x2 Truck Mounted Telescopic Crane 6.3 Ton With Telescoping Boom Crane 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted straight arm crane I can order from your company?

A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted straight arm crane to any overseas companies?

A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
