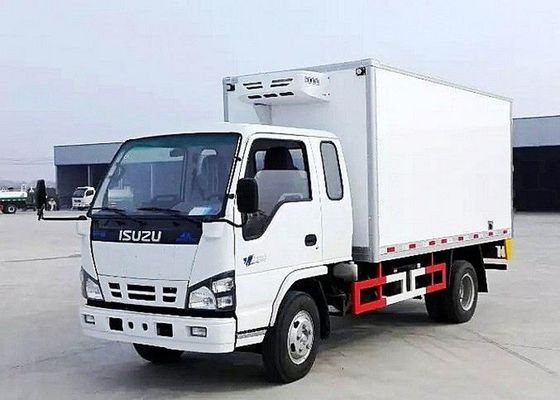

3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish

همه محصولات

کامیون تانکر گاز مایع (109)

مخزن ذخیره گاز LPG (155)

کامیون تحویل سوخت (153)

کامیون فشرده سازی زباله (172)

کامیون های دفع زباله (93)

کامیون پاک کننده جاده (66)

کامیون مکنده خلاء (145)

کامیون آبی (102)

کامیون باکس یخچال دار (91)

کامیون بیلبورد LED (36)

ماشين کشنده (78)

کامیون بلند کننده هوایی (40)

جرثقیل تلسکوپی سوار بر کامیون (82)

کامیون آتش نشانی (67)

کامیون‌های میکسر بتن آماده (24)

کامپران سنگین (28)

تانک ها، کامیون ها و تریلرها (174)

کامیون کشنده (21)

بهترین محصولات

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

JAPAN Famous Brand 4-5 Tons Refrigeration Truck 4X2 Refrigerator Freezer Cargo Van Truck

Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها

چت IM آنلاین در حال حاضر

3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish

تصویر بزرگ : 3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	ISO, CCC, SGS, BV, ASME
شماره مدل:	CLW5056A

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، Ro-Ro
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد وانت:	صفحه رنگی داخل، FRP خارج از ون، فوم پلی اورتان وسط	ضخامت خارجی وانت:	1.2mm 1.5mm 1.8mm 2.0mm
ضخامت بین بستر ون:	80mm 100mm 120mm	ضخامت داخلی وان:	1.2mm 1.5mm 1.8mm 2.0mm
وزن بارگیری:	3-5 تن	مدل یخچال:	Thermo King، Carrier، Hanxue، Huatai، Hana
برند شاسی:	ایسوزو، دانگ فنگ، فوتون، هوو و غیره	مدل محرک:	4x2/6x4/8x4; طبق اندازه ساختار فوق العاده
پایه چرخ:	3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm	گارانتی:	1 سال
برجسته کردن:	refrigerated delivery truck,frozen meat delivery trucks , frozen meat delivery trucks

3-5 tons, ISUZU 4×2, Refrigerated Van Truck for meat/fish/vegetable/vaccinum

Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

Product Show

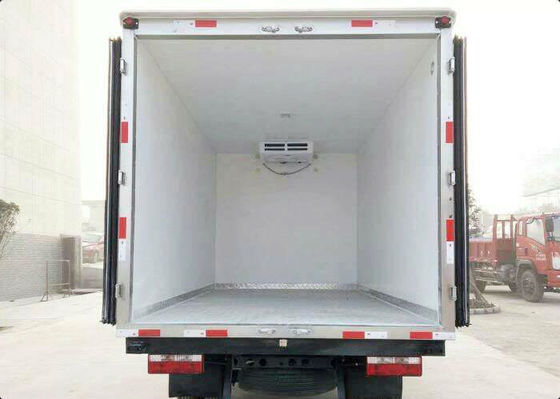

3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish 0

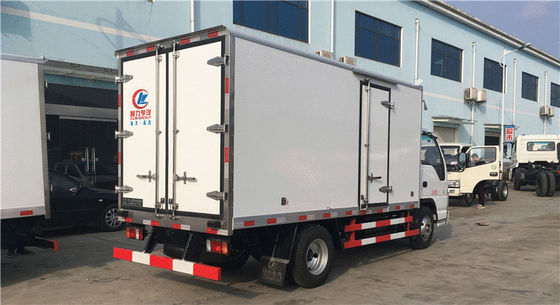

3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish 1

Product Specification

General Technical Parameters
Overall Dimension		5995×2130×2960(mm)		Gross Vehicle Weight	8300(Kg)
Curb Weight		3210(Kg)		Loading Weight	5000(Kg)
Chassis Specification
Item No.			Parameters
Chassis Brand			ISUZU 120P
Cabin			Single, Left Hand Driving, with ABS
Engine	Model		4KH1-TCG40, 4 Cylinders
	Power		88KW/120HP
	Emission standard		EUROIV
	Displacement		2999(ml)
	Fuel type		Diesel
Gearbox			5 Forward & 1 Reverse Gear
Brake System			Pneumatic
Steering Gear			Power Assistant
Wheel Base			3360(mm)
Front/Rear Tread			1504/1425(mm)
Front/Rear Axle Loading			2000/4800(Kg)
Approach/Departure Angle			24/16(°)
Tire			7.00-16
Max Driving Speed			100(km/h)
Superstructure
Van	Box Dimension		409519001800(mm)
	Refrigerator Model		Thermo King, KV300
	Van Material		Color plate inside, FRP outside of the van, polyurethane foam middle
	Back Door		The opening of the door can be different directions
	Normal Temperature		0° C— -18 °

Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
