ISUZU 9CBM Road Sweeper Truck 4x2 Vacuum Sweeper Road Washing Truck

تصویر بزرگ : ISUZU 9CBM Road Sweeper Truck 4x2 Vacuum Sweeper Road Washing Truck

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW
گواهی:	ISO, CCC
شماره مدل:	CLW5160TXCE

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه
زمان تحویل:	35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	280 واحد در ماه

مخاطب

توضیحات محصول جزئیات

تانکر آب:	2.0cbm	تانکر زباله:	7.0CBM
معاون موتور:	برند ISUZU	هوادار:	برند معروف چین
پمپ اب:	برند معروف چین	مدل محرک:	4x2/6 چرخ/4*2
فاصله بین دو محور (میلی متر):	4475mm 4500mm 4700mm 5600mm	رنگ:	سفید؛ آبی؛ سبز؛ زرد؛ سفارشی
برجسته کردن:	street sweeper vacuum truck,mechanical sweeper truck , mechanical sweeper truck

ISUZU 9CBM Road sweeper truck 2CBM water tank 7CBM dust tank 4x2 vacuum sweeper truck road cleaning truck

Product Description

1. Purpose: The main working place of this vacuum sweeper truck is cement plant, steel-making plant, coal factory and so on.

2. Main parts: Deputy engine, water pump, fan and hydraulic system etc.

3. Deputy engine brand: ISUZU brand

Chassis
Drive Model	4X2, Left hand drive
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)		7350×2210×2600
	Wheel base (mm)		4475
	Overhang (front/rear) (mm)		1110/1765
	Wheel track (front/rear) (mm)		1680/1650
	Approach/Departure angle(°)		17/13
Weight in KGS	Curb Weight (kg)		7425
	Front/Rear axle loading(kg)		4000/7000
Max. driving speed(km/h)			110
Engine	Model		4HK1-TCG40
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		190
	Displacement (ml)		5190
	Emission standard		Euro IV
Gearbox	6 forwards & 1 reverse
Steering Gear	Power steering, hydraulic steering with power assistance
Brakes	Hydraulic oil brake
Tire	8.25-16 tire , 6 + 1(spare tire)
Upper & Equipment
Tank	Garbage tank	Tank material			Stainless steel 304
		Tank volume(cbm)			7.0 cbm
	Water tank	Tank material			Stainless steel 304
		Tank volume(cbm)			2.0 cbm
Operation detail	Max. Operation ability(m2/h)	45000
	Max. Sucking dimension(mm)	50
Auxiliary engine	Model	CUMMINS Brand
	Quantity(No.)	1
	Power(kw/HP)	103/140
Vacuum cleaner	Main Vacuum cleaner	Quantity(No.)		1
		Width(mm)		2400
	Side Vacuum cleaner	Quantity(No.)		2
		Width(mm)		800
	Max. Working width(mm)	3200
	Sucking Nozzle wheel	Quantity(No.)		4
		Height		Adjustable
Remarks	1. Rear LED pilot lamp 2. Self unloading box body 3. Power system: DC 24V 4. The color will be designed on basis of your requirements. 5. Rear sucking hose as per customer request

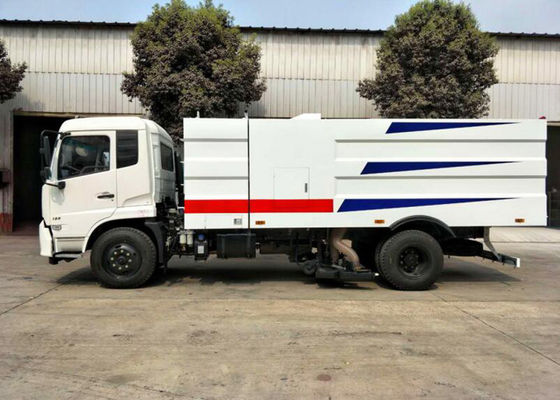

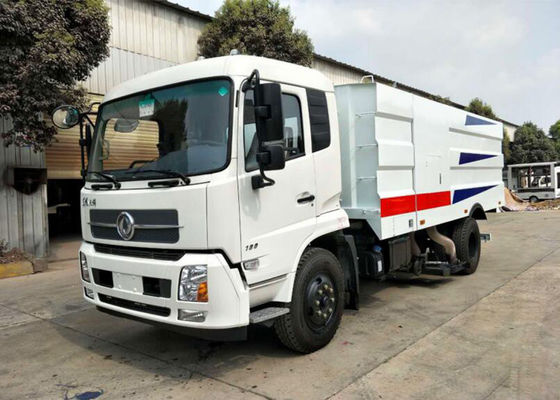

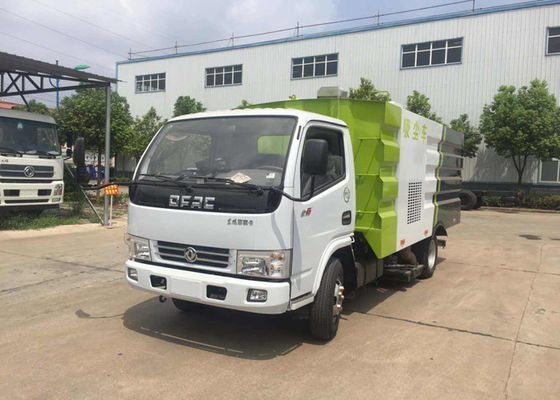

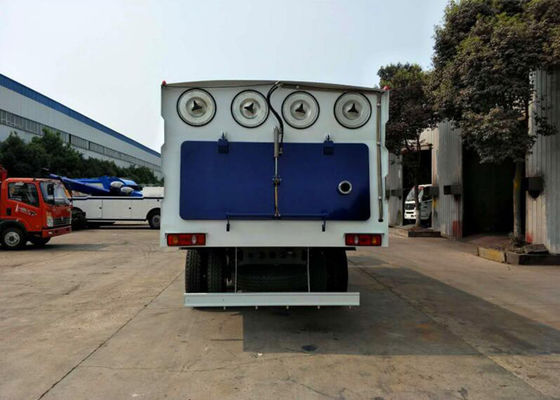

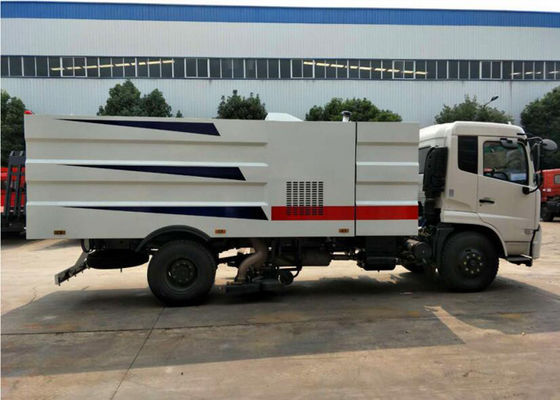

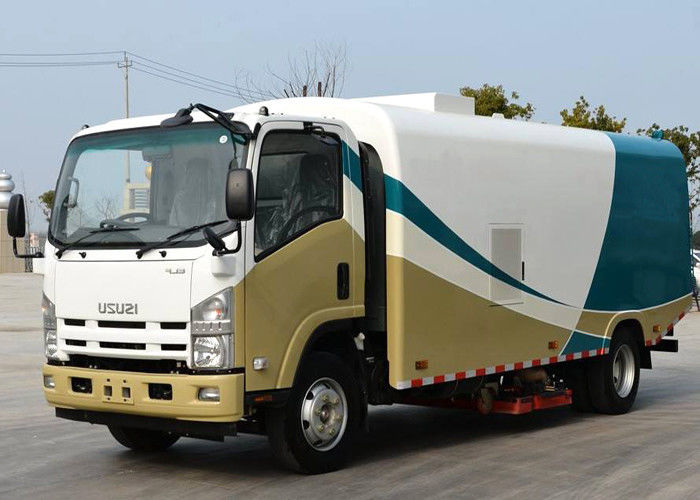

Products Show

ISUZU 9CBM Road Sweeper Truck 4x2 Vacuum Sweeper Road Washing Truck 0

ISUZU 9CBM Road Sweeper Truck 4x2 Vacuum Sweeper Road Washing Truck 1

ISUZU 9CBM Road Sweeper Truck 4x2 Vacuum Sweeper Road Washing Truck 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Sweeper Truck products I can order from your company?

A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.

Q2: What is your production standard of Sweeper Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Sweeper Truck is produced as per China GB local standard; We can't export CBU Sweeper Truck to those countries, but we can export super structure to those market, we exported 50 units Sweeper Truck to USA market at the beginning of 2017.

Q3: Have you supplied to Sweeper Truck any renowned companies?

A: Our group company is a regular strategic partner of some big government department and waste treatment company. We have supplied many different type Sweeper Truck for them with different chassis brand.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
