Dongfeng Hook Lift Garbage Truck , 12 Tons 12cbm Roll Off Container Garbage Truck

تصویر بزرگ : Dongfeng Hook Lift Garbage Truck , 12 Tons 12cbm Roll Off Container Garbage Truck

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW / Chengli
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW5161

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم، کشتی فله، رو-رو
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

ماده جعبه:	کربن فولاد Q235B	برند کامیون:	دانگ فنگ، هوو، جک، جی ام سی، فاو، فورلند، فوتون
موتور کامیون:	موتور کامینز 180 اسب بخار 190 اسب بخار 210 اسب بخار	جعبه دنده:	5 رو به جلو و 1 برعکس
لاستیک:	9.00R20،10.00R20،6 عدد با یک عدد زاپاس	فرمان:	lhd، فرمان چپ، rhd، فرمان راست
برجسته کردن:	rubbish collection truck,hook lift garbage truck , hook lift garbage truck

Dongfeng Hook Lift Garbage Truck 12tons 12cbm roll-off container garbage truck

Product Description

1. Dongfeng Chassis of Hook Lift Garbage Truck: Engine 180HP, Fast Gearbox 5Forward & 1 Reverse,

2. Garbage Bin with different size options of Hook Lift Garbage Truck: 4cbm to 12cbm
2. Hydraulic Control Loading & Unloading System
3. Different shapes of Hook Lift Garbage Truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. high-tensile steel chains:imported hydraulic oil cylinder and sealing material

5. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.

6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck

8. Best Choice for Garbage collection and transporation Inside City.

Drive type	4*2, New condition, LHD
Vehicle Main Dimensions	(L x W x H)mm		7300×2470×3150
	Wheel base (mm)		4500,4700
	Track front/rear mm		1880/1800
	F/R Axle-Load		5800/10000 kg,
	Approach/departure angle		20/16
	Curb weight		7945 kg
	GVW		15600 kg
Max. driving speed(km/h)			95
Engine	Brand		Cummins
	Model		B170 33,B180 33,B190 33
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling;
	Horse Power(HP)		170,180,190
	Emission standard		Euro III
Gearbox	6 forwards& 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	9.00R20,10.00R20, 7 pc including 1 spare tire
Steering Gear	power steering, hydraulic steering with power assistance
Equipment for Garbage Compactor
Garbage Box Material	Carbon Steel Q235
Garbage Box Volume	10cbm,12cbm
Hydraulic System	Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.

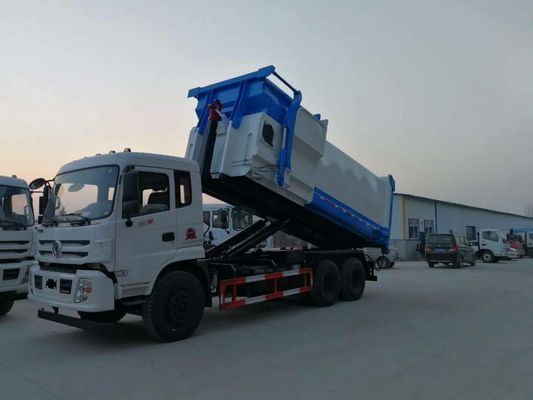

Product Photos

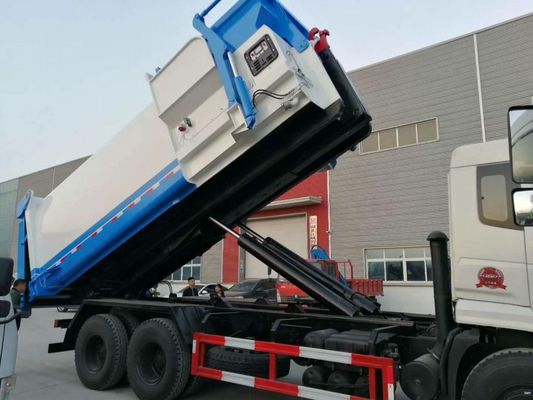

Structure of waste collection truck

1) Rolling polley:at two rear sides of garbage truck and adapts high tensile steel

2) Main arm hook

3) Knocking hook

4) Double oil cylinders

5) Multi-way valve system

6) One-key control in cabin and easy for operation

Dongfeng Hook Lift Garbage Truck , 12 Tons 12cbm Roll Off Container Garbage Truck 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of Hook Lift Garbage Truck I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied Hook Lift Garbage Truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered gHook Lift Garbage Truck to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
