10 Wheels 10T Truck Bed Mounted Crane Straight Boom Q235 Carbon Steel Box Material

تصویر بزرگ : 10 Wheels 10T Truck Bed Mounted Crane Straight Boom Q235 Carbon Steel Box Material

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW
گواهی:	ISO, CCC
شماره مدل:	CLW5160GSQ

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	55000-73500 USD/UNIT
جزئیات بسته بندی:	بسته بندی برهنه
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند جرثقیل:	CLW/SANY PALFINGER/XCMG	ظرفیت بلند کردن:	8 تن / 10 تن / 12 تن
مدل محرک:	6x4/6x6;	فاصله بین دو محور (میلی متر):	4300+1350/4600+1350/5825+1350mm;
رنگ:	سفید؛ آبی؛ سبز؛ زرد؛ سفارشی	ماده جعبه:	فولاد کربن Q235
ضخامت پایین (میلی متر):	3.0mm/4.0mm/5.0mm	ضخامت صفحه جانبی (میلی متر):	1.8mm/2.0mm
برجسته کردن:	truck mounted hydraulic crane,telescopic boom truck mounted crane , telescopic boom truck mounted crane

10 Wheels 10T Truck mounted telescopic crane 10tons straight boom straight arm truck crane

Product Description

1. Purpose: It's used for lifting all kinds of cargo and transporting it, for jetty and construction site use!

2. Main parts: Crane. Difference lifting capacity crane match different size chassis.

3. Advantage: One truck can realize the purpose of crane and cargo truck .

Chassis	Curb weight(kg)		10000
	Wheelbase(mm)		5825+1350/4600+1350
	Dimensions(mm)		11970×2500×3850
	Overhang (front/rear) (mm)		1500/3295
	Approach/Departure angle(°)		16/8.5
	Axle Load(kg)		7000/18000
	Max. driving speed(km/h)		100
	Brand		SINOTRUK
	Model		HOWO
	Tire	Number	10pcs with one spare tire
		Specifications	12R22.5
Clutch	Reinforced diaphragm clutch
Gear box	10 Forwards and 2 Reverses
Cabin	It can accommodate three people
Engine	Model			WD615.47
	Displacement(ml)			9726
	Power(kw)/Horsepower/(HP)			273/371
	Emission standard			Euro 2
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Remarks	With Air conditioning
Upper
Box	Max. Capacity(T)			25-30T
	Size(LWH)			7.02.50.8m
	Tank material			High quality Q235 carbon steel
	Boom Type			Straight boom
	Max. Lifting Weight(kg)			1000/12000
	Max. Pressure of Hydraulic System(MPa)			30
	Crane Weight(kg)			4130
	Installation(mm)			1400

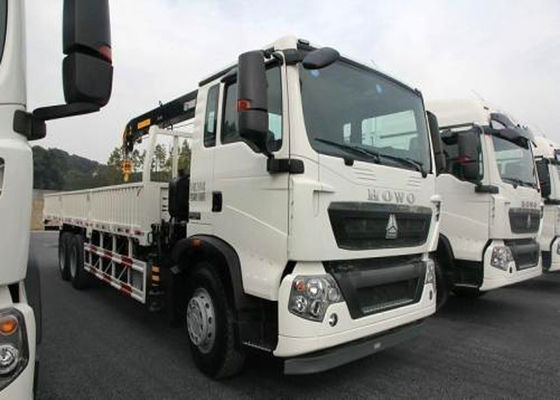

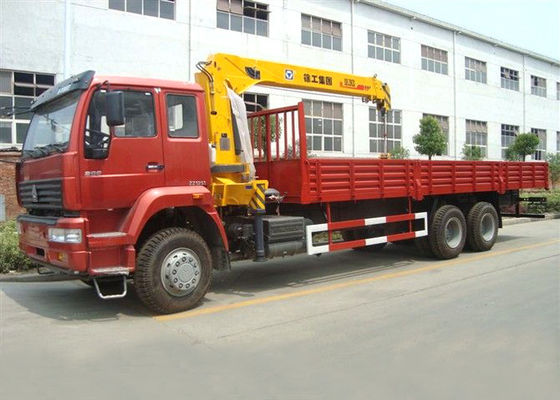

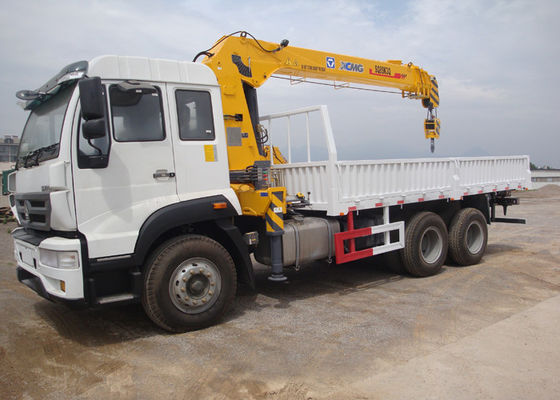

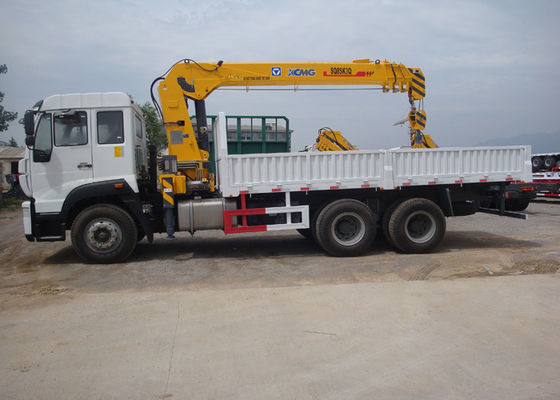

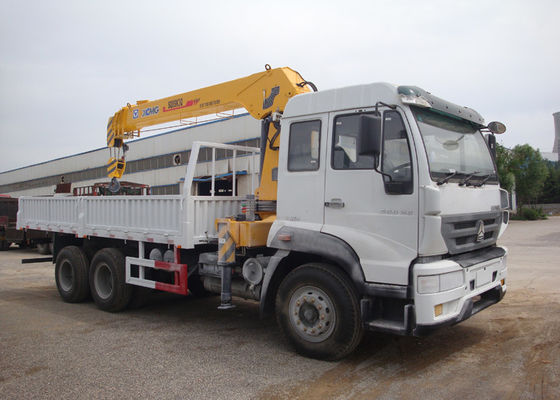

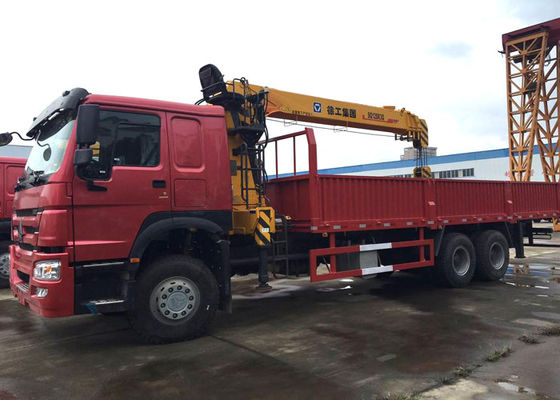

Products Show

10 Wheels 10T Truck Bed Mounted Crane Straight Boom Q235 Carbon Steel Box Material 0

10 Wheels 10T Truck Bed Mounted Crane Straight Boom Q235 Carbon Steel Box Material 1

10 Wheels 10T Truck Bed Mounted Crane Straight Boom Q235 Carbon Steel Box Material 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?

A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?

A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
