Rescue Fire Brigade Truck Howo 4 X 2 Emergency Fire Fighting Truck With 5 Tons Crane

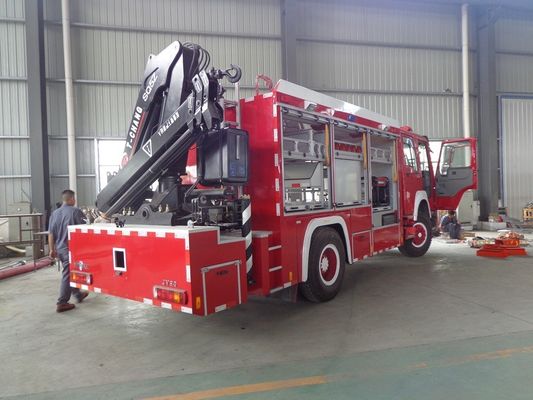

تصویر بزرگ : Rescue Fire Brigade Truck Howo 4 X 2 Emergency Fire Fighting Truck With 5 Tons Crane

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,SGS,BV
شماره مدل:	CLW5208

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

شاسی کامیون:	دانگ فنگ، هوو، ISUZU، Shacman، CAMC، Foton	ظرفیت:	8 تن، 8 تن، 8 تن، 9 تن، 9 تن، 9 تن
تایپ کنید:	کامیون آتش نشانی مخزن آب، فوم، کامیون آتش نشانی پودر خشک، ماشین آتش نشانی نجات	پمپ آتش:	مارک چینی
دامنه مانیتور آتش:	≥50 متر	سرعت جریان مانیتور:	48 لیتر در ثانیه
سرعت جریان پمپ:	60 لیتر در ثانیه	فرمان:	LHD یا RHD
برجسته کردن:	fire service truck,foam fire truck , foam fire truck

Rescue Fire Truck howo 4X2 emergency fire fighting truck with 5tons crane

Product Description

1.rescue fire truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of fire trucks,rescue fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) rescue fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

Specifications of howo rescue fire truck

Item	Unit	Parameter
Overall dimensions	mm	9135x2500x3600
GVW	kg	19850
Curb weight		11890
Water tanker	L	6000
Wheel base	mm	4600
F/R track base		2022/1830
Approach/departure angle	°	14/14
Exhaust/hp	ml/kw	9726/247
Horse power		336hp
Max speed	km/h	85
Tire specification	12R22.5,6pcs with one spare
Engine Model	WD615.69		Emission standard	Euro II
Cabin	left hand drive,2+4
Equipment	◆ Water Tank 6000L and foam 2000L ◆Fire pump:CB20.10/30.60 flow: 60L/s diversion time≤50s (Pressure: 1.0Mpa) ◆Fire monitor: PL48-64D flow: 48-64L/s range: water≥60m (Pressure: 1.0Mpa-1.2Mpa) ◆Power takeoff. Rescue System: 1) Lifting light system Main light:4X1000W Lifting height:7.6M Gas pump:AC220V Electric control box:AC380V wired remote contol 2) Hydraulic crane system Max. lifting capacity:5000kg Max. lifting torque:6ton.m Max. working range:5.8M Max. lifting height:7.4M Max. span of landing legs:3540m.m 3) Front electric winch Voltage:24VDC electric current:240A pulling capacity:8000khf(3629kg) speed:5.6m/min 4) Generator: Voltage:380V Power:10KV/A Powered by electrically or manually

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of rescue fire truck I can order from your company?

A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied rescue fire truck to any overseas companies?

A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
