12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning

تصویر بزرگ : 12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW / Chengli
گواهی:	CCC,ISO,
شماره مدل:	CLW5100ZYST3

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

ماده جعبه:	کربن فولاد Q235B	برند کامیون:	دانگ فنگ کینگ ران
جعبه دنده:	Fast 8 Forward & 1 Reverse	لاستیک:	9.00R20، 10.00R20
محور:	محور جلو 5 تن و محور عقب 10 تن	هدف:	جارو جاده
رفتگر:	4 قطعه، 2 قطعه در هر طرف	مخزن آب:	4000 پوند
مخزن زباله:	8000Liter	موتور کمکی:	موتور کامینز 140 اسب بخار
برجسته کردن:	mechanical sweeper truck,street cleaner truck , street cleaner truck

12cubic meter Combined Road Cleaning Sweeper Truck with Vacuum Sweeping & Water Cleaning

Product Description

12cubic meter Combined Road Cleaning Sweeper Truck with Vacuum Sweeping & Water Cleaning

Best Choice for Road Sweeping with both Garbage Tank & Water Tank
Garbage Tank: DN100 Suction Hose with 2 wheels Sunction Pan.
Water Tank: with Water Filter & Level Gauge.
Auxiliary Cummins Engine 140HP to Supply Power for the whole system.
Wind Suntion System to suck up the garbage.
Sweeping System: 4 Brush totally, 2 Brush at each side

Specifications of12cubic meter Combined Road Cleaning Sweeper Truck

12CBM Road Sweeper Truck
Item No.		Parameters
Overall Dimension		8090 x 2470 x 3050 mm
Curb Weight		9750 kg
Loading Weight		6055 Kg
Wheel Base		4475 mm
Front/rear Tread		1430 / 1960 mm
Approach/Departure Angle		20 / 12 degree
Cabin		Dongfeng Kingrun, Left Hand Driving, with Air Conditioner, Electrical Window, Central Lock.
Engine		Cumins Diesel Engine, 190HP, 5.193Liter, 4 Cylinder in Line, Turbo Charge, Water Cooling
Gear Box		FAST 8 Forward Gear & 1 Reverse Gear,
Brake		Pneumatic Brake
Steering Gear		Hydraulic Power Steering
Tire		9.00R20, 6 Piece with 1 Spare
Fuel Tank		160 Liters
Sweeping System
Dust Bin	8 m3		Water Bin	4 m3
Material of Both Bin	Stainless Steel		Engine	Cummin B140, 140HP
Brush Quantity	4 Pieces		Brush Diameter	900mm
Work Width	3.0-3.5 meters		Working Speed	3-15 km/h
Dust Bin Tipping System	Hydraulic Tipping		Dust Bin Tipping Angle	More than 40 degree
Dust Cleaning Percentage	90-95%		Maximum Capacity	16,000 - 64,000 m2/h
Sucking Object Diameter	less than 50mm (coal)		Max Truck Speed	90 km/h
Function Specification: 1. All Controlling System are Inside the Cabin Easy for Handling. 2. All Stainless Steel Dust Bin & Water Bin. 3. Separated Engine Support Hydraulic Pump & Suction Machine. 4. Hydraulic Pump Control Left & Right Brush Can Work Separately or Simultaneously. 5. Left & Right Brush System are Patented by Chinese Government for Avoiding the Obstacle. 6. Major Hydraulic Parts are Imported Good Quality parts. 7. Water Spraying System to Control Dust on Road.

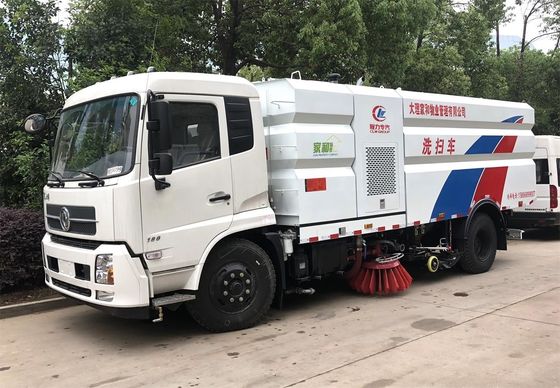

Product Photos

12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 0

12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 1

12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
