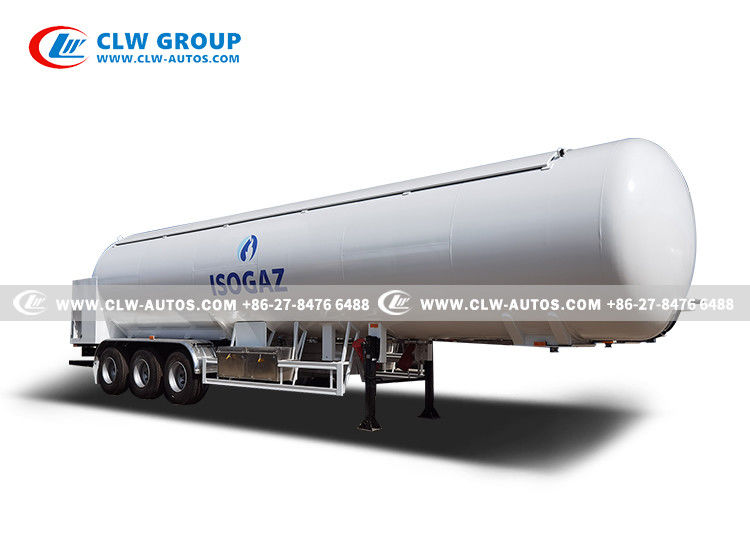

30tons Butane Propane Gas Tanker Trailer With Pump And Flow Meter
Product Description:
1. 12990*2500*3990 overall dimensions
2. 25tonns tank volume with Q345 carbon steel tank material
3. 1.61 design pressure and 2.22 Hydraulic Test pressure
4. Jost outrigger, 3*13T BPW axles
5. lpg accessories: Manhole, Safety Valve, Level Gauge, Emergency Cut-off Valves, Ball Valve,Liquid Gauge,Thermometer, Pressure Gauge
Application range:
--It is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
--We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
--Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories: ROCHESTER level gauge, volume and mass flow meter(LC or Neptune brand), sun shelter, lpg pump, lpg dispenser machine, filling hose
--Quick in and flange type liquid or vapour phase
--FUWA, L1, YORK, BPW axles
Factory Specification of lpg gas tanker trailer
| VESSEL |
| Water capacity of Tank |
59.5CBM |
| Overall Dimensions(L*W*H) |
12990*2500*3990mm |
| Tank Dimensions(Inner Diameter*thickness*Length) |
2478*12*12781mm |
| Estimated Tare Weight (kg) |
15650 |
| Payload(kg) |
25000 |
| Total Weight(kg) |
40650 |
| Wheelbase(mm) |
7230+1300+1300 |
| Loading medium |
Liquefied Petroleum Gas (propane) |
| Fluid Property |
Flammable |
| Design Temperature |
-19 ºC~+50 ºC |
| Design Working Pressure |
1.61 Mpa/16.1 Bar |
| Hydraulic Testing Pressure |
2.12 Mpa/ 21.2 Bar |
| Corrosion Allowance(mm) |
1.00 |
| Weld Joint Factor |
1 |
| Major Tanker Materials and Thickness |
Tanker body: Q345,12mm, |
| End plate:Q345R,12mm,double ellipse |
| Valves and fittings |
| Emergency Shut-off Valves |
Model |
Vapour phase |
QGJ43F-2.5-8 |
| Liquid phase |
QGJ43F-2.5-8 |
| Size |
Vapour phase |
DN80 ball valve with ACME 3 "l / 4 connection + plug |
| Liquid phase |
DN80 ball valve with ACME 3 "l / 4 connection + plug |
| Type |
Mechanical operated |
| Shut off time |
≤10 S |
| Melting-close time |
75±5 |
| Safety Valve |
Model |
A412-25-16 |
| Type |
Build-in |
| Nominal pressure |
2.5Mpa/25 Bar |
| Valve base throat Diameter |
53 mm |
| Curb discharge pressure |
≤1.93 |
| Level gauge |
Float-ball with measuring range 50~2475mm |
| Pressure Gauge |
YN-100T |
| Thermometer |
WTQ280 |
| Kingpin |
| 2" JOST king-pin,suitable for 4X2 or 6X4 truck head |
| Fabrication&Testing |
| Heat Treatment |
Overall treatment in a furnace,600ºC to 640 ºC |
| Flaw Detection of All Plate |
100% Flaw detection |
| Radio graphic testing of welding lines |
100% |
| Air leakage test for piping and valves |
100% |

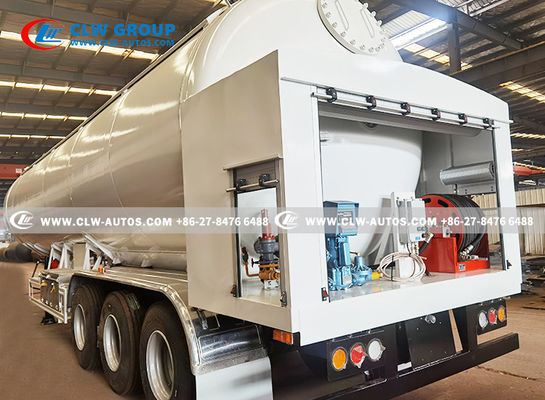

Reference photos
Sun shelter on top of 30 tonnes gas road tanker to avoid high temperature

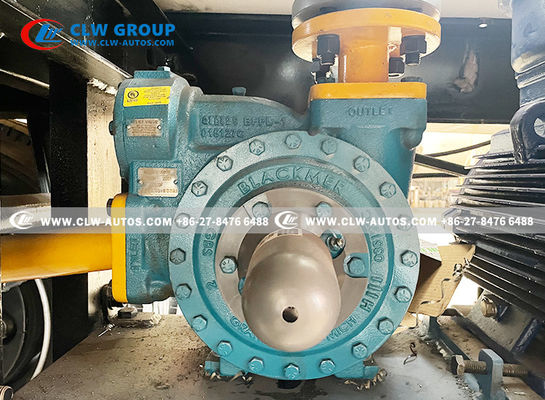

3" or 2" blackmer vane pump with 7.5HP Ex-proof motor for 30 tonnes gas road tanker

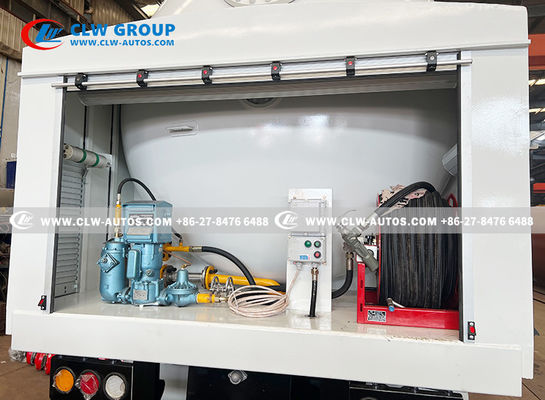

USA neptune flow meter and 40 meters filling hose for 30 tonnes gas road tanker
Successful case
After- sale service
a. Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
b. After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
c. After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
