Foton Aumark RHD 8000L Carbob Steel Water Tanke Truck For Spraying
Chassis parameters:
1. Chassis brand: Foton Aumark 4x2 right hand driving
2. Cabin: single row cabin
3. Engine: Cummins diesel engine 145hp Euro 3 emission standard
4. Front/rear loading weight: 2.5t/6t
5. Gearbox: 6 speed forward with 1 reverse, manual type
Upper body parameters:
1. Tank volume: 8cbm, 8m3, 8000liters, 8000L
2. Tank material: High Tension Steel Q235/Q345,stainless steel 304 for option
3. Sprinking Width: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump.
Features:1. The water tank truck adopts Shacman chassis for loading, equipped with tanks, loading tank assembly, self-suction pump, power rotation system, piping system and sprinkler assembly.
2. It is equipped with the functions of adjusting sprinkler to change sprinkling directions and angles to adapt different demands.
3. Antiaircraft gun can be used for urban and rural plants, and fire emergency.
4. The rear bottom is equipped with cylindrical nozzles, which can pour the dust fall from the middle sprinkler,
5. The top duckbill nozzles can irrigate the flowers and trees on both sides.
6. With the functions of spraying, pressing dust, high-low position spraying, and flushing guard bars and barrier belts.
7. With intelligent control system, drivers can complete various operations in the cab.
Product descriptions
| Vehicle model |
Foton AUMARK |
| Cabin |
Single row |
| Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
7400mm*2460mm*2500 |
| Wheel base(mm) |
3800 |
| Weight data |
Curb weight(kg) |
5800 |
| Gross vehicle weight(kg) |
15000 |
| Persons in cab |
2 |
| Whole vehicle main performance |
Max. speed(km/h) |
90 |
| ENGINE |
Model |
F3.8S3141 |
| Emissions standards |
Euro3 |
| Displacement(L) |
3.76 |
| Rated Power(kw/rpm) |
105 |
| Max torque (N.m/rpm) |
450 |
| Gearbox |
Model |
6TS55 |
| Front axle |
Type/Mainreducetion ratio |
2.5T |
| Rear axle |
Type/Mainreducetion ratio |
6T |
| Brake system |
Service brake |
Drum pneumatic braking |
| Parking brake |
Central drum brake |
| Auxiliary brake |
Engine exhaust brake |
| Wheels and tyre size |
6+1(8.25R16) |

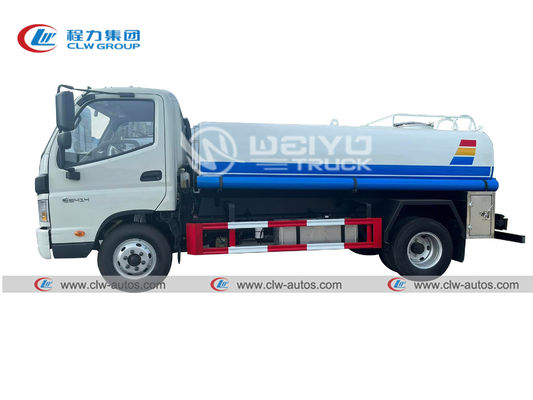

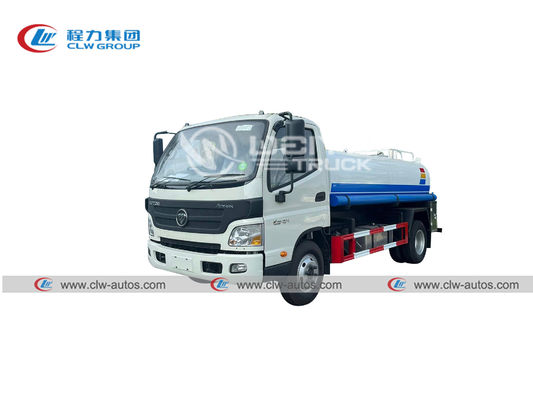

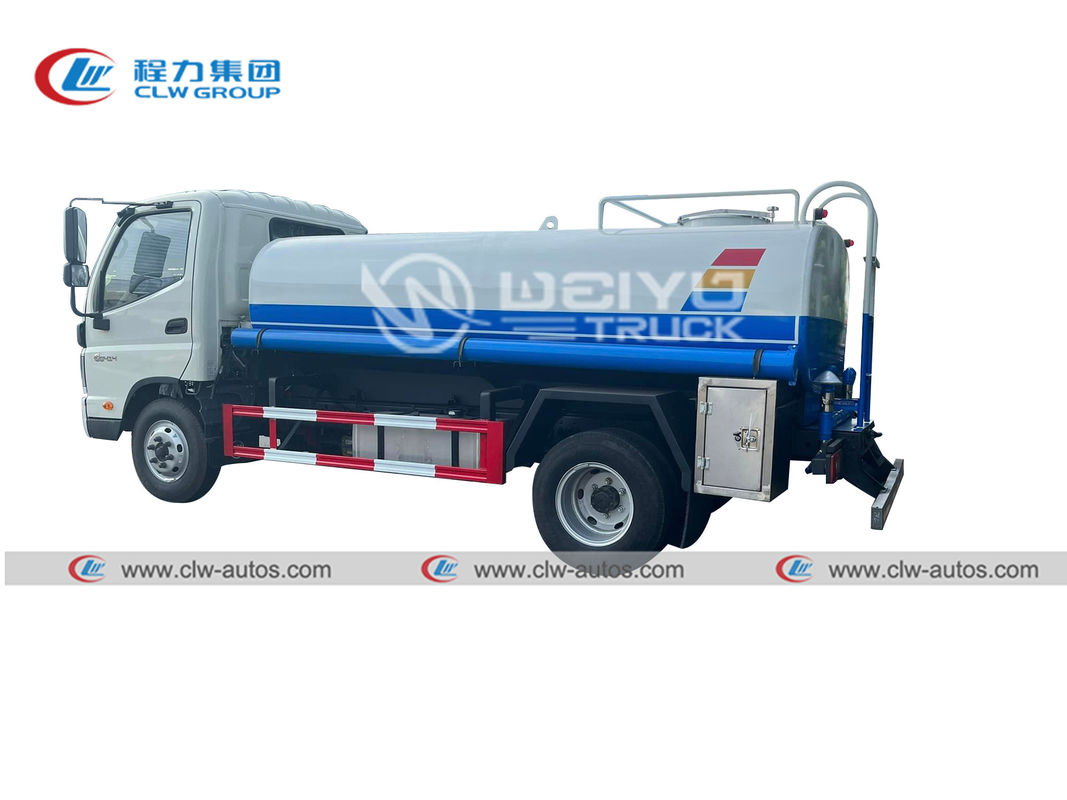

Reference photos for water bowser truck
Main exporting countries
1. Asia: Nepal, Pakistan, India, Indonesia etc.
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.
3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.
4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.
Water Truck Diagram:
Working Show
Company certificate
Successful case
After-sale service
a. Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
b. After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
c. After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
