14m3 14cbm Garbage Collection Truck Waste Compression Waste Truck

تصویر بزرگ : 14m3 14cbm Garbage Collection Truck Waste Compression Waste Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC ISO
Model Number:	CLW2034RUE

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Driving model:	LHD, Left Hand Drive	Chassis Brand:	Optional Sinotruk, Dongfeng, Foton, Shacman, Isuzu Garbage Compactor Truck
نوع سوخت:	موتور دیزل	مواد:	کامیون کمپرس زباله فولاد کربنی
Volume:	14cbm 14m3 10tonnes	خدمات پس از فروش ارائه شده است:	پشتیبانی شخص ثالث در خارج از کشور در دسترس است، پشتیبانی آنلاین، پشتیبانی فنی ویدیویی، قطعات یدکی را
نوع کامیون:	رول بازیافت لودر عقب کمپکتور، کمپرسور زباله، کمپرسور زباله	نام:	کامیون کمپکتور زباله، کامیون کمپرس زباله جدید، کامیون کمپرس زباله برای فروش، کامیون بازیافت کمپرس زب
Loading Capacity:	10tonnes,10t,10mt,10tons	Wheel Base:	5000mm Garbage Compactor Truck
برجسته کردن:	14m3 Garbage Collection Truck,Waste Compression Garbage Collection Truck , Waste Compression Garbage Collection Truck

Product description:
1. Frame structure
2. Sealing treatment to eliminate secondary pollution
3. Electric-hydraulic joint control
4. Hydraulic lift safety circuit
5. Automatic and manual operating system
6. Automatic control of engine power output
7. Advanced electronic control system
8. Convenient operation control
9. A variety of bucket (bucket) mechanisms
10. High quality imported components

The garbage compactor truck is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to municipal applications where large amounts of mixed industrial and domestic waste is to be collected.

Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder fully sealed. It can compact and dump the garbage automatically. Sewage will flow in the compartment completely to avoid re-pollute during transportation.

As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 25cbm.

Product specifications :

Cabin	Driving type 4x2
	with A/C. Left/Right Hand Drive.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		835024903250mm
	Wheel base (mm)		5000
	Approach/Departure angle(°)		24/16
Weight in KGS	Tare Weight		9850
	Front axles loading capacity		5000kg
	Rear axles loading capacity		10000kg
Max. driving speed(km/h)			90
Engine	Brand		Cummins
	Type		4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		190HP
	Emission standard		Euro3
Gearbox	8 forwards &1 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Tire	10.00R20, 6 pieces with one spare tire
Compression garbage box body system
Body Volume		14 m3
Material Thickness		5 mm
Cycle Time of Filling(S)		≤40
Lifting Time of Filler(S)		8-10
Time of Discharging		≤60
Working Pressure(MPA)		16
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

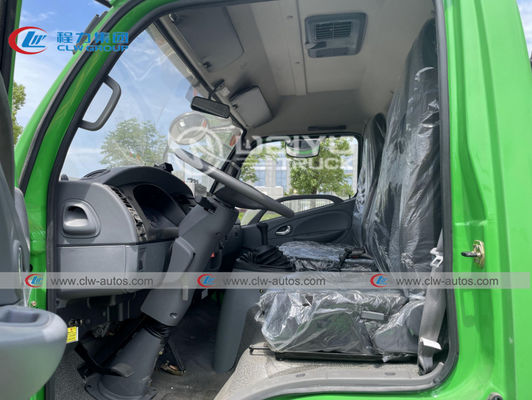

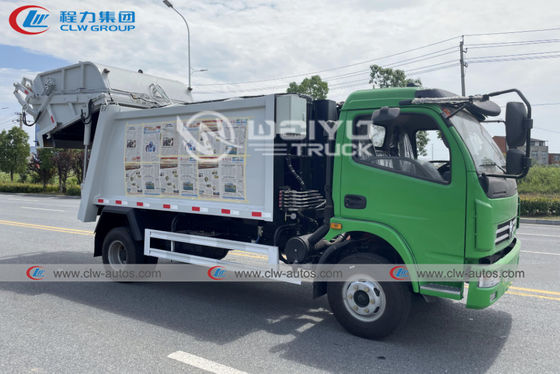

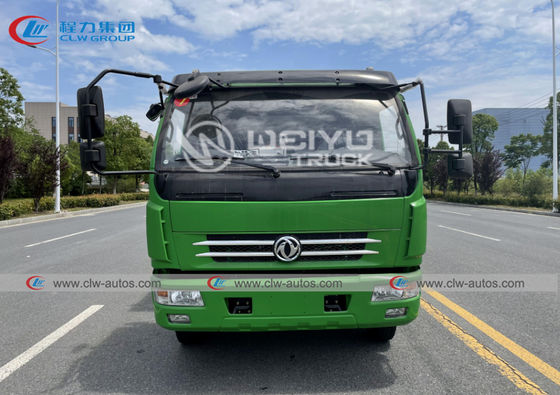

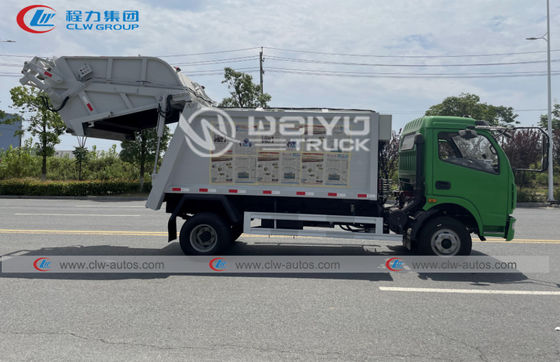

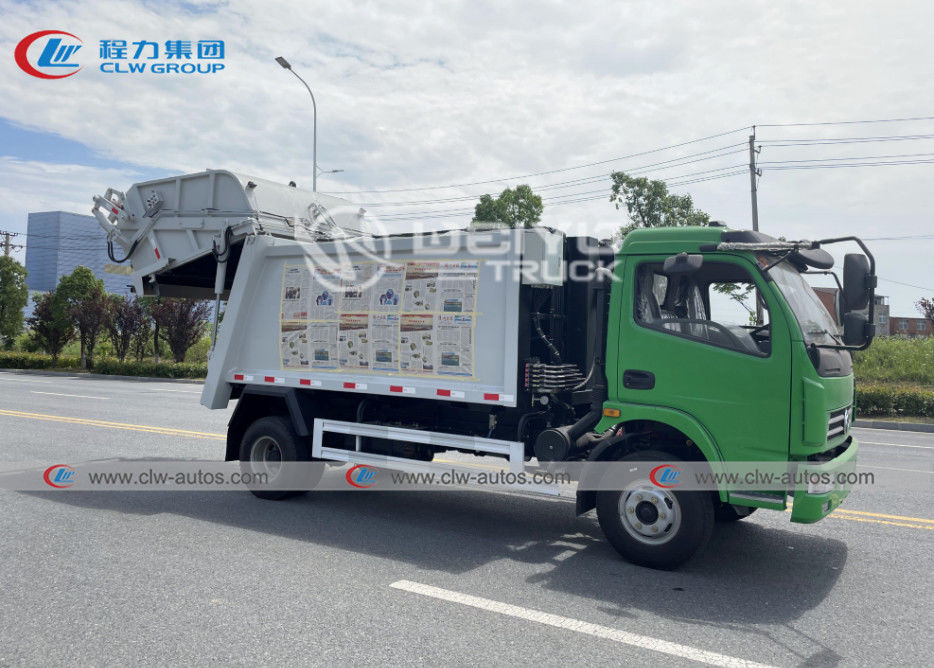

Reference photos:

14m3 14cbm Garbage Collection Truck Waste Compression Waste Truck 0

14m3 14cbm Garbage Collection Truck Waste Compression Waste Truck 1

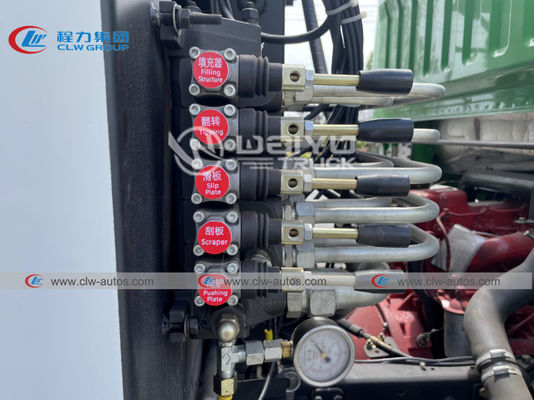

Detailed photos:

14m3 14cbm Garbage Collection Truck Waste Compression Waste Truck 2

Our advantages:

Certificate: ASM, ISO, BV, SGS, CCC etc.
More than 30 independents workshops for different types of trucks
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians and about 8000 staffs
800kinds of trucks and semi-trailers with various functions
20 years wholesale experience
Turnover 250 million and Export 20million annually
More than 100,000 trucks and semi-trailers annually.
Truck Sold to 90 countries
Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
We can handle production of bulk order water trucks of tender and government purchase in required time
