6x4 Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck

تصویر بزرگ : 6x4 Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO
Model Number:	CLW5941

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	USD24925-31852
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C ، T/T ، D/A ، D/P ، Western Union ، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	فولاد کربن Q235	ضخامت:	5 میلی متر
سوخت:	دیزل	Driving Type:	6x4, left/right hand driving
پمپاژ:	نام تجاری معروف چین / برند بین المللی	ارتفاع مکعب:	7 متر
محدوده واتر کانن:	30 متر	عرض پاشیدن:	14 متر
ویدئوی عملیاتی:	بله	استفاده از کتابچه راهنمای کاربر:	بله
اسپری جلو و عقب:	بله	گارانتی:	یک سال
لوگو:	طبق درخواست مشتری
برجسته کردن:	6x4 Mobile Water Tank Transportation Truck,20tons Water Sprinkler Truck , 20tons Water Sprinkler Truck

6x4 Driving Type Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck

Product specification:

1. Optional chassis brand of portable water truck: Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump.

Product Features:

1. The water tank truck adopts chassis for loading, equipped with tanks, loading tank assembly, self-suction pump, power rotation system, piping system and sprinkler assembly.
2. Equipped with the functions of adjust sprinkler to change sprinkling directions and angles to adapt different demands. Antiaircraft gun can be used for urban and rural plants, and fire emergency.
3. The rear bottom is equipped with cylindrical nozzles, which can pour the dust fall from the middle sprinkler, and the top duckbill nozzles can irrigate the flowers and trees on both sides.
4. With the functions of spraying, pressing dust, high-low position spraying, and flushing guard bars and barrier belts.
5. With intelligent control system, drivers can complete various operations in the cab.

Tank body features:

The structure of the tank body of the sprinkler is oval or square.
Made of high-quality carbon steel from Wuhan Baosteel
Use a large rolling machine to form at one time,
Automatic welding process, more beautiful appearance and strong sealing performance.
The tank body of the whole vehicle has 2-3 chambers, and there are through holes at the lower end of the middle partition plate.
The tank is equipped with anti-swing and wave-proof baffles, and the baffles in the warehouse have anti-wave effect to reduce the impact of the liquid in the tank when the car is running.
The exterior is coated with anti-rust paint and decorative paint.

Product specifications

Items	Descriptions	Specifications and Types
General	Truck Name	20000L Water Bowser Truck
	Drive Type	6*4
	Gross Weight(kg)	25000
	Curb Weight (kg)	10805
	Approx.Overall Dimensions (mm)	9980×2500×3350
Engine	Engine Model	ISDe245 40
	Engine Brand	Cummins
	Fuel Type	Diesel
	Power	180kw/245HP
	Emission Standard	Euro V
	Displacement(ml)	6700
	Engine Type	6 cylinders in line, inter cooler, supercharged diesel engine
Chassis	Chassis Brand	Dongfeng
	Chassis Model	JK6
	Cabin	One row with single sleeper, titled, flat roof, with A/C
	Tire No.	10+1
	Tire Specification	11.00R20 All Steel tire
	Axle No.	3
	Steering Wheel	Left hand drive with power-assisted
	Gear Box	FAST 8 speed forward with 1 reverse, manual
	Brake	Air brake
Tank	Tank Volume(L)	20,000
	Tank Shape	Rectangular
	Tank Material	Carbon Steel, 5mm thick
Performance	Spraying Width(m)	14
	Canon Range(m)	28
Equipment	1.Front flushing , side spraying, rear sprinkling nozzle and platform with water cannon and water gun. 2.The water cannon can be rotated 360 degree. The water flow can be adjusted to heavy, medium, light rain, drizzle and mist. 3.Water suction depth is about 7m.

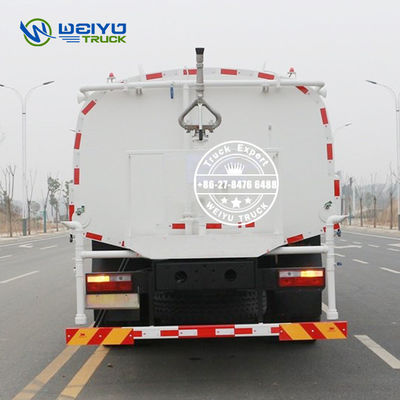

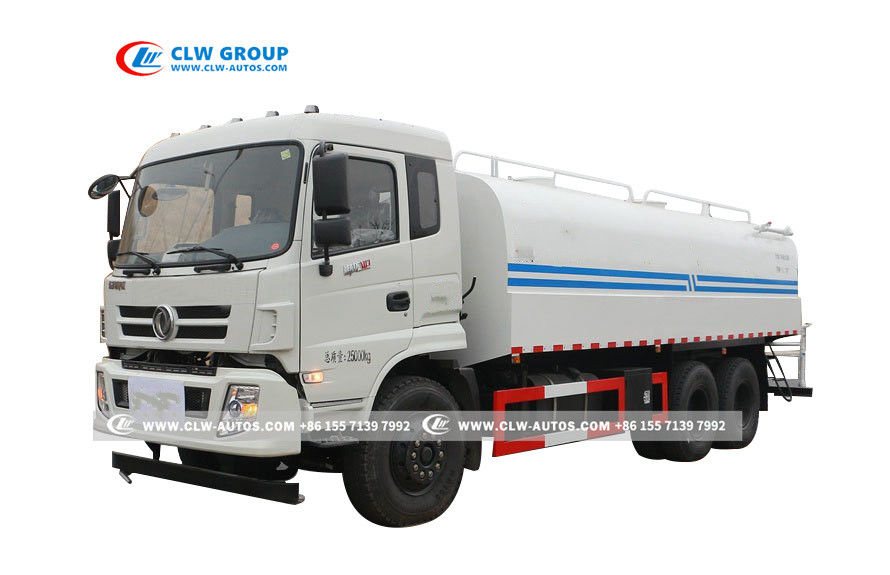

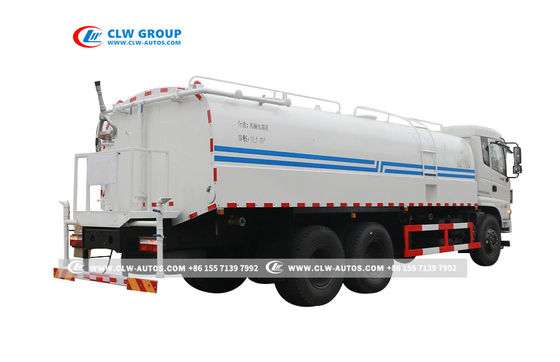

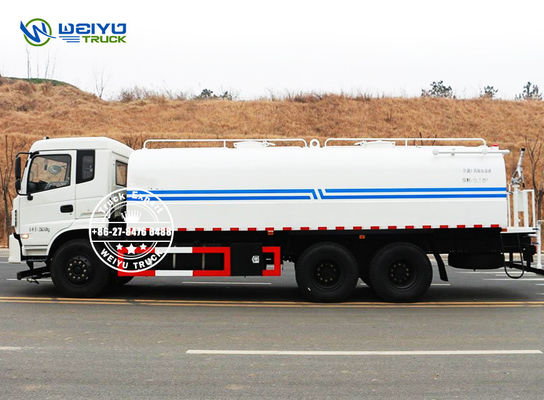

1. Reference photos

6x4 Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck 0

Water Truck Diagram

Working Show

Truck Details

Water bowser truck production line

6x4 Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck 6

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
